IC200MDL940J
IC200MDL940J

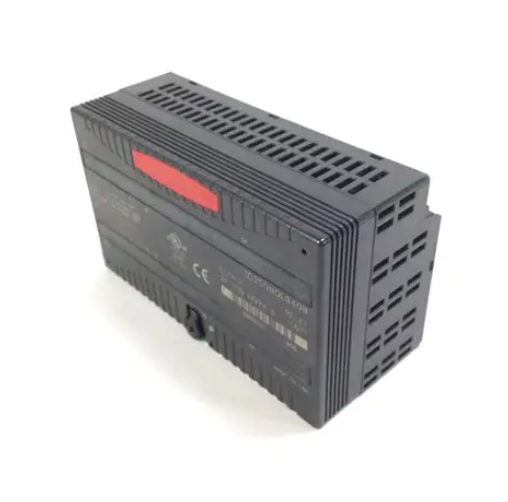

IC200MDL940J 离散输出模块 内置的通道间隔离

型号:IC200MDL940J离散输出模块内置的通道间隔离【产品详情】品牌:GEFanuc产品编号:IC200MDL940产品类型:VersaMax分立式输出模

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

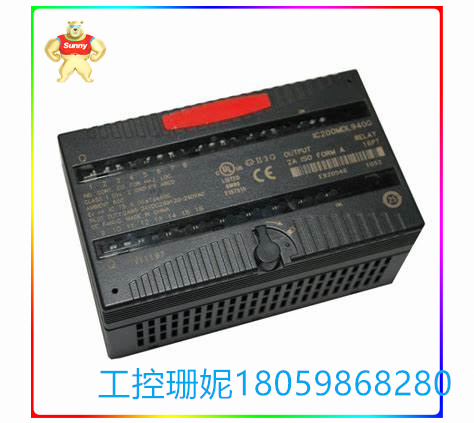

型号:IC200MDL940J 离散输出模块 内置的通道间隔离







【产品详情】





品牌 : GE Fanuc

产品编号: IC200MDL940

产品类型 : VersaMax 分立式输出模块

VersaMax 分立式输出模块,继电器 2.0 A/点 隔离型 A,16 点

生命周期状态 : Active

输出电压:0-125 VDC,5/24/125 VDC 标称值;0-265 VAC (47-63 Hz),120/240 VAC 标称值

积分数 : 16

每点负载电流:5-265 VAC 为 2.0 A,5-30 VDC 为 2.0 A,31-125 VDC 为 0.2 A

输入和输出响应时间-开/关(ms):10.0/10.0

每个公共点数 : 孤立点

外部电源:0-125 VDC,标称 5/24/125 VDC;0-265 VAC (47-63 Hz),120/240 VAC 标称值

负载电流:每点最小 10 mA;2.0 A,最大 5-265 VAC(电阻);最大 5-30 VDC 时为 2.0 A(电阻);0.2 A,最大 31-125 VDC(电阻)

5V 背板电流消耗 (mA) : 490 (最大值)

LED 指示灯:每点一个 LED 显示单独的点 ON/OFF 状态(逻辑侧)。FLD PWR LED 指示存在现场电源。OK LED 指示背板电源已接通。

尺寸(长x宽x高):5 cm x 11 cm x 6.68 cm,不包括托架或配套连接器的高度

IC200MDL940 是一个继电器输出模块,是艾默生自动化 VersaMax I/O 平台的一部分,该平台以前由 GE Fanuc 提供。该模块带有十六 (16) 个独立隔离的常开 (N.O.) A 型继电器输出触点,额定输出电压为 0 至 125VDC,标称输出电压为 5/24/125VDC,额定输出电压为 0 至 265VAC(47 至 63Hz),标称输出电压为 120/240VAC,输出触点额定值为 2.0 安培。通过内置的通道间隔离,每个触点输出可以连接到不同的电压源,为连接到输出通道的相应电气设备供电。该模块的嵌入式继电器是固定线圈、移动电枢型,触点由银合金制成。


该模块可用于为继电器线圈、螺线管驱动仪表、指示灯和其他仪表等输出设备供电。它不附带缓冲电路或内部保护保险丝,但用户可以相应地安装外部保护。


该模块不会显示输出泄漏电流,因为触点输出在未激活时处于打开状态。此外,每个输出通道的响应时间均为 10 ms,专门用于开路到关闭和闭合到开路触点转换。与感性负载一起使用时,每个输出触点的最大开关频率为每分钟 20 个周期。每个输出通道都配有单独的通道状态指示器,用于描述每个通道的运行状态。


该IC200MDL940的最大背板电流消耗为 490mA,需要额定值为 0 至 125VDC、标称值为 5/24/125VDC 和 0 至 265VAC(47 至 63Hz)且标称电源电压为 120/240VAC 的外部电源。




型号:IC200MDL940J 离散输出模块 内置的通道间隔离




英文介绍





Brand: GE Fanuc

Product number: IC200MDL940

Product Type: VersaMax discrete output module

VersaMax split output module, relay 2.0A/point isolated type A, 16 points

Life cycle status: Active

Output voltage: 0-125 VDC, 5/24/125 VDC nominal value; 0-265 VAC (47-63 Hz), 120/240 VAC nominal values

Number of points: 16

Load current per point: 2.0A for 5-265 VAC, 2.0A for 5-30 VDC, 0.2A for 31-125 VDC

Input and output response time - On/Off (ms) : 10.0/10.0

Each common point: isolated point

External power supply: 0-125 VDC, nominal 5/24/125 VDC; 0-265 VAC (47-63 Hz), 120/240 VAC nominal values

Load current: min. 10 mA per point; 2.0A, Max 5-265 VAC (resistor); 2.0 A (resistance) at maximum 5-30 VDC; 0.2A, Max 31-125 VDC (resistance)

5V Backplane current consumption (mA) : 490 (Max)

LED indicator: One LED for each point shows a separate point ON/OFF status (logical side). FLD PWR LED indicates the presence of an onsite power supply. OK LED indicates that the backplane is powered on.

Dimensions (L x W x H) : 5 cm x 11 cm x 6.68 cm, not including the height of the bracket or matching connector

The IC200MDL940 is a relay output module that is part of Emerson Automation's VersaMax I/O platform, which was previously provided by GE Fanuc. The module features sixteen (16) independently isolated normally open (N.O.) type A relay output contacts with rated output voltages of 0 to 125VDC, nominal output voltages of 5/24/125VDC, and rated output voltages of 0 to 265VAC (47 to 63Hz). The nominal output voltage is 120/240VAC and the output contact rating is 2.0 amps. With built-in inter-channel isolation, each contact output can be connected to a different voltage source to power the corresponding electrical device connected to the output channel. The embedded relay of the module is of fixed coil, mobile armature type, and the contacts are made of silver alloy.


The module can be used to power output devices such as relay coils, solenoid drive instruments, indicators and other instruments. It does not come with a buffering circuit or internal protection fuse, but users can install external protection accordingly.


The module does not display output leakage current because the contact output is on when not activated. In addition, each output channel has a response time of 10 ms and is specifically designed for open-to-close and closed-to-open contact transitions. When used with inductive loads, the maximum switching frequency per output contact is 20 cycles per minute. Each output channel is equipped with a separate channel status indicator that describes the operating status of each channel.


The IC200MDL940 has a maximum backplane current consumption of 490mA and requires external power supplies rated 0 to 125VDC, nominal 5/24/125VDC and 0 to 265VAC (47 to 63Hz) with a nominal supply voltage of 120/240VAC.




型号:IC200MDL940J 离散输出模块 内置的通道间隔离





其他型号推荐







TEWS TPMC871-10LENZE E84AHWMC1534V-V003ICS TRIPLEX T8110BMVME2100  MOTOROLAST2600GXH25A   TOSHIBA
TRICONEX 3721E111A12X3N CUTLER-HAMMERTDI   142511-51198651-100  SPS5785MVME6100ST31276A   PLC
ABB 5SHY35L4503 3BHB004693R0001RELIANCE E372-013-404TRICONEX 3009MVME7100    MOTOROLASTAR-RS 256  PLC
ABB CAI04CUTLER-HAMMER E511A12X3NTRICONEX 4351BNFT-801RM3-S   ddkSTEP-PS1AC5DC2 2320513  PLC
ABB CI871K01 3BSE056767R1ASTM E1043ABB HIEE200130R0002 AFC094AE02NI   SCXI-1104CSTRADUS 405 VORTRAN
ABB DI04E2384-E4-1100 EASYEMERSON A6370DNI SCXI-1000SV9343 110   RITTAL
ABB DO810 3BSE008510R1Okuma E4809-770-065-B E4809770065BGE VMIVME-7807-411001 VMIVME-7807NI SCXI-1100SVFH8-H3-DSP*ANI SERVOLAND
ABB GFD233A 3BHE022294R0103EASYGEN 3200ABB CI522A 3BSE018283R1NI SCXI-1160SVM1608SER  PLC
ABB GFD233A103 3BHE022294R0103EASYGEN-3500-5ABB CI534V02 3BSE010700R1NU8976a HIER466665R99 -1T LA23GCKC-P500A
ABB KP2500EB401-10 YOKOGAWAABB CI541V1 3BSE014666R1NU8976A99 HIER466665R0099 HIEE320693R0001  -6Opti T60-1001-C8-1A
ABB KP3000Enya EB-700ABB CI535V30 3BSE022162R1P92 P9220436070H -1T70-QQU-AA0-LK   KEBA
ABB PCD232A 3BHE022293R0101EC10-2416BRA   PLCABB CS513 3BSE000435R1P0904AK   Kollmorgen T126-0001 REV
