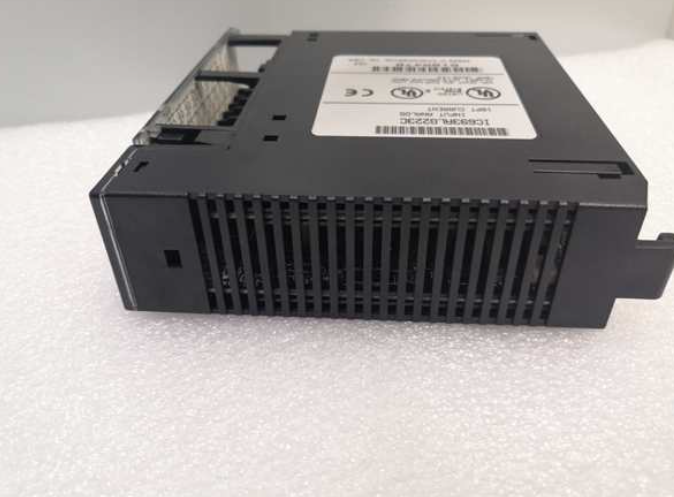

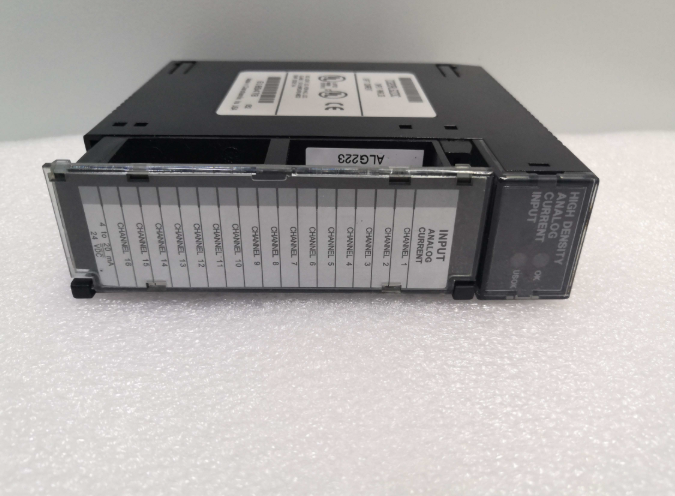

☆型号：IC693ALG223D 16通道模拟电流输入模块 获得高低警报
【产品详情】
IC693ALG223 是 PACSystems 系列 90-30 RX3i 模拟电流输入模块，提供 16 个通道。 该模块的 16 个独立和单端通道可配置为以下三个范围中的任何一个：4 至 20 mA、0 至 20 mA 或 4 至 20 mA 增强型。每个范围都可以获得高低警报。在增强型范围内，IC693ALG223模块可以设置为低报警限值，以在 4 至 20 mA 应用中通过开路故障检测来检测输入电流;用户也可以设置高警报警报。此外，该模块还报告状态，包括 CPU 的电源状态。IC693ALG223可用于 RX3i 或 90-30 系列系统中提供串行连接器的任何 I/O 插槽。
IC693ALG223 是一个单插槽模块，可安装在 90-30 系列 5 插槽或 10 插槽底板的任何插槽上。根据安装的控制器，允许的IC693ALG223实例数会有所不同。对于 311 型、313 型和 323 型系统，最多兼容四 （4） 个模块实例。对于 331 型系统，八 （8） 个模块，12 个模块用于 340 型和 341 型系统，51 个模块用于 351 型和 352 型系统。
该IC693ALG223具有 12 位分辨率，所有 16 个通道的更新速率为 13 毫秒，绝对精度为 ± 满量程的 0.25% @ 25 摄氏度（77 华氏度）：在指定工作温度范围内±满量程的 0.5%，线性度为 < 4 至 20 mA范围内为1 LSB（4至20 mA范围内），100 μA至20 mA范围内<1 LSB（0至20 mA和4至20 mA）增强的范围。该模块在现场侧和逻辑侧之间具有 1500 伏隔离能力。
☆型号：IC693ALG223D 16通道模拟电流输入模块 获得高低警报
【英文介绍】
The IC693ALG223 is a PACSystems series 90-30 RX3i analog current input module with 16 channels. The module's 16 independent and single-ended channels can be configured in any of the following three ranges: 4 to 20 mA, 0 to 20 mA, or 4 to 20 mA enhanced. High and low alarms are available for each range. In the enhanced range, the IC693ALG223 module can be set to a low alarm limit to detect input current through open fault detection in 4 to 20 mA applications; Users can also set high alert alarms. In addition, the module also reports the status, including the power status of the CPU. The IC693ALG223 can be used in any I/O slot that provides serial connectors in RX3i or 90-30 series systems.
The IC693ALG223 is a single slot module that can be installed in any of the 5-slot or 10-slot baseboards of the 90-30 series. The number of IC693ALG223 instances allowed varies depending on the controller you install. For Type 311, Type 313, and Type 323 systems, up to four (4) module instances are compatible. For Type 331 systems, eight (8) modules, 12 modules for type 340 and Type 341 systems, and 51 modules for Type 351 and Type 352 systems.
The IC693ALG223 has a 12-bit resolution, an update rate of 13 ms for all 16 channels, and an absolute accuracy of ± 0.25% of full scale @ 25 degrees Celsius (77 degrees Fahrenheit) : 0.5% of ± full scale in the specified operating temperature range, 1 LSB (4 to 20 mA) in the linearity < 4 to 20 mA range, and <1 LSB (0 to 20 mA and 4 to 20 mA) in the enhanced range of 100 μA to 20 mA. The module has a 1500 volt isolation capability between the field side and the logical side.
