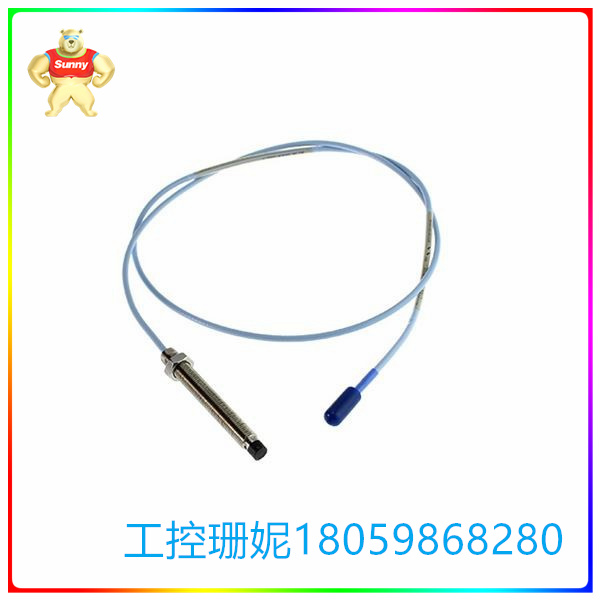

330905-06-14-10-02-00 接近传感器 转速表和零速度测量

☆型号：330905-06-14-10-02-00 接近传感器 转速表和零速度测量

【产品详情】

描述

3300 XL NSv*接近传感器系统适用于

离心式空气压缩机，制冷压缩机，工艺气体压缩机

以及其他安装要求严格的机器。3300 XL NSv

接近传感器系统包括:

3300 NSv探头

3300 NSv延长线

a 3300 XL NSv Proximitor*传感器

3300 XL NSv换能器系统的主要用途是

反孔，侧视或后视镜限制使用标准弯曲

内华达* 3300和3300 XL 5和8毫米传感器系统。它也是理想的

小目标应用，如测量轴上较小的径向振动

小于51毫米(2英寸)或轴向位置的平面目标小于15毫米(0.6英寸)。它

主要用于以下应用的流体膜轴承机

有小轴或缩小的侧视图的地方:

径向振动和径向位置测量

轴向(推力)位置测量

转速表和零速度测量

相位参考(Keyphasor*)信号

3300 XL NSv换能器系统的设计允许它取代3300

RAM传感器系统和3000系列或7000系列190传感器

系统。从3300 RAM系统升级到3300 XL NSv系统

使用现有的探头、延长线和带有3300 XL NSv的监控系统

Proximitor传感器。从3000系列或7000系列传感器升级

系统必须用NSv替换探头、延长线和近端传感器

组件。

3300 XL NSv换能器系统的平均比例系数为7.87 V/mm

(200mv /mil)，这是涡流传感器最常见的输出。它的。

增强的侧视图和小目标特性使其线性更短

范围比本利内华达3300 xl系列5和8毫米传感器系统。

与1.5 mm (60mils)的线性范围超过3000-的线性范围

190系列传感器系统

☆型号：330905-06-14-10-02-00 接近传感器 转速表和零速度测量

【英文介绍】

Description

The 3300 XL NSv* Proximity Transducer system is intended for use with

centrifugal air compressors, refrigeration compressors, process gas compressors

and other machines with tight installation requirements. The 3300 XL NSv

Proximity Transducer System consists of:

a 3300 NSv probe

a 3300 NSv extension cable

a 3300 XL NSv Proximitor* Sensor.1

The primary uses for the 3300 XL NSv Transducer System are for areas where

counter bore, sideview or rearview restrictions limit the use of standard Bently

Nevada* 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for

small target applications, such as measuring radial vibration on shafts smaller

than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It

is primarily used in the following applications on fluid-filmed bearing machines

where a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor*) signals

The 3300 XL NSv Transducer System design allows it to replace both the 3300

RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer

System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may

use the existing probe, extension cable, and monitoring system with 3300 XL NSv

Proximitor Sensor. Upgrades from the 3000-series or 7000-series Transducer

System must replace the probe, extension cable and Proximitor Sensor with NSv

components.

The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm

(200 mV/mil), which is the most common output for eddy current transducers. Its

enhanced side-view and small target characteristics give it a shorter linear

range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System.

With The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-

series 190 Transducer System
