IC3600TPSA1G1B 印刷电路板 提高重型涡轮机的可靠性和效率

☆型号：IC3600TPSA1G1B 印刷电路板 提高重型涡轮机的可靠性和效率

【产品详情】

IC3600TPSA1G1B是GE的Mark I或Mark II系列的组件。 这些系列是最初的 Speedtronic 燃气/蒸汽轮机管理系列，分别于 1969 年和 1973 年由通用电气发布。这两个系统都专注于创建一个易于使用的管理系统，该系统将利用当时可用的最新技术来提高重型涡轮机的可靠性和效率，无论涡轮机/涡轮机用于何种规模或复杂程度。Mark I/Mark II的设计主要集中在四个主要部分：控制、保护、排序和电源。虽然由于更新的 Speedtronic 系统（MKIV/MKV/MKVI）的发布，这些系统现在被认为已经过时，但 MKI 和 MKII 仍在许多地方的设施中使用。

IC3600TPSA1G1B是单相电源。该板上装有由 26 个独立金属引脚组成的通信设备。它有一个电位器，可用于校准电路。该板由七个不同材料的电容器组成，包括聚酯乙烯基（一个）、铝电解电容器（四个）和陶瓷电容器（两个），其中两个电解电容器标记为 25v 20 μf。这种材料的其他电容器来自 Sprague，标有 D46188 +85 摄氏度 34D 700μf 25 VDC。

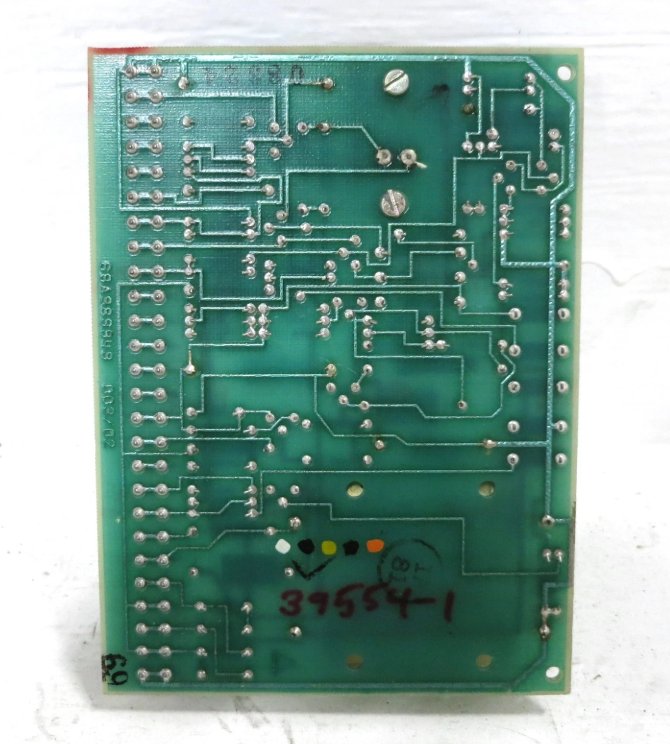

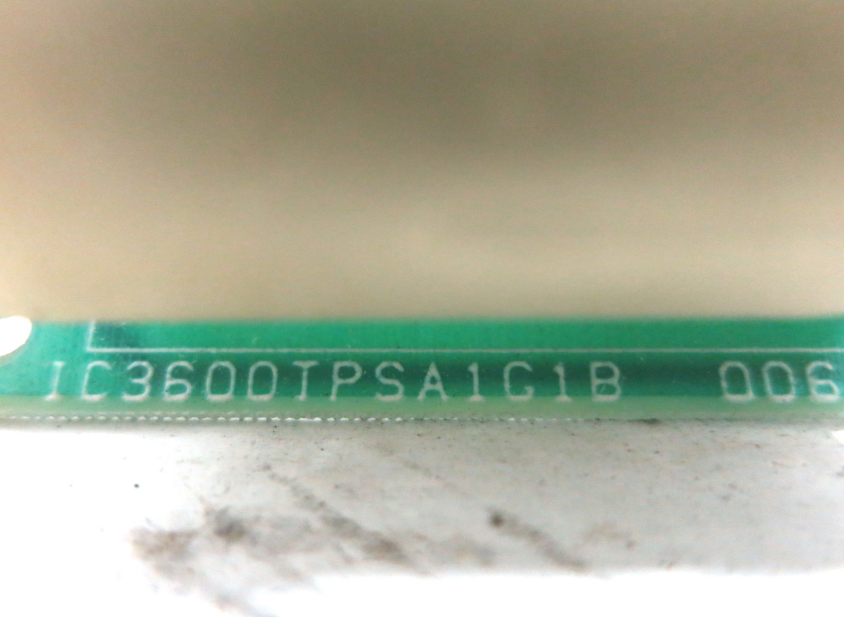

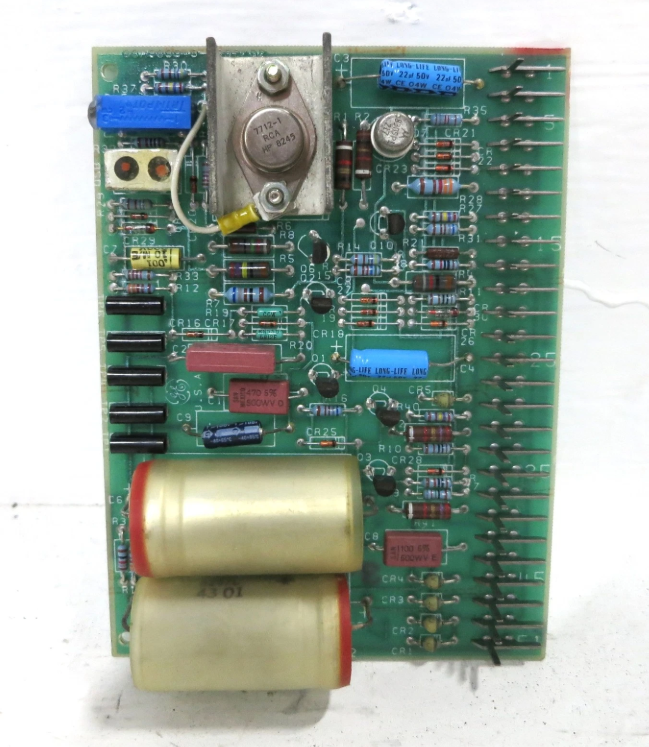

IC3600TPSA1G1B有十个晶体管。这包括安装在大型散热器中的RCA晶体管。该晶体管的表面布线连接到电路板的通孔元件。该板有几排电阻器和二极管，均垂直安装。该板还具有六个标记为 TP1 到 TP6 的组件。该板标有代码 68A988949 和 006/03。

☆型号：IC3600TPSA1G1B 印刷电路板 提高重型涡轮机的可靠性和效率

【英文介绍】

The IC3600TPSA1G1B is a component of GE's Mark I or Mark II series. These series were the original Speedtronic gas/steam turbine management series, released by General Electric in 1969 and 1973, respectively. Both systems are focused on creating an easy-to-use management system that will leverage the latest technology available at the time to improve the reliability and efficiency of heavy-duty turbines, regardless of the size or complexity of the turbine/turbine used. The design of the Mark I/Mark II focuses on four main parts: control, protection, sequencing, and power. Although these systems are now considered obsolete due to the release of newer Speedtronic systems (MKIV/MKV/MKVI), MKI and MKII are still used in facilities in many locations.

The IC3600TPSA1G1B is a single-phase power supply. The board is equipped with a communication device consisting of 26 individual metal pins. It has a potentiometer that can be used to calibrate the circuit. The board consists of seven capacitors of different materials, including polyester vinyl (one), aluminum electrolytic capacitors (four), and ceramic capacitors (two), two of which are labeled 25v 20 μf. Other capacitors of this material come from Sprague and are labeled D46188 +85 degrees Celsius 34D 700μf 25 VDC.

The IC3600TPSA1G1B has ten transistors. This includes RCA transistors installed in large heat sinks. The surface wiring of the transistor is connected to the through-hole element of the circuit board. The board has several rows of resistors and diodes, all mounted vertically. The board also has six components labeled TP1 through TP6. The board is marked with the codes 68A988949 and 006/03.
