☆型号:IC3600TFCU1D1C 印刷电路板 燃气/蒸汽轮机管理系统
【产品详情】
IC3600TFCU1D1C是GE的Mark I/Mark II组件。 MKI是GE的Speedtronic系列中的第一个燃气/蒸汽轮机管理系统,于1969年发布。MKII在四年后的1973年发布。这两个系统都使用了发布时可用的最新技术,并专注于创建可访问、易于使用、持久且可扩展的系统。这两个系统都由四个主要部分组成:控制、保护、排序和电源。这些部件中的每一个都设计为尽可能独立,并具有冗余备份,以提高整个系统的可靠性。MKI 和 MKII 现在都被认为已经过时,不再受通用电气支持。

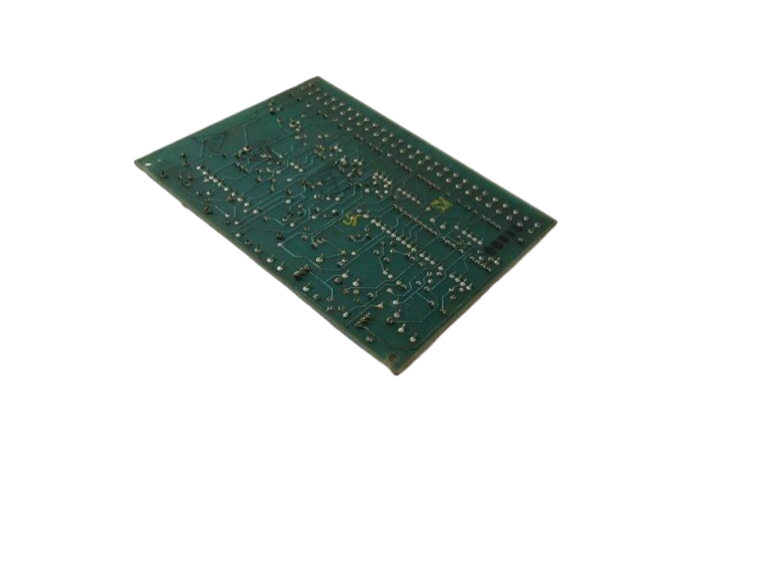

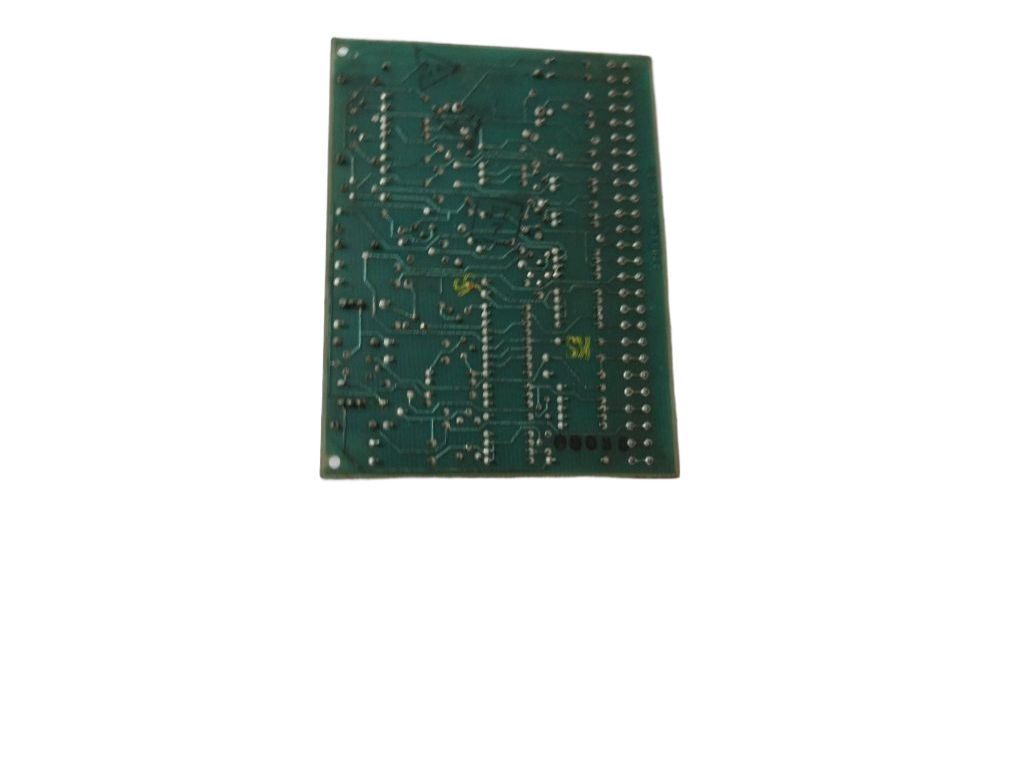

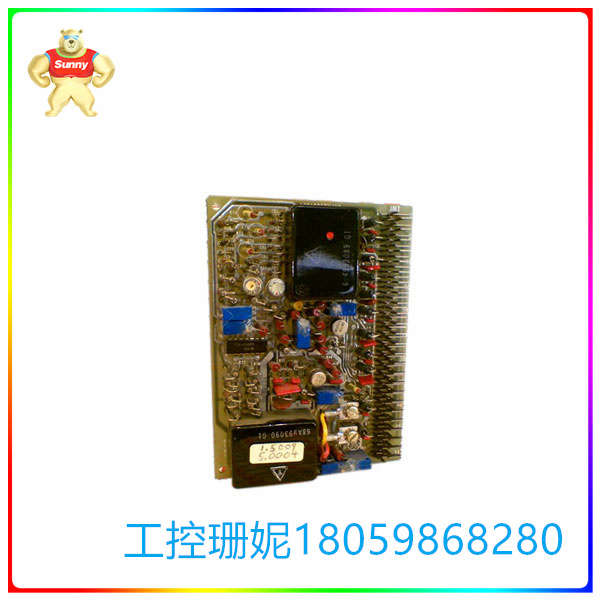

IC3600TFCU1D1C的一侧有两个电位计。这些电位计可用于校准 PCB 的某些设置。该板有 18 个晶体管,包括 4 个银色纽扣晶体管。该板使用铝电解材料和聚酯乙烯基电容器。有几条电阻器和二极管线。二极管可以是陶瓷或其他材料。电阻器编号最高可达 R102。
IC3600TFCU1D1C标有数字 1/5/15/25/35/45/51。它具有主板 ID 号、GE 圆形商标以及代码 JVC、006/05、002/01、003/01 和 278A4519。
☆型号:IC3600TFCU1D1C 印刷电路板 燃气/蒸汽轮机管理系统
【英文介绍】
The IC3600TFCU1D1C is a GE Mark I/Mark II component. The MKI was the first gas/steam turbine management system in GE's Speedtronic family, released in 1969. The MKII was released four years later in 1973. Both systems use the latest technologies available at launch and focus on creating systems that are accessible, easy to use, durable, and scalable. Both systems are made up of four main components: control, protection, sequencing, and power. Each of these components is designed to be as independent as possible and has redundant backups to improve the reliability of the entire system. Both MKI and MKII are now considered obsolete and no longer supported by GE.
The IC3600TFCU1D1C has two potentiometers on one side. These potentiometers can be used to calibrate certain Settings of the PCB. The board has 18 transistors, including four silver button transistors. The plate uses aluminum electrolytic materials and polyester vinyl capacitors. There are several resistor and diode lines. Diodes can be ceramic or other materials. Resistor numbers up to R102.
IC3600TFCU1D1C is marked with the numbers 1/5/15/25/35/45/51. It has the motherboard ID number, the GE circular logo, and the codes JVC, 006/05, 002/01, 003/01, and 278A4519.
