☆型号:IC3600SCBN2A 矩形印刷电路板 涡轮机管理系统
【产品详情】
通用电气 (GE) 制造了IC3600SCBN2A印刷电路板或 PCB。该板是为 Speedtronic Mark I-II 涡轮机管理系统生产的。Mark I 和 Mark II 是 Mark 系列的一部分。第一个 Mark 系统 Mark I 于 1960 年代后期(1968 年)安装在纽约长岛。

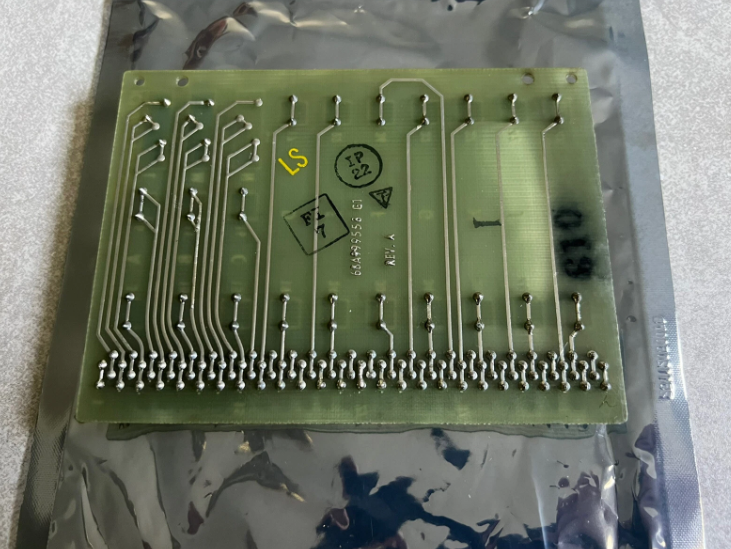

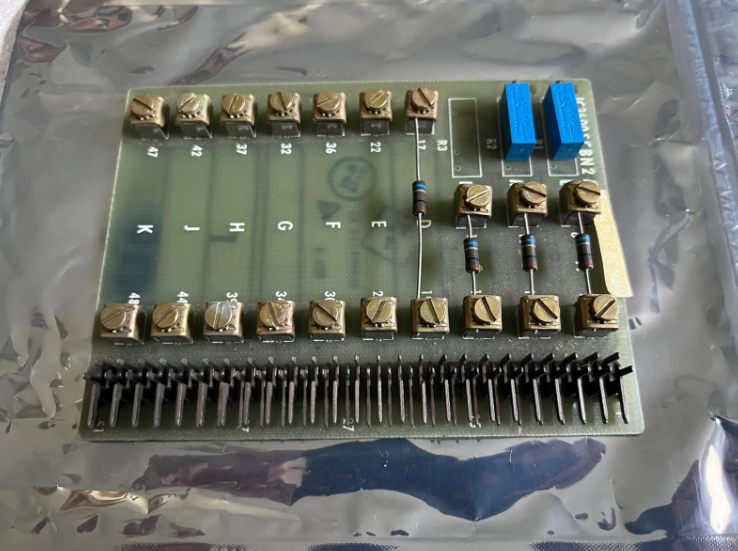

IC3600SCBN2A是矩形印刷电路板。沿着IC3600SCBN2A的右侧,有一长串大金属爪。这些插脚可用于将IC3600SCBN2A连接到更大的涡轮系统。二十 (20) 个小金属立方体形状的组件位于IC3600SCBN2A表面周围。其中 10 个组件位于电路板右侧的金属插脚旁边。在IC3600SCBN2A的中心,有三 (3) 个这样的立方体位于印刷电路板顶部的垂直线上。位于IC3600SCBN2A的左侧,有一排七 (7) 个金属立方体,从IC3600SCBN2A的下边缘垂直放置。有三 (3) 个空白空间,用于将电阻器直接固定在这七个金属部件的正上方。空格标有指示符 R1、R2 和 R3。IC3600SCBN2A表面贴有各种字母。这些字母的范围从 A 到 N。印刷电路板的表面还具有一系列数字。这些数字的范围从五 (5) 到四十七 (47)。
☆型号:IC3600SCBN2A 矩形印刷电路板 涡轮机管理系统
【英文介绍】
General Electric (GE) manufactures the IC3600SCBN2A printed circuit board or PCB. The board is manufactured for the Speedtronic Mark I-II turbine management system. The Mark I and Mark II are part of the Mark series. The first Mark system, the Mark I, was installed in the late 1960s (1968) on Long Island, New York.
The IC3600SCBN2A is a rectangular printed circuit board. Along the right side of IC3600SCBN2A, there is a long string of large metal claws. These pins can be used to connect the IC3600SCBN2A to larger turbine systems. Twenty (20) small metal cube shaped components are located around the surface of the IC3600SCBN2A. Ten of the components are located next to metal pins on the right side of the board. In the center of IC3600SCBN2A, there are three (3) such cubes located on a vertical line on top of the printed circuit board. Located to the left of IC3600SCBN2A, there is a row of seven (7) metal cubes placed vertically from the lower edge of IC3600SCBN2A. There are three (3) blank Spaces for attaching the resistor directly above these seven metal parts. Spaces are marked with indicators R1, R2, and R3. IC3600SCBN2A is covered with various letters. These letters range from A to N. The surface of the printed circuit board also has a series of numbers. These numbers range from five (5) to forty-seven (47).
