☆型号:IC3600STKJ1C 热电偶放大器卡 印刷电路板
【产品详情】
IC3600STKJ1是一种称为热电偶放大器卡的产品。这是通用电气或GE为Speedtronic Mark I-II系列制造的一种印刷电路板。Mark I 和 Mark II 是 Mark 系列中最早的两个系列,分别于 1969 年和 1973 年发布。热电偶是用于测量温度的传感器。热电偶由两根由不同类型的金属制成的导线组成。在这些电线连接点测量温度。每当该点经历温度变化时,就会产生电压。热电偶放大器的作用是放大产生的电压。

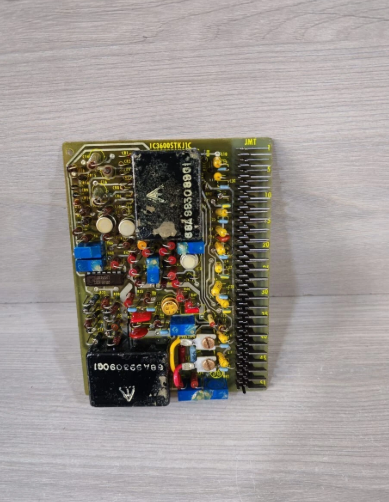

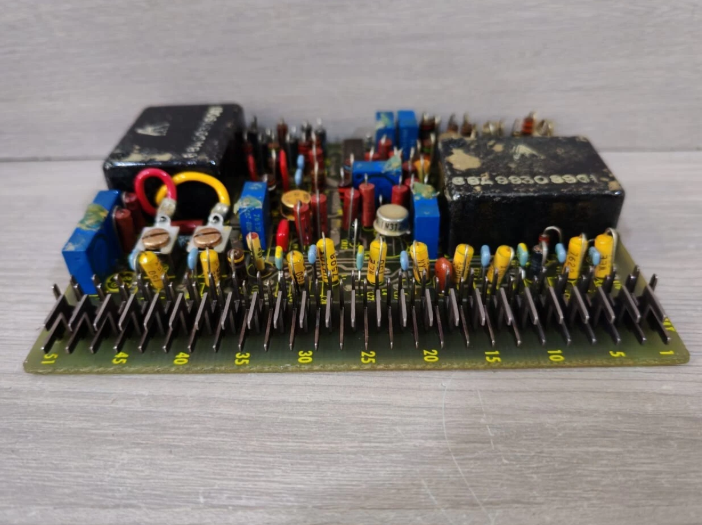

IC3600STKJ1热电偶放大器卡具有两 (2) 个大型黑色变压器。其中一个变压器放置在IC3600STKJ1的两端。它们标有部件号,即 88A98308831 和 993090G1。七 (7) 个电位器,也称为可变电阻器,位于IC3600STKJ1的不同位置。这些电位计是蓝色的,具有用于调节元件电阻的旋钮。许多电容器,其中一些是黄色常亮,另一些是蓝色常亮,在IC3600STKJ1右侧的一条线上交替。许多实心暗红色电阻器与至少三 (3) 个小圆形晶体管一起集中在IC3600STKJ1中心附近。超过四十 (40) 个金属插脚沿 IC3600STKJ1 PCB 的右边缘排列。这些可用于将印刷电路板连接到系统中的其他部件。这些插脚的编号从 1 到 51,通常以五 (5) 为增量递增。
☆型号:IC3600STKJ1C 热电偶放大器卡 印刷电路板
【英文介绍】
The IC3600STKJ1 is a product called a thermocouple amplifier card. This is a printed circuit board manufactured by General Electric or GE for the Speedtronic Mark I-II series. The Mark I and the Mark II were the first two series of the Mark series, released in 1969 and 1973, respectively. A thermocouple is a sensor used to measure temperature. A thermocouple consists of two wires made of different types of metals. Temperature is measured at these wire connections. Whenever that point experiences a change in temperature, a voltage is generated. The role of a thermocouple amplifier is to amplify the resulting voltage.
The IC3600STKJ1 thermocouple amplifier card has two (2) large black transformers. One of the transformers is placed at both ends of IC3600STKJ1. They are marked with part numbers 88A98308831 and 993090G1. Seven (7) potentiometers, also known as variable resistors, are located at different locations in IC3600STKJ1. These potentiometers are blue and have knobs for adjusting the resistance of the element. A number of capacitors, some of them steady yellow and others steady blue, alternate on a line to the right of IC3600STKJ1. A number of solid dark red resistors are clustered near the IC3600STKJ1 center along with at least three (3) small circular transistors. More than forty (40) metal pins are arranged along the right edge of the IC3600STKJ1 PCB. These can be used to connect the printed circuit board to other components in the system. These pins are numbered from 1 to 51, usually in five (5) increments.
☆型号:IC3600STKJ1C 热电偶放大器卡 印刷电路板
【其他型号推荐】
