IC3600STKK1 温度控制板 印刷电路板

☆型号：IC3600STKK1 温度控制板 印刷电路板

【产品详情】

IC3600STKK1是温度控制板。这是一种印刷电路板 （PCB）。该IC3600STKK1由通用电气 （GE） 为 Mark I-II 系列制造。Mark I 和 Mark II 是 Mark 系列燃气轮机控制部件中最早发布的系统。

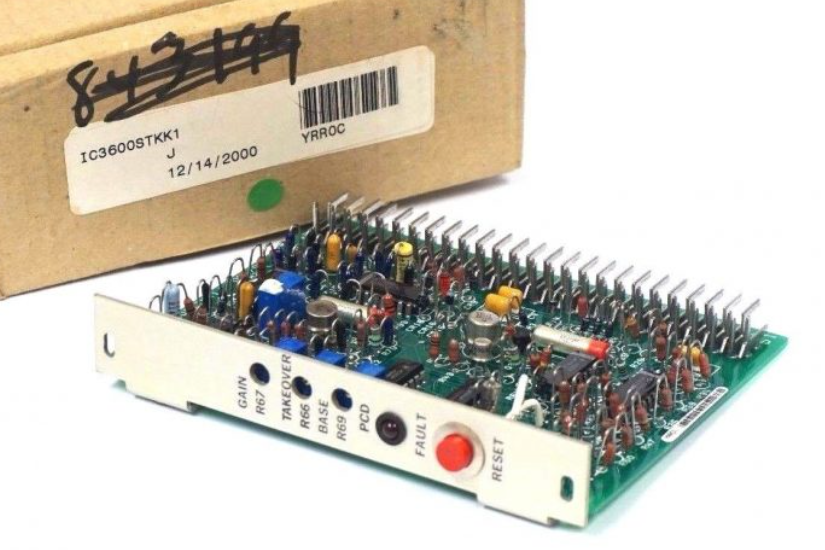

IC3600STKK1的左侧附有一块纤细的金属板。该板包含标签 GAIN R67、TAKEOVER R66、BASE R69 和 PCD。盘子上也有一盏灯，上面标有 FAULT 字样。正下方是一个圆形的红色按钮，上面标有“RESET”字样。在PCB的左侧，靠近金属板，有三（3）个蓝色电位器。这些器件也可以称为可变电阻器，因为它们具有可以调整以改变电阻的刻度盘。IC3600STKK1上集成了七 （7） 个集成电路的集合。每个集成电路都包含一个由电阻器、二极管和电容器等微小元件组成的网络。其中一些集成电路标有部件号 SM9618 和 LM747CN。其余两 （2） 个标有部件号 MC846P 和 FDI9731。两 （2） 个一端为银色和红色的电容器位于IC3600STKK1上。IC3600STKK1表面的大部分空间被电阻器占用。其中一些电阻器是纯色的，而另一些则具有多色条带。在IC3600STKK1周围还可以看到许多小二极管。IC3600STKK1上的每个组件都清楚地标有白色字母和数字。

☆型号：IC3600STKK1 温度控制板 印刷电路板

【英文介绍】

IC3600STKK1 is a temperature control panel. This is a printed circuit board (PCB). The IC3600STKK1 was manufactured by General Electric (GE) for the Mark I-II series. The Mark I and Mark II were the first systems released in the Mark family of gas turbine control components.

IC3600STKK1 has a thin metal plate attached to its left side. The board contains the labels GAIN R67, TAKEOVER R66, BASE R69, and PCD. There was also a lamp on the plate marked "FAULT". Right below is a round red button marked with the word "RESET." On the left side of the PCB, near the metal plate, there are three (3) blue potentiometers. These devices can also be called variable resistors because they have dials that can be adjusted to change the resistance. The IC3600STKK1 is a collection of seven (7) integrated circuits. Each integrated circuit contains a network of tiny components such as resistors, diodes and capacitors. Some of these ics are labeled with part numbers SM9618 and LM747CN. The remaining two (2) are marked with part numbers MC846P and FDI9731. Two (2) capacitors with silver and red ends are located on IC3600STKK1. Most of the space on the surface of IC3600STKK1 is occupied by the resistor. Some of these resistors are solid colored, while others have multicolor bands. Many small diodes can also be seen around the IC3600STKK1. Each component on the IC3600STKK1 is clearly marked with white letters and numbers.
