☆型号:DS200TBCBG1AAA 终端模拟板 用作电压输入还是电流输入
【产品详情】
该DS200TBCBG1AAA是通用电气Mark V终端模拟板。

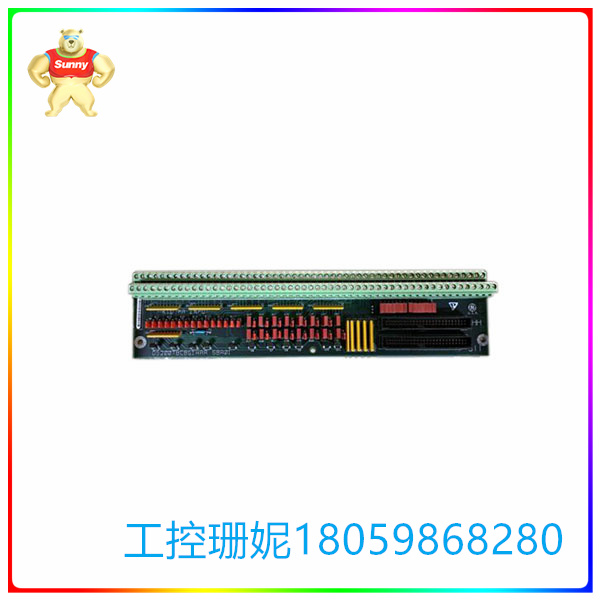

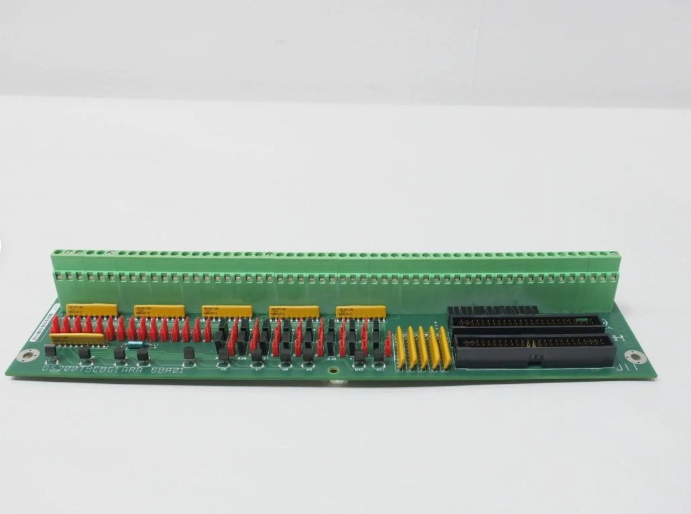

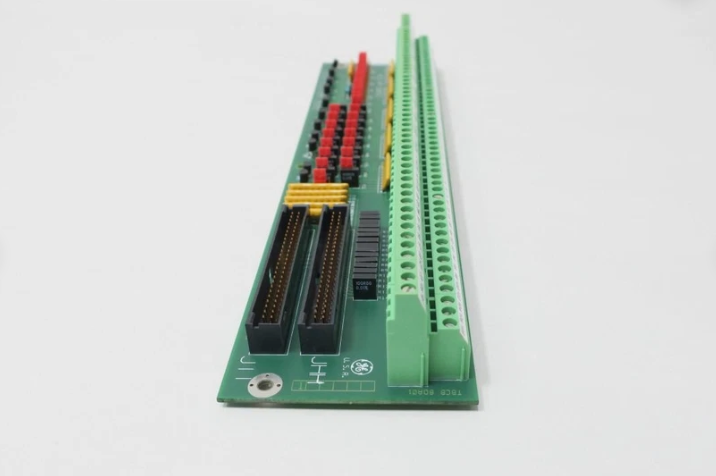

DS200TBCBG1AAA终端模拟卡是一块又长又窄的板。它具有沿一个电路板边缘的长接线端子,以及多个垂直插针连接器。该板还具有跳线开关和电阻网络阵列。这是 MKV 系统用于接受隔离式 21 伏直流励磁电源输入的三个端子板之一。
DS200TBCBG1AAA上的跳线确定输入是用作电压输入还是电流输入。 在电流输入模式下,电压在内部并联连接到 <R1> 和 <R3> 中的 TCQA 板。该板上的电流输入可以是 4-20 mA (14),也可以在 4-20 mA 或 1 mA 之间选择。(8). GE手册有关于跳线选择和配置的深入信息。
该DS200TBCBG1AAA具有一个 JHH 连接器,用于将毫安输入信号写入 TCCB 板,以及一个 JII 连接器,用于将 RTD 信号写入同一板。
☆型号:DS200TBCBG1AAA 终端模拟板 用作电压输入还是电流输入
【英文介绍】
The DS200TBCBG1AAA is a General Electric Mark V terminal analog board. AX Control has more than one such board in stock; Since every letter in the motherboard identification ID is important, be sure to order the right motherboard for your specific system. Mark V Speedtronic systems are used to control and maintain gas and steam industrial turbine systems of all sizes and complexity.
The DS200TBCBG1AAA Terminal emulation card is a long and narrow board. It has long terminals along the edge of a circuit board, and multiple vertical pin connectors. The board also has a jumper switch and resistance network array. This is one of the three terminal boards used by the MKV system to accept isolated 21 volt DC excitation power input.
The jumper on the DS200TBCBG1AAA determines whether the input is used as a voltage input or a current input. In current input mode, the voltage is connected internally in parallel to the TCQA boards in <R1> and <R3>. The current input on this board can be 4-20 mA (14), or can be selected between 4-20 mA or 1 mA. (8). The GE manual has in-depth information on jumper selection and configuration.
The DS200TBCBG1AAA has a JHH connector for writing milliamp input signals to the TCCB board, and a JII connector for writing RTD signals to the same board.
