IC200MDL742H 分立式输出模块 输出点分为两组

☆型号：IC200MDL742H 分立式输出模块 输出点分为两组

【产品详情】

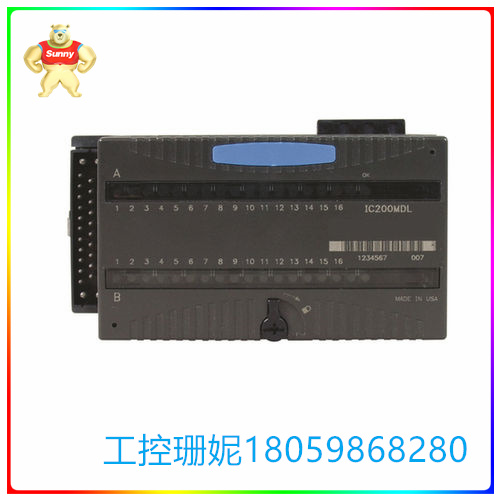

 IC200MDL742 由通用电气 Fanuc 制造，是一款分立式输出模块，共有 32 个输出点。 这些分立式输出点分为两组，每组 16 个，每组能够进行负载切换并提供负载电流。该模块的所有输出点均为正逻辑类型。

本产品从次级电源供电。当连接到 5V 输出背板时，该模块将消耗最大 150 毫安的电流。该模块具有灵活的工作电压，直流电 （DC） 范围为 18 至 30 伏。然而，标称工作电压为 24 伏直流电。本产品的输出电压降最大为 0.5 伏，在 30 伏直流电下工作时，输出点泄漏为 0.5 毫安。

每个输出点的“开”和“关”状态的响应时间标准为 0.5 毫秒。在 30 伏直流电下，每点的阻性负载电流为 0.5 安培，在最大浪涌时为 2.0 安培，持续 100 毫秒。此外，该模块为每个输出提供多个保护选项，包括电子短路保护、续流二极管和过流保护。每个输出点还映射到状态 LED，板载诊断报告任何过载点的状态。

该模块不支持通道间隔离，也不提供点对点隔离;但是，IC200MDL742确实支持在 250 伏交流电 （AC） 下连续进行组间隔离，并在 1500 伏交流电下持续长达一分钟。

☆型号：IC200MDL742H 分立式输出模块 输出点分为两组

【英文介绍】

Manufactured by GE Fanuc, the IC200MDL742 is a discrete output module with a total of 32 output points. These discrete output points are divided into two groups of 16 each, and each group is capable of load switching and providing load current. All output points of this module are of positive logic type.

This product is powered from a secondary power supply. When connected to the 5V output backplane, the module will consume a maximum of 150 mA of current. The module has a flexible operating voltage with a direct current (DC) range of 18 to 30 volts. However, the nominal operating voltage is 24 volts DC. The output voltage drop of this product is up to 0.5 volts, and the output point leakage is 0.5 mA when operating at 30 volts DC.

The standard response time for the "on" and "off" states of each output point is 0.5 ms. At 30 volts DC, the resistive load current is 0.5 amps per point and 2.0 amps at maximum surge for 100 milliseconds. In addition, the module offers multiple protection options for each output, including electronic short circuit protection, continuing diode and overcurrent protection. Each output point is also mapped to a status LED, with onboard diagnostics reporting the status of any overload points.

The module does not support inter-channel isolation, nor does it provide point-to-point isolation. However, the IC200MDL742 does support continuous intergroup isolation at 250 volts alternating current (AC) and up to one minute at 1500 volts AC.
