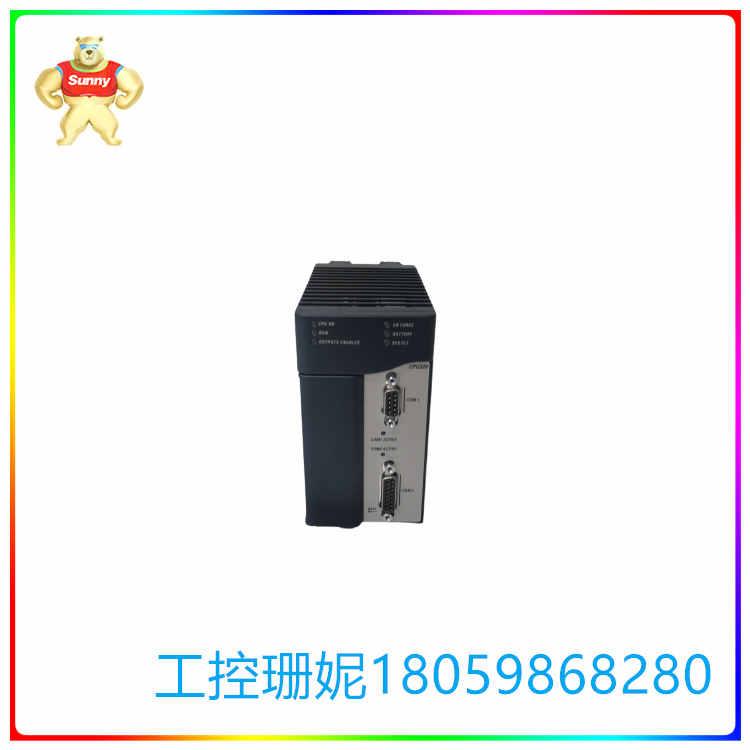

☆型号:IC695CPU320-HU 中央处理器 物料搬运系统
【产品详情】

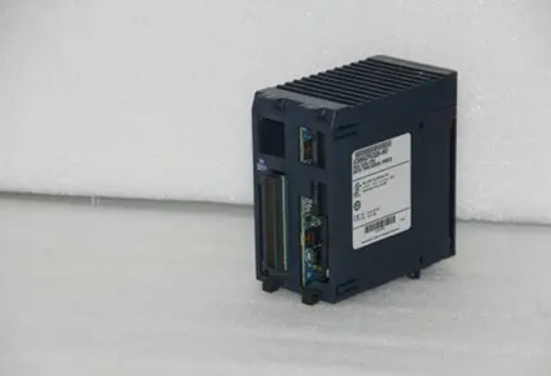

IC695CPU320是GE Fanuc PACSystems RX3i系列的中央处理器。 该IC695CPU320具有额定频率为 1 GHz 的 Intel Celeron-M 微处理器,具有 64 MB 的用户(随机存取)内存和 64 MB 的闪存(存储)内存。RX3i CPU 经过编程和配置,可实时控制机器、流程和物料搬运系统。
IC695CPU320的机箱中内置了一对独立的串行端口。两个串行端口中的每一个都占用系统基座上的一个插槽。 CPU 支持 SNP、串行 I/O 和 Modbus 从串行协议。此外,IC695CPU320 采用双背板设计,支持 RX3i PCI 总线和 90-30 式串行总线。与 Rx3i 产品系列中的其他 CPU 一样,IC695CPU320 提供自动错误检查和纠正功能。
IC695CPU320使用Proficy Machine Edition,这是所有GE Fanuc控制器通用的开发环境。Proficy Machine Edition 专为创建、运行和诊断操作员界面、运动和控制应用程序而设计。

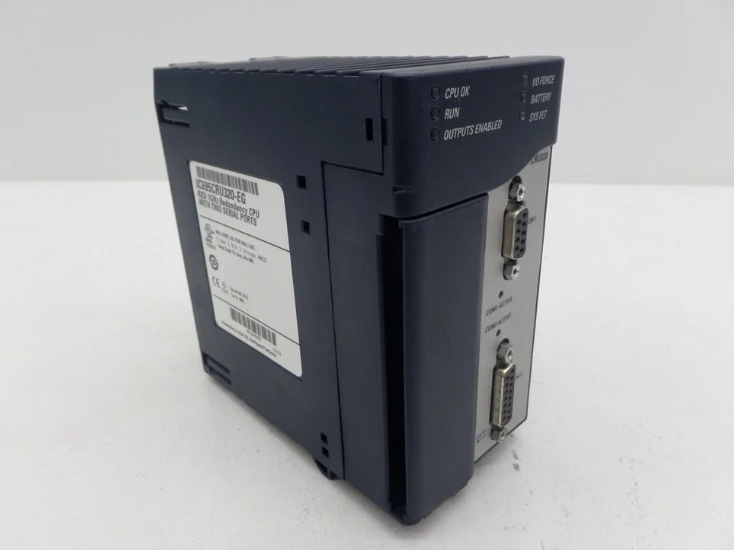

CPU 上的 8 个 LED 指示灯有助于故障排除。每个 LED 响应一个单独的功能,但标记为 COM 1 和 COM 2 的两个 LED 除外,它们属于不同的端口而不是不同的功能。其他 LED 是 CPU OK、Run、Outputs Enabled、I/O Force、Battery 和 Sys Flt,这是“系统故障”的缩写。I/O 强制 LED 指示 Override 是否在位参考上处于活动状态。当 Outputs Enabled LED 亮起时,则启用输出扫描。其他 LED 标签是不言自明的。LED 和串行端口都聚集在设备正面,便于查看。
☆型号:IC695CPU320-HU 中央处理器 物料搬运系统
【英文介绍】
The IC695CPU320 is a central processing unit of the GE Fanuc PACSystems RX3i series. The IC695CPU320 features an Intel Celeron-M microprocessor rated at 1 GHz, with 64 MB of user (random access) memory and 64 MB of flash (storage) memory. The RX3i CPU is programmed and configured to control machines, processes and material handling systems in real time.
The IC695CPU320 has a pair of separate serial ports built into the chassis. Each of the two serial ports occupies a slot on the system dock. The CPU supports SNP, serial I/O, and Modbus slave serial protocols. In addition, the IC695CPU320 has a dual-backplane design that supports the RX3i PCI bus and the Type 90-30 serial bus. Like other cpus in the Rx3i product family, the IC695CPU320 provides automatic error checking and correction.
The IC695CPU320 uses Proficy Machine Edition, a common development environment for all GE Fanuc controllers. Proficy Machine Edition is designed for creating, running, and diagnosing operator interface, motion, and control applications.
Eight LED indicators on the CPU help with troubleshooting. Each LED responds to a separate function, with the exception of the two leds labeled COM 1 and COM 2, which belong to different ports rather than different functions. The other leds are CPU OK, Run, Outputs Enabled, I/O Force, Battery, and Sys Flt, which is short for "system failure." The I/O force LED indicates whether Override is active on the present reference. When the Outputs Enabled LED lights up, the output scan is enabled. Other LED labels are self-explanatory. Leds and serial ports are clustered on the front of the device for easy viewing.
☆型号:IC695CPU320-HU 中央处理器 物料搬运系统
