☆型号：IC693CPU363LT 可编程逻辑控制器 监控和数据采集
【产品详情】

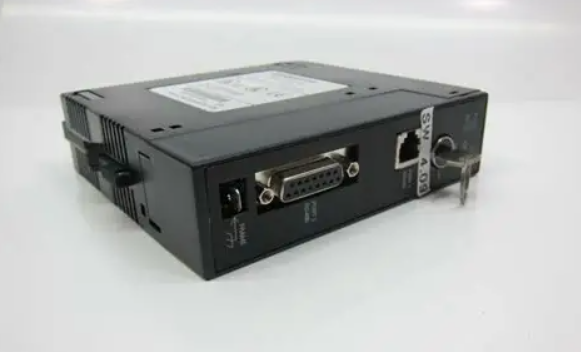

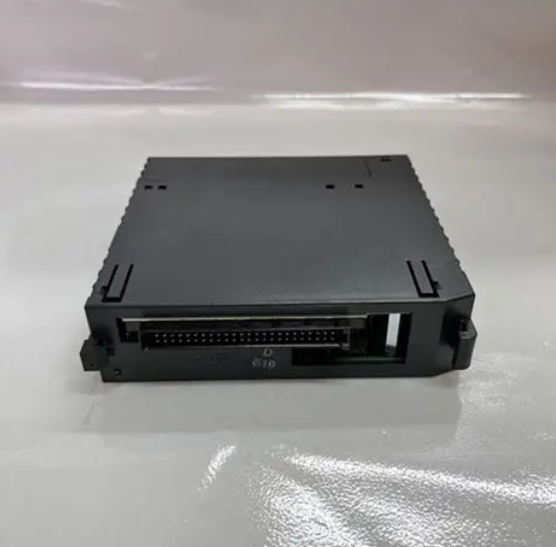

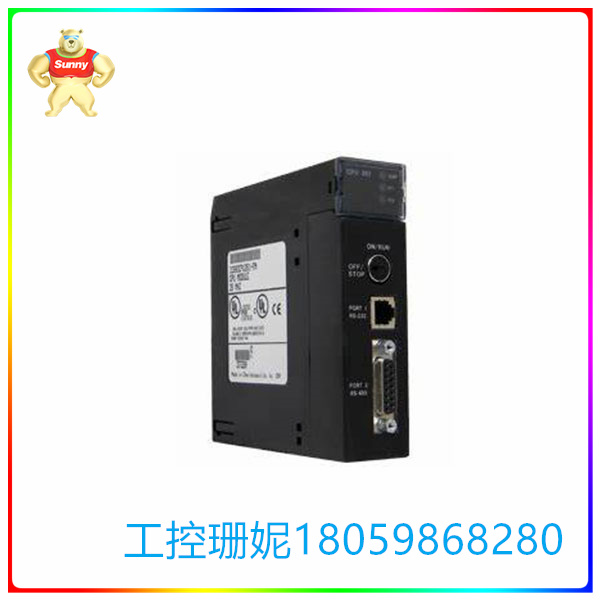

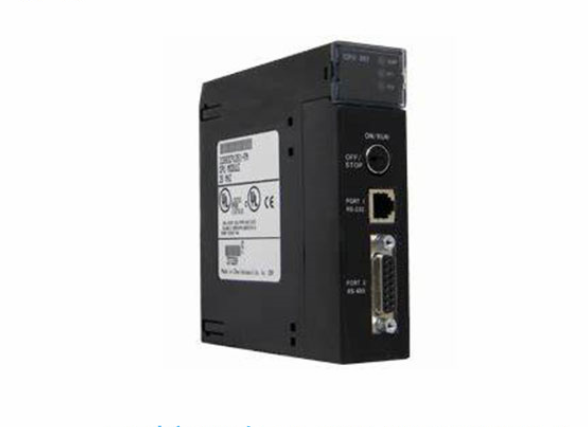

该IC693CPU363由GE Fanuc制造。该模块是可编程逻辑控制器 （PLC） 90-30 系列的控制器。该控制器负责执行存储在其用户内存中的用户程序，以及兼容设备（如编程工作站、人机界面 （HMI）、监控和数据采集 （SCADA）、数据库和其他第三方硬件和设备）之间的托管通信交换。
该IC693CPU363采用 80386EX 处理器，时钟速度为 25 MHz，布尔触点的典型扫描速率为每 1K 逻辑 0.22 ms。该控制器的嵌入式存储器为240KB，内部分区以适应不同的寄存器和内部功能。它有两 （2） 个串行端口，一 （1） 个端口具有 RJ45 物理接口，另一个端口具有 15 针 sub-D 连接器，均支持 RS232 和 RS485 通信标准。它还具有位于电源上的第三级 RS485 端口。所有这些端口都允许下载、上传用户程序、执行调试任务和程序微调。这些端口独立运行，可以配置为同时运行，以适应其他数据交换功能，例如与可视化组件的通信。IC693CPU363支持的其他通信协议包括以太网、FIP、Profibus、GBC、GCM、GCM+ 选件模块。
IC693CPU363是单插槽模块。它能够处理多达八 （8） 个底板，包括安装IC693CPU363的局部底板。该IC693CPU363最多支持七 （7） 个远程或分布式 I/O。
IC693CPU363 CPU 模块上有三个内置串行端口。可通过电源连接器访问的串行端口支持 SNP/SNPX 从站协议。该串行端口有一个 15 针 D 型母连接器，可以通过打开电源右前方的铰链门来访问。此串行端口可用于连接到运行编程软件的 PC 或 GE Fanuc 手持式编程器。串行端口 1 和 2 支持 SNP/SNPX 主/从和 RTU 从协议。提供可选的以太网和Profibus通信模块，并可与IC693CPU363 CPU模块一起使用。IC693CPU363模块支持周期性子程序功能。除用户RAM外，IC693CPU363 CPU模块还支持用于存储CPU固件的闪存。在固件版本 9.0 中，该模块还支持浮点数学运算。
☆型号：IC693CPU363LT 可编程逻辑控制器 监控和数据采集
【英文介绍】
The IC693CPU363 is manufactured by GE Fanuc. The module is a controller of the Programmable Logic Controller (PLC) 90-30 series. The controller is responsible for executing user programs stored in its user's memory, as well as managed communication exchanges between compatible devices such as programming workstations, human machine interfaces (Hmis), monitoring and data acquisition (SCADA), databases, and other third-party hardware and devices.
The IC693CPU363 uses an 80386EX processor with a clock speed of 25 MHz and a typical sweep rate of 0.22 ms per 1K logic for Boolean contacts. The controller's embedded memory is 240KB, internally partitioned to accommodate different registers and internal functions. It has two (2) serial ports, one (1) port with an RJ45 physical interface and the other port with a 15-pin sub-D connector, both supporting RS232 and RS485 communication standards. It also has a third level RS485 port located on the power supply. All of these ports allow you to download and upload user programs, perform debugging tasks, and fine-tune programs. These ports operate independently and can be configured to operate simultaneously to accommodate other data exchange functions, such as communication with visual components. Other communication protocols supported by IC693CPU363 include Ethernet, FIP, Profibus, GBC, GCM, and GCM+ option modules.
The IC693CPU363 is a single-slot module. It is capable of handling up to eight (8) backboards, including local backboards where IC693CPU363 is installed. The IC693CPU363 supports up to seven (7) remote or distributed I/ OS.
The IC693CPU363 CPU module has three built-in serial ports. The serial port, accessible through the power connector, supports the SNP/SNPX slave protocol. This serial port has a 15-pin type D female connector that can be accessed by opening a hinged door on the right front of the power supply. This serial port can be used to connect to a PC running programming software or a GE Fanuc handheld programmer. Serial ports 1 and 2 support SNP/SNPX master/slave and RTU slave protocols. Optional Ethernet and Profibus communication modules are available and can be used with the IC693CPU363 CPU module. The IC693CPU363 module supports periodic subroutine function. In addition to user RAM, the IC693CPU363 CPU module also supports flash memory for storing the CPU firmware. In firmware version 9.0, the module also supports floating-point math operations.
☆型号：IC693CPU363LT 可编程逻辑控制器 监控和数据采集
