IS220YDOAS1A 分立式输出端子板 提供电气接口

☆型号：IS220YDOAS1A 分立式输出端子板 提供电气接口

【产品详情】

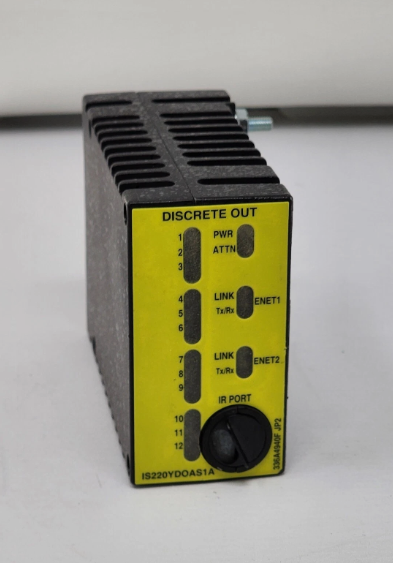

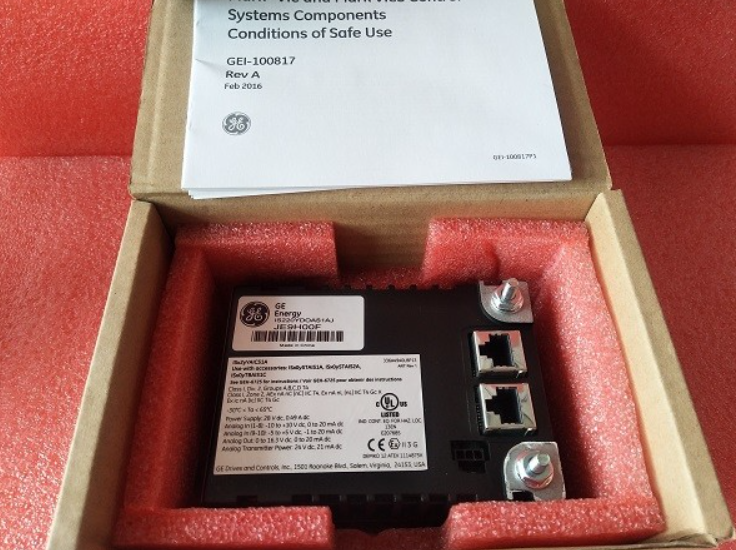

GE Industrial 的 Pack IS220YDOAS1A 用于帮助为分立式输出端子板和多达两个 I/O 以太网网络提供电气接口。该套件具有一个处理器板和一个采集板，该采集板也用于分立输出功能。

什么是IS220YDOAS1A？该IS220YDOAS1A是用于燃气轮机控制应用的GE Mark VIeS安全分立I/O包。

作为 YDOA 分立式输出包模块，IS220YDOAS1A包用于连接分立式输出端子板以及多达两个 I/O 以太网。 该板的主要组件是采集板和通用处理器板，它们都用于帮助实现分立输出功能。该电池组的一个关键特性是它能够控制多达 12 个电位继电器，并接受来自端子板的特定反馈。该电池组的输出将通过 DC-37 引脚连接器提供，该连接器将直接与相关的端子板连接。

此包可用于两种不同的冗余配置。如果在 TMR 冗余应用程序中使用 IS220YDOAS1A 包，则需要三个 I/O 包，而在单工冗余应用程序中使用时只需要一个。该包能够执行自诊断测试，其中一项测试是上电测试，它将检查处理器板硬件、闪存、以太网端口和 RAM。此诊断的所有详细信息都将在 YDOA 包的 ToolboxST 应用程序中找到。

YDOA 包有 12 个可以指示状态的 LED，每个 LED 都会指示是否存在可以为继电器供电的命令，这些 LED 在指示输出时为黄色。该IS220YDOAS1A还具有特定的警报，可指示各种潜在错误。其中一个潜在警报标记为 142 警报，表示没有端子板励磁或所有保险丝都熔断。要纠正此警报，请更换 I/O 包或完全更换端子板。

☆型号：IS220YDOAS1A 分立式输出端子板 提供电气接口

【英文介绍】

GE Industrial's Pack IS220YDOAS1A is designed to help provide electrical interfaces for discrete output terminal boards and up to two I/O Ethernet networks. The kit has a processor board and a capture board, which is also used for discrete output functions.

What is IS220YDOAS1A? The IS220YDOAS1A is a GE Mark VIeS secure discrete I/O package for gas turbine control applications.

As a YDOA discrete output packet module, the IS220YDOAS1A package is used to connect discrete output terminals and up to two I/O Ethernet cables. The main components of the board are the acquisition board and the universal processor board, both of which are used to help realize the discrete output function. A key feature of the battery pack is its ability to control up to 12 potential relays and receive specific feedback from the terminal plate. The output of this battery pack will be provided via a DC-37 pin connector, which will be connected directly to the associated terminal board.

This package can be used in two different redundancy configurations. If the IS220YDOAS1A package is used in a TMR redundant application, three I/O packages are required, whereas only one is required when used in a simplex redundant application. The package is capable of performing self-diagnostic tests, one of which is a power-on test that will check the processor board hardware, flash memory, Ethernet ports, and RAM. All details of this diagnosis will be found in the ToolboxST application of the YDOA package.

The YDOA package has 12 leds that can indicate the status, each indicating whether there is a command that can power the relay, and these leds are yellow when indicating the output. The IS220YDOAS1A also has specific alarms that indicate a variety of potential errors. One of the potential alarms is labeled a 142 alarm, indicating that there is no terminal board excitation or that all fuses are blown. To correct this alarm, replace the I/O packet or completely replace the terminal board.
