IC698CPE040-JP
IC698CPE040-JP
IC698CPE040-JP
IC698CPE040-JP
IC698CPE040-JP
IC698CPE040-JP

IC698CPE040-JP 中央处理器 额定处理器速度

型号:IC698CPE040-JP中央处理器额定处理器速度【产品详情】IC698CPE040CPU或中央处理器由GEFanuc在GERX7iPACSystem产

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

型号:IC698CPE040-JP 中央处理器 额定处理器速度







【产品详情】

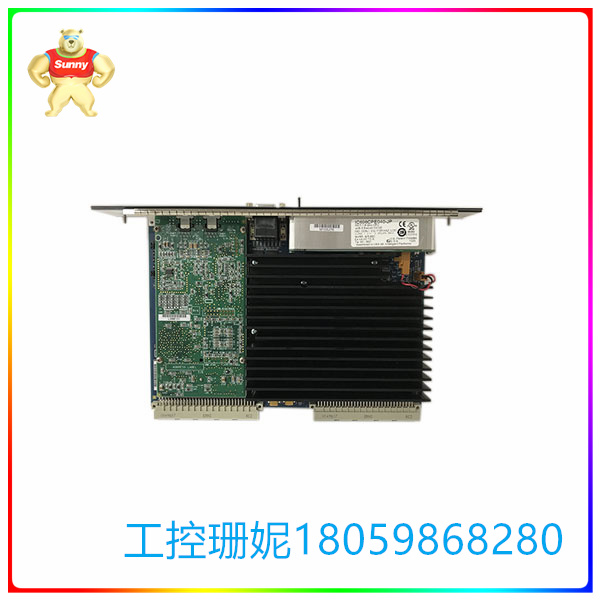

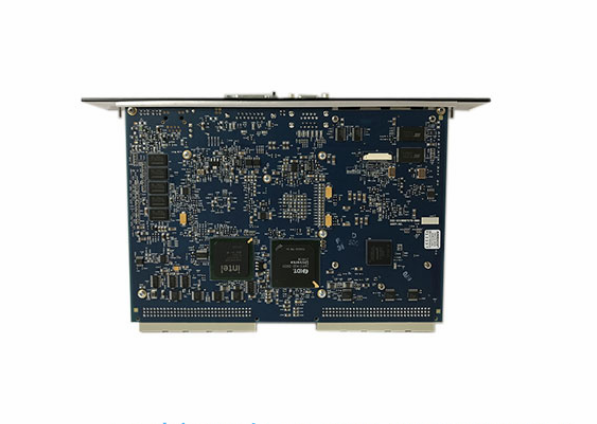

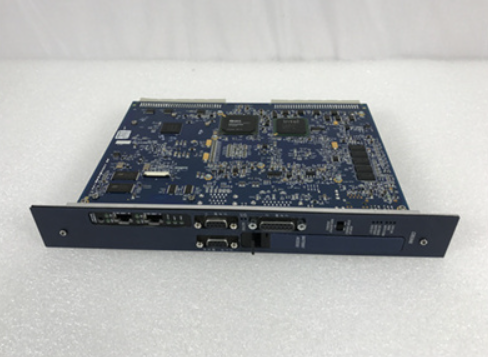

IC698CPE040 CPU 或中央处理器由 GE Fanuc 在 GE RX7i PACSystem 产品线中设计和制造,并且功能尽可能强大。GE IC698CPE040 CPU 以其快速的程序和应用程序执行速度、相当大的内存容量以及易于升级的能力而著称。该 CPU 可以长期使用,因为它可以适应升级,使其能够跟上新技术和新的工业应用要求。IC698CPE040 CPU 设计用于 RX7i PACSystem PLC 或可编程逻辑控制器。IC698CPE040 CPU 的负载要求为 6.8 安培(5 伏直流电)和 0.003 安培(12 伏直流电和 -12 伏直流电)。

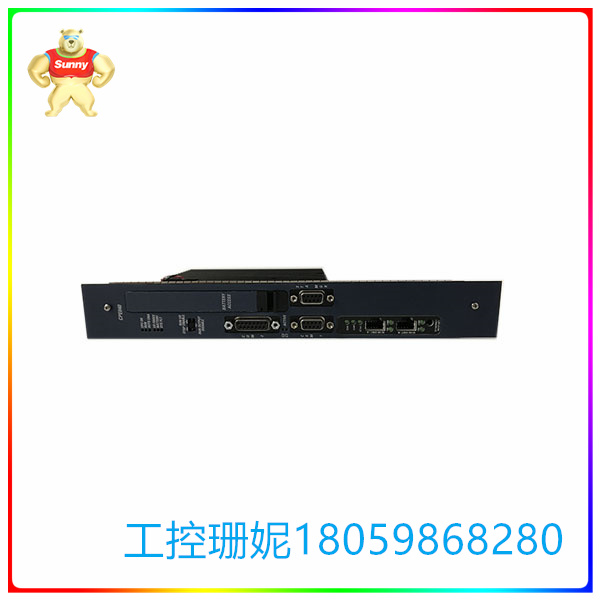

GE Fanuc RX7i PACSystem IC698CPE040 CPU 的规格包括 64 MB 的用户内存和 1800 兆赫的额定处理器速度。此 CPU 是 Pentium-M CPU。它包括 3 个串行端口,这些端口都是独立和隔离的,都可以从 CPU 前面的连接器访问。其中两个独立端口可用于对 CPU 进行固件升级或与外部设备创建串行接口。第三个端口是以太网接口的工作站管理端口。IC698CPE040 CPU 上的第一个固件端口是 RS-232 兼容端口,带有指示灯,用于指示该端口的活动。第二个固件端口与 RS-485 兼容,需要屏蔽电缆进行连接。第三个端口与第一个固件端口一样兼容 RS-232。




型号:IC698CPE040-JP 中央处理器 额定处理器速度






英文介绍





The IC698CPE040 CPU or central processing unit is designed and manufactured by GE Fanuc in the GE RX7i PACSystem product line and is as powerful as possible. The GE IC698CPE040 CPU is known for its fast program and application execution speed, considerable memory capacity, and the ability to upgrade easily. The CPU can be used for a long time because it can accommodate upgrades, allowing it to keep up with new technologies and new industrial application requirements. The IC698CPE040 CPU is designed for use with an RX7i PACSystem PLC or programmable logic controller. The load requirements for the IC698CPE040 CPU are 6.8 amps (5 volts DC) and 0.003 amps (12 volts DC and -12 volts DC).


The specifications of the GE Fanuc RX7i PACSystem IC698CPE040 CPU include 64 MB of user memory and a rated processor speed of 1800 MHZ. This CPU is a Pentium-M CPU. It consists of 3 serial ports, all of which are independent and isolated and all accessible from the connector on the front of the CPU. Two of these separate ports can be used to perform firmware upgrades to the CPU or to create serial interfaces with external devices. The third port is the workstation management port of the Ethernet interface. The first firmware port on the IC698CPE040 CPU is an RS-232 compatible port with an indicator to indicate the activity of that port. The second firmware port is compatible with RS-485 and requires a shielded cable for connection. The third port is as compatible with RS-232 as the first firmware port.




型号:IC698CPE040-JP 中央处理器 额定处理器速度
