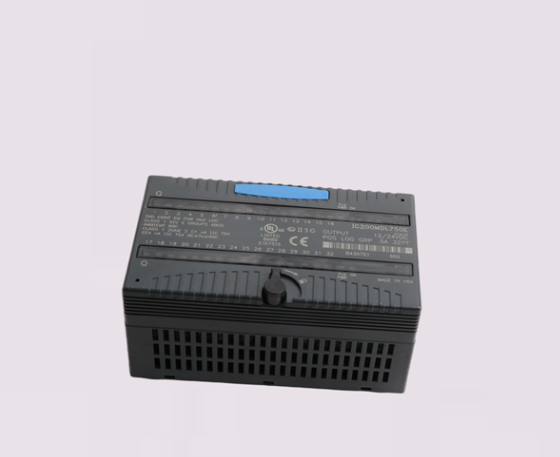

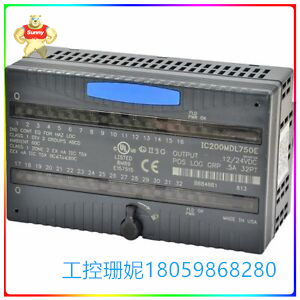

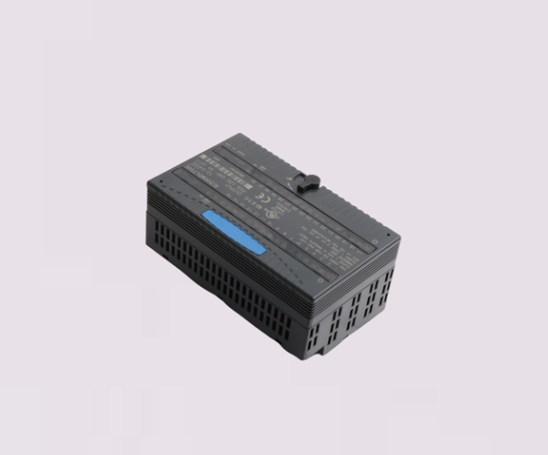

IC200MDL750E 高密度数字输出模块 激励电气负载

☆型号：IC200MDL750E 高密度数字输出模块 激励电气负载

【产品详情】

该IC200MDL750是由艾默生自动化（前身为GE智能平台（GE IP））制造的高密度数字输出模块。该模块主要具有三十二 （32） 个输出通道，分为两 （2） 组，每组十六 （16） 个输出通道。该模块通常用于驱动或激励电气负载，例如螺线管驱动设备、继电器线圈、指示灯和其他具有双态操作的设备，特别是二进制或开和关。它与额定电压为 24 VDC 的设备兼容，因为 IC200MDL750 的标称电压输出为 12 / 24 VDC，输出电压范围为 10.2 - 30 VDC，每通道输出电流为 0.5 A。

该IC200MDL750是 VersaMax I/O 平台的一部分，旨在用作分布式 I/O 架构的组件模块。它需要使用承载模块接线端子的载体底座。通过托架底座，该模块可以水平或垂直方向安装在标准的 35 mm DIN 导轨上。

IC200MDL750物理尺寸为 110 毫米（4.3 英寸）x 66.8 毫米（2.63 英寸）x 50 毫米（1.956 英寸），不包括托架底座的尺寸。与其他 I/O 模块类似，每个输出通道都配有一个单独的 LED 状态指示灯，用于本地监控每个通道模块的活动。此外，还提供一个OK LED，表示背板的有源电源，最大电流为90 mA。

IC200MDL750模块是 Versamax 输出模块。它是一个 32 点输出模块，额定电压为 24 伏直流电。它每点的额定电流为 0.5 安培。它消耗 90 毫安的背板电流。它体积小巧，重量为 0.90 公斤。IC200MDL750模块是一个正逻辑输出模块，具有 2 组 16 路输出。

☆型号：IC200MDL750E 高密度数字输出模块 激励电气负载

【英文介绍】

The IC200MDL750 is a high-density digital output module manufactured by Emerson Automation (formerly GE Intelligent Platform (GE IP)). The module mainly has thirty-two (32) output channels divided into two (2) groups, each group of sixteen (16) output channels. The module is commonly used to drive or excite electrical loads, such as solenoidal drive devices, relay coils, indicator lights, and other devices with two-state operation, especially binary or on and off. It is compatible with devices with A rated voltage of 24 VDC, as the IC200MDL750 has a nominal voltage output of 12/24 VDC with an output voltage range of 10.2-30 VDC and an output current of 0.5 A per channel.

The IC200MDL750 is part of the VersaMax I/O platform and is designed to be used as a component module for distributed I/O architectures. It requires the use of a carrier base that holds the module terminals. With a bracket base, the module can be mounted horizontally or vertically on a standard 35 mm DIN rail.

The IC200MDL750 has physical dimensions of 110 mm (4.3 in) x 66.8 mm (2.63 in) x 50 mm (1.956 in), not including the dimensions of the carrier base. Similar to other I/O modules, each output channel is equipped with a separate LED status indicator for local monitoring of the activity of each channel module. In addition, an OK LED is provided to indicate an active power supply for the backplane with a maximum current of 90 mA.

The IC200MDL750 module is the Versamax output module. It is a 32-point output module with a rated voltage of 24 volts DC. It has a rated current of 0.5 amps per point. It consumes 90 milliamps of backplane current. It is small and weighs 0.90 kg. The IC200MDL750 module is a positive logic output module with 2 groups of 16 outputs.

☆型号：IC200MDL750E 高密度数字输出模块 激励电气负载
