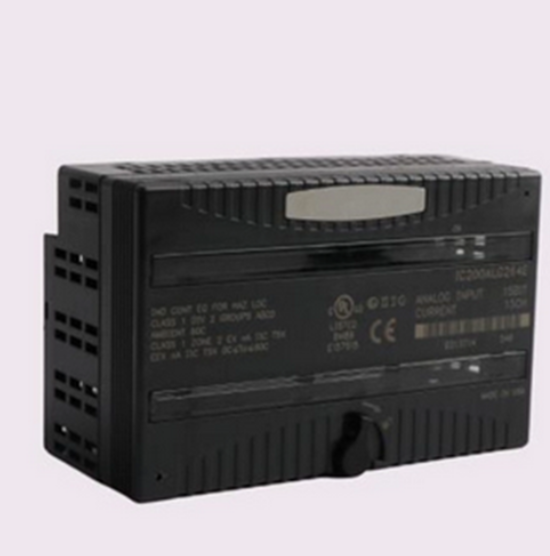

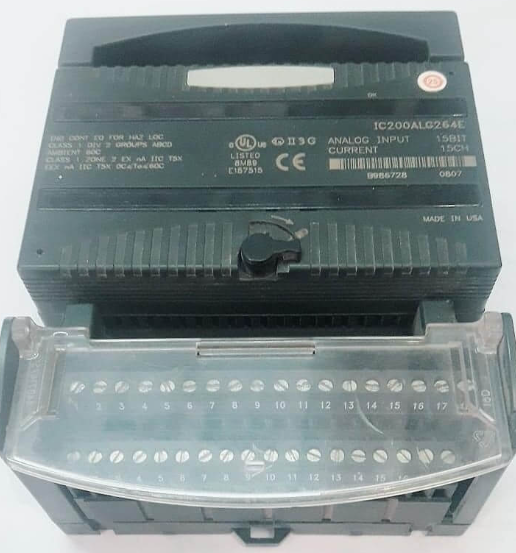

IC200ALG264E 模拟输入 具有额外的功能

☆型号：IC200ALG264E 模拟输入  具有额外的功能

【产品详情】

IC200ALG264不需要任何外部电源即可工作；然而，用户收发器的电源必须由外部电源提供。该模块还具有额外的功能，如作为一组包含(4-20)mA或(0-20)mA范围操作的跳线选择；15位转换器分辨率；可配置软件；和保存操作最后状态默认选择。IC200ALG264报告现场端电路的内部功率损失错误。它还报告每个通道的开路错误，但仅在4- 20mA模式下。

该模块配有一个绿色LED，用于打开背板电源，并且内部产生的现场电源工作正常。该模块的载体端子有一个跳线，用于配置4-20mA或0-20mA输入范围。但是，如果没有安装跳线，模块只能接受4-20mA输入信号。

这IC200ALG264具有模拟输入，可通过软件配置为默认或掉电后保持上一状态。对于模拟通道连接，强烈建议使用屏蔽双绞线。建议在源设备处将电缆接地，但如果出于某种原因，电缆未在源设备处接地，则电缆屏蔽必须在I/O模块处接地。使用辅助I/O端子进行接地。

☆型号：IC200ALG264E 模拟输入  具有额外的功能

【英文介绍】

IC200ALG264 does not require any external power supply to work; However, power to the user's transceiver must be supplied by an external power source. The module also has additional features such as selection of jumpers as a set containing (4-20)mA or (0-20)mA range operations; 15-bit converter resolution; Configurable software; And save operation last state default selection. IC200ALG264 reports an internal power loss error for the field end circuit. It also reports open circuit errors for each channel, but only in 4-20mA mode.

The module is equipped with a green LED to turn on the backplane power, and the field power generated internally is working properly. The carrier terminal of the module has a jumper for configuring a 4-20mA or 0-20mA input range. However, if no jumper is installed, the module can only accept 4-20mA input signals.

This IC200ALG264 has an analog input that can be configured by software to default or to remain in the previous state after a power failure. For analog channel connections, shielded twisted pair is strongly recommended. It is recommended that the cable be grounded at the source device, but if for some reason the cable is not grounded at the source device, the cable shield must be grounded at the I/O module. Use auxiliary I/O terminals for grounding.

☆型号：IC200ALG264E 模拟输入  具有额外的功能
