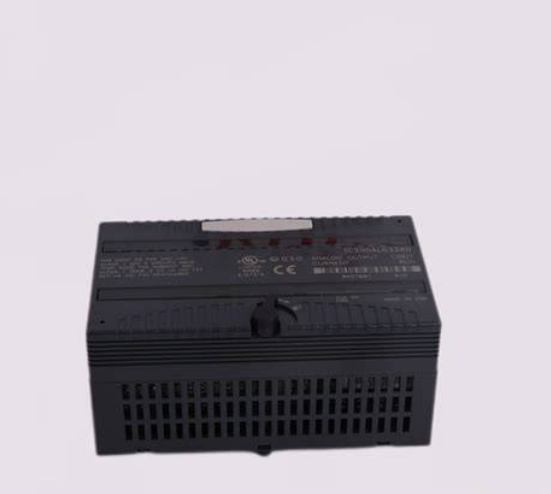

IC200ALG326D 电流模拟输出模块 具有 8 个单端通道

☆型号：IC200ALG326D 电流模拟输出模块 具有 8 个单端通道

【产品详情】

技术规格

不。通道数： 8 个单端，一组

电压范围： 18 - 30 伏直流电

电流范围： 4 - 20 毫安，0 - 20 毫安

更新速率： 15 毫秒

LED指示灯： FLD 压水堆，OK

功耗： +5V 总线 50 mA

IC200ALG326模块是GE Fanuc Automation制造的电流模拟输出模块，是VersaMax产品系列的成员。本机是一个 13 位模块，具有 8 个单端通道，排列成一组。IC200ALG326模拟输出模块提供 8 个额定值为 4 至 20 毫安的模拟电流源输出点。当该模块配置为 0 至 20 毫安的电流时，它的电流输出信号为 0 毫安，与计数为 0 的 %AQ 值相关联。此外，20 毫安对应于 %AQ 速率，最多可计数 32,000 次。在 4 至 20 毫安范围内工作时，0 %AQ 计数的值与 4 毫安的输出电流相匹配。32,000 %AQ 计数值也匹配高达 20 毫安的输出电流。

当 GE Fanuc IC200ALG326 电流模拟量输出模块安装在 PLC 机架中时，无论指定范围如何，它都会转换 0 毫安的负值。如果此模块由网络接口单元或 NIU 控制，则负值会将命令更改为低端范围。IC200ALG326模块的输出范围是默认的，它允许与有助于修改输出范围的跳线同时轻松配置。使用跳线可以使输出在背板中断或 PLC 不工作时保持最后状态或默认通信和电源。输出点继续保持默认或最后状态，直到背板提供不同的输出数据或直到现场电源断开。

☆型号：IC200ALG326D 电流模拟输出模块 具有 8 个单端通道

【英文介绍】

Technical specification

Nooooo. Number of channels: 8 single-ended channels in a group

Voltage range: 18-30 volts DC

Current range: 4-20 MA, 0-20 Ma

Update rate: 15 ms

LED indicator: FLD PWR, OK

Power consumption: +5V bus 50 mA

The IC200ALG326 module is a current analog output module manufactured by GE Fanuc Automation and is a member of the VersaMax product family. This unit is a 13-bit module with 8 single-ended channels arranged in a group. The IC200ALG326 analog output module offers eight analog current source output points rated from 4 to 20 mA. When the module is configured with a current of 0 to 20 mA, it has a current output signal of 0 mA, associated with a %AQ value that counts 0. In addition, 20 mA corresponds to the %AQ rate and can count up to 32,000 times. When operating in the range of 4 to 20 mA, the value of the 0% AQ count matches the output current of 4 mA. The 32,000% AQ meter values also match output currents up to 20 mA.

When the GE Fanuc IC200ALG326 current analog output module is installed in the PLC rack, it will convert a negative value of 0 mA regardless of the specified range. If this module is controlled by a network interface unit or NIU, a negative value changes the command to the low range. The output range of the IC200ALG326 module is the default, which allows easy configuration at the same time as jumpers that help modify the output range. The use of jumpers allows the output to remain in its last state or default communication and power when the backplane is interrupted or the PLC is not working. The output point continues in its default or final state until the backplane provides different output data or until the field power is disconnected.

☆型号：IC200ALG326D 电流模拟输出模块 具有 8 个单端通道
