IC693MDL241D 可编程逻辑控制器 具有一个公共端子

☆型号：IC693MDL241D 可编程逻辑控制器  具有一个公共端子

【产品详情】

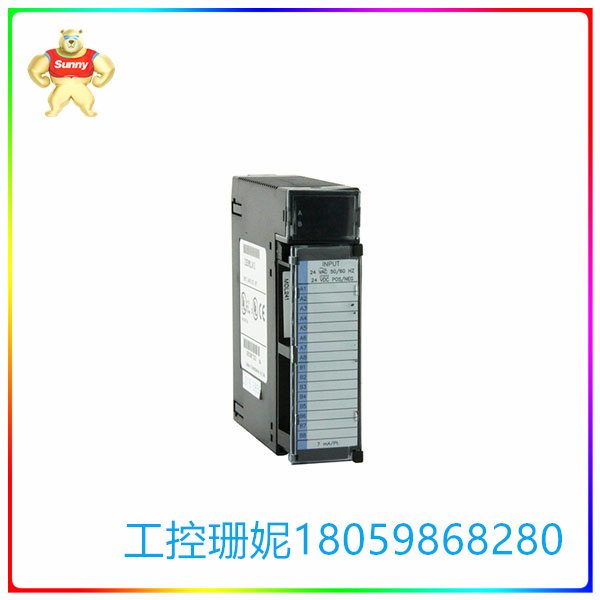

IC693MDL241是 90-30 系列可编程逻辑控制器 （PLC） 系列的分立式输入模块。该模块在一个输出组中具有十六 （16） 个输出通道，具有一个公共端子。它在 0-30 VDC 或 0-30 VAC 的输入电压范围内运行，而模块的额定电压为 24 VAC / 24 VDC。该模块支持二进制或开/关或双状态输入设备的接线，例如限位开关、按钮开关、接近开关、辅助触点和类似设备。IC693MDL241配有两 （2） 排 LED 状态指示灯，用于描述每个输入通道的通电情况。在额定电压下主动接收 7 mA 输入电流的输入通道激活了相应的 LED。除了 LED 指示灯外，还提供模块插件，其中可以编写简短描述或输入标签，以便于识别输入通道。该模块兼容安装在 90-30 系列 PLC 平台的 5 插槽或 10 插槽底板上。输入通道的导通电压额定值为 11.5 - 30 VAC/VDC，而关断状态电压为 0 - 4 VDC/VAC。同样，最大导通电流为3.2 mA，而最大关断电流为1 mA。该模块的导通信号转换延迟为 12 ms，而关断响应时间为 28 ms。当所有输入都处于逻辑 1 状态时，该模块的额定功耗为 80 mA @ 5 VDC，隔离式 24 VDC 背板总线或用户提供的外部电源的额定功耗为 125 mA。

IC693MDL241模块是GE Fanuc制造的正/负输入模块，是90-30系列PLC系统的一部分。它的工作电压额定值为 24 伏 AC/DC，具有一组 16 个输入点，所有输入点都位于一个公共电源输入端子中。该模块设计用于交流或直流操作员提供的输入电源，因此在直流输入模式下可以具有正或负逻辑特性。这些输入特性适用于各种用户提供的输入单元，如按钮、电子接近开关和限位开关。IC693MDL241 模块的输入电压范围为 0 至 30 伏交流或直流，频率为 50 至 60 赫兹，额定电压下的典型输入电流为 7 毫安。它的导通状态电压为 11.5 至 30 伏交流或直流，关断状态电压为 0 至 4 伏交流或直流。

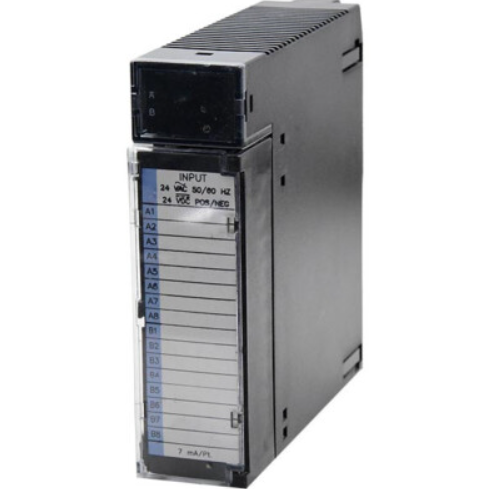

GE IC693MDL241模块的最小导通电流为 3.2 毫安，最大关断电流为 1 安培，关闭时响应时间为 28 毫秒，开启时响应时间为 12 毫秒。当电流通过输入点时，输入状态表中的结果是逻辑 1 （%I）。操作员可以提供运行现场设备所需的电源，或使用隔离的 24 伏直流输出电压源作为直流输入的电源。GE Fanuc IC693MDL241模块顶部的每个点都具有 LED 开/关状态指示灯。LED 块将 LED 分为 2 个水平行，每个行有 8 个绿色 LED。顶部 LED 行的标记从 A1 到 A8 的点 1 到 8，而底部行的 LED 行从 B1 到 B8 标记，用于 9 到 16 点。

☆型号：IC693MDL241D 可编程逻辑控制器  具有一个公共端子

【英文介绍】

The IC693MDL241 is a discrete input module in the 90-30 series Programmable Logic Controller (PLC) series. The module has sixteen (16) output channels in one output group, with a common terminal. It operates in the input voltage range of 0-30 VDC or 0-30 VAC, while the module is rated at 24 VAC / 24 VDC. The module supports wiring of binary or on/off or dual state input devices such as limit switches, push button switches, proximity switches, auxiliary contacts and similar devices. The IC693MDL241 is equipped with two (2) bars of LED status indicators to describe the power-up of each input channel. An input channel that actively receives 7 mA of input current at rated voltage activates the corresponding LED. In addition to LED indicators, module plugins are available in which short descriptions or input labels can be written to facilitate identification of input channels. The module is compatible for installation on 5-socket or 10-socket baseboards of 90-30 series PLC platforms. The on-voltage rating for the input channel is 11.5-30 VAC/VDC, while the off state voltage is 0-4 VDC/VAC. Similarly, the maximum conduction current is 3.2 mA, while the maximum turn-off current is 1 mA. The module has a signal conversion delay of 12 ms and a turn-off response time of 28 ms. When all inputs are in the logical 1 state, the module is rated at 80 mA @ 5 VDC, and the isolated 24 VDC backplane bus or user-supplied external power supply is rated at 125 mA.

The IC693MDL241 module is a positive/negative input module manufactured by GE Fanuc and is part of the 90-30 series PLC system. It has an operating voltage rating of 24 volts AC/DC and has a set of 16 input points, all of which are located in a common power input terminal. The module is designed for use with input power supplied by AC or DC operators, so it can have positive or negative logic characteristics in DC input mode. These input characteristics apply to a variety of user-supplied input units, such as buttons, electronic proximity switches, and limit switches. The IC693MDL241 module has an input voltage range of 0 to 30 volts AC or DC, a frequency of 50 to 60 Hz, and a typical input current of 7 mA at rated voltage. It has an on-state voltage of 11.5 to 30 volts AC or DC, and a off state voltage of 0 to 4 volts AC or DC.

The GE IC693MDL241 module has a minimum on-current of 3.2 mA, a maximum on-off current of 1 amp, and a response time of 28 ms when off and 12 ms when on. When the current passes through the input point, the result in the input status table is logic 1 (%I). The operator can supply the power needed to run the field equipment, or use an isolated 24-volt DC output voltage source as the power source for the DC input. Each point on the top of the GE Fanuc IC693MDL241 module has an LED on/Off status indicator. The LED block divides the LED into 2 horizontal rows with 8 green leds in each row. The top LED row is marked with points 1 to 8 from A1 to A8, while the bottom LED row is marked with points B1 to B8 for 9 to 16.
