IC693PWR330C 高容量电源模块 用于指示各种状态

☆型号：IC693PWR330C 高容量电源模块 用于指示各种状态

【产品详情】

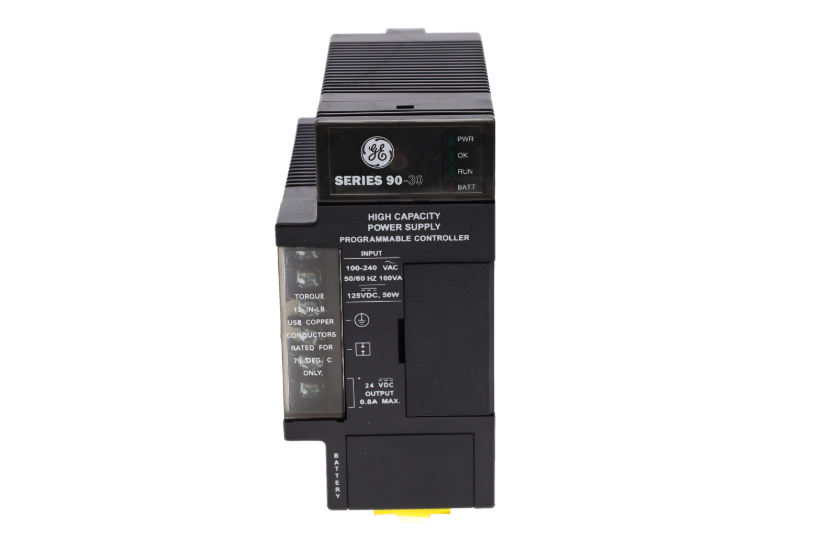

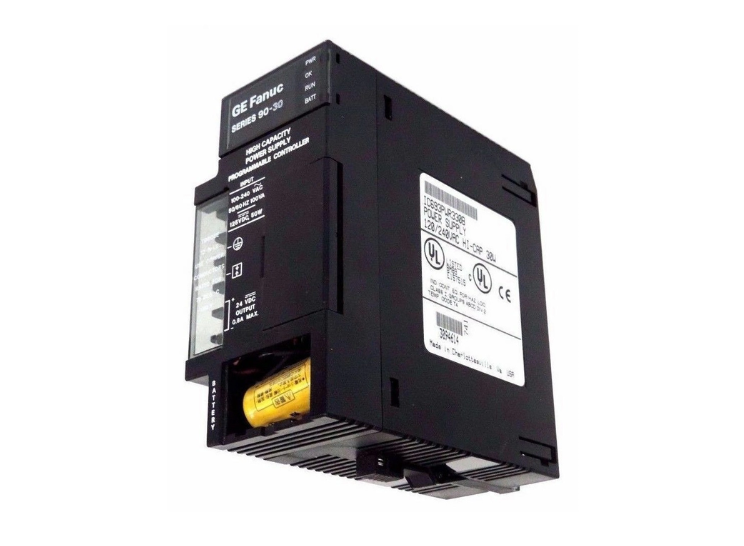

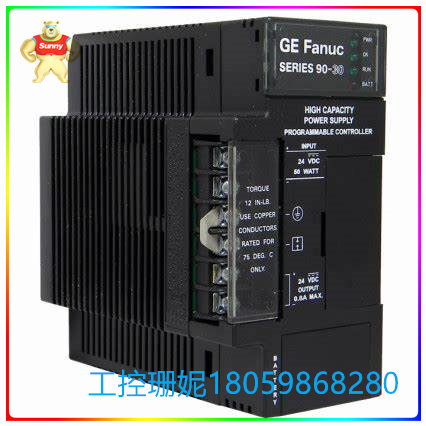

该IC693PWR330是一款高容量电源模块，属于 90-30 系列可编程逻辑控制器 （PLC） 产品系列。与标准电源相比，IC693PWR330大容量电源模块允许将所有 30 瓦负载能力消耗到 +5VDC 输出。这使得电源可用于+5VDC需要更高电流容量的应用，通常用于较大的90-30 PLC机架。此电源只能安装在机架最左侧的插槽中。它主要用于提供背板电源，使连接到背板的模块能够使用。

IC693PWR330有三 （3） 个输出。这些输出是 +5 VDC 输出、+24 VDC 继电器电源输出，为 90-30 系列输出继电器上的电子电路供电，以及隔离式 +24 VDC，由一些 90-30 模块内部使用，也可用于为 24 VDC 输入卡提供外部电源。该电源具有 30 瓦的负载能力。该负载能力是所有输出的总负载。单独，单个最大输出 30 瓦（+5VDC）、20 瓦（+24VDC）和 15 瓦（+24VDC）继电器输出。

这款大容量电源具有 LED 状态指示灯，用于指示各种状态。该 LED 指示灯包括 PWR LED，用于监控模块是否接收到足够的外部电源;OK LED表示模块整体运行状态;RUN LED 和 BATT LED 指示电池电量。

该IC693PWR330具有嵌入式 RS485 通信端口。此端口用于将电源连接到台式机或笔记本电脑工作站、GE Fanuc 手持编程器和其他兼容的串行设备。

IC693PWR330模块的最短保持时间为 20 毫秒。电源装置具有工业保护功能。它具有 5 伏直流输出的过压和过流保护限制，分别为 6.4 至 7 伏和 7 安培。该 AC/DC 电源装置有 6 个用于用户连接的端子。它支持交流和直流电源连接。

对于交流电源连接，来自 120 伏交流电源（也称为 L1、L2）的热线、中性线和地线以及来自 240 伏交流电源的地线通过使用位于 GE Fanuc 系列 90-30 IC693PWR330电源模块正面的顶部 3 个端子连接到系统。同样，对于直流电源。使用 +ve 和 -ve 线从 125 伏直流额定电源到连接器上的顶部 2 端子。这些连接对电源的极性敏感。IC693PWR330模块配有RS 485通信端口，用于串行通信。该装置已通过 UL 和 CE 标准认证。

☆型号：IC693PWR330C 高容量电源模块 用于指示各种状态

【英文介绍】

The IC693PWR330 is a high-capacity power module that belongs to the 90-30 series Programmable Logic Controller (PLC) product family. The IC693PWR330 high capacity power module allows all 30 watts of load capacity to be consumed to +5VDC output compared to standard power supplies. This allows the power supply to be used in applications where +5VDC requires a higher current capacity, typically for larger 90-30 PLC racks. This power supply can only be installed in the left-most slot of the rack. It is mainly used to provide power to the backplane so that the modules connected to the backplane can be used.

The IC693PWR330 has three (3) outputs. These outputs are the +5 VDC output, the +24 VDC relay power output, which powers the electronic circuits on the 90-30 series output relays, and the isolated +24 VDC, which is used internally by some 90-30 modules and can also be used to provide external power to the 24 VDC input card. The power supply has a load capacity of 30 watts. This load capacity is the total load of all outputs. Individually, a single maximum output of 30 watts (+5VDC), 20 watts (+24VDC) and 15 watts (+24VDC) relay outputs.

This high-capacity power supply features LED status indicators to indicate various states. The LED indicator includes the PWR LED, which is used to monitor whether the module receives sufficient external power supply; OK LED indicates the overall operating status of the module; The RUN LED and BATT LED indicate the battery level.

The IC693PWR330 has an embedded RS485 communication port. This port is used to connect power to desktop or laptop workstations, GE Fanuc handheld programmers, and other compatible serial devices.

The IC693PWR330 module has a minimum hold time of 20 milliseconds. The power supply unit has industrial protection function. It has overvoltage and overcurrent protection limits of 5 volts DC output, 6.4 to 7 volts and 7 amps, respectively. The AC/DC power unit has 6 terminals for user connection. It supports AC and DC power connections.

For AC power connections, the hot, neutral, and ground wires from the 120 volt AC power supply (also known as L1, L2) and the ground wires from the 240 volt AC power supply are connected to the system by using the top 3 terminals located on the front of the GE Fanuc Series 90-30 IC693PWR330 power module. Same for DC power supply. Use the +ve and -ve wires from the 125 volt DC rated power supply to the top 2 terminals on the connector. These connections are sensitive to the polarity of the power supply. The IC693PWR330 module is equipped with an RS 485 communication port for serial communication. The device is certified to UL and CE standards.
