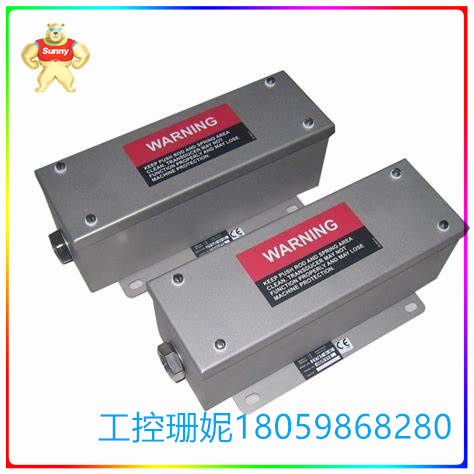

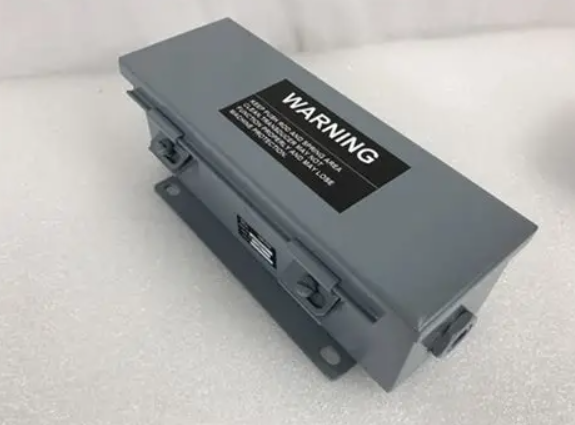

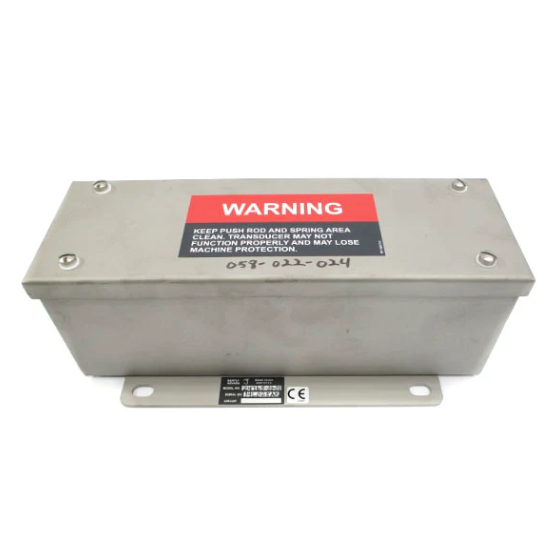

24765-01-01 箱体膨胀传感器组件 外壳膨胀传感器组件

☆型号：24765-01-01 箱体膨胀传感器组件  外壳膨胀传感器组件

【产品详情】

品牌 ： Bently Nevada

产品编号: 24765-01-01

产品类型 ： 外壳膨胀传感器组件 （dc）

美国制造

线性范围选项：01 = 25.4 mm （1.00 in）

弹簧选项 ： 01 = 带弹簧复位

电气比例因数：0.346 V/mm （8.79 V/in）。

线性范围：25.4 毫米（1.00 英寸）。

工作温度 ： -18 ？C 到 +71 ？C （0 ？F 至 +160 ？F).

储存温度 ： -54 ？C 到 +93？C （-65 ？F 至 +200 ？F).

重量 ： 2.3 公斤

装运重量 ： 4 Kg

24765-01-01箱体膨胀传感器组件是一种用于监测机械设备箱体膨胀的传感器。这种传感器通常用于监测离心式压缩机、汽轮机等大型旋转机械的机壳膨胀，以确保设备正常运行和预防潜在的故障。

该传感器组件通常由传感器、测量电路和数据处理单元组成。传感器部分负责感应机壳的膨胀变化，并将感应到的信号转换为电信号；测量电路则负责对电信号进行放大、滤波和转换等处理，以获得准确的测量结果；数据处理单元则负责对测量结果进行分析和处理，以判断设备的运行状态和提供相应的控制信号。

在实际应用中，该传感器组件通常安装在机械设备的关键部位，如机壳上。感应到的机壳膨胀信号被转换为电信号后，通过电缆或无线方式传输到控制系统或数据采集系统中，进行实时监测和记录。如果机壳膨胀超过预设的安全范围，系统会发出报警信号，提醒操作员采取相应措施。

此外，该传感器组件还具有高精度、高稳定性和可靠性的特点，能够准确地监测机壳的膨胀变化，并提供准确的测量结果。同时，该传感器组件还具有易于安装、调试和维护的特点，可以方便地与各种控制系统和数据采集系统集成，实现设备的自动化监测和故障预警。

☆型号：24765-01-01 箱体膨胀传感器组件  外壳膨胀传感器组件

【英文介绍】

Brand: Bently Nevada

Product Number: 24765-01-01

Product Type: Housing Expansion Sensor Assembly (dc)

Made in the USA

Linear range options: 01 = 25.4 mm (1.00 in)

Spring option: 01 = with spring reset

Electrical scale factor: 0.346 V/mm (8.79 V/in).

Linear range: 25.4 mm (1.00 in).

Operating temperature: -18? C to +71? C (0? F to +160? F).

Storage temperature: -54? C to +93? C (-65? F to +200? F).

Weight: 2.3 kg

Shipping weight: 4 Kg

24765-01-01 Box expansion sensor assembly is a sensor for monitoring the box expansion of mechanical equipment. This type of sensor is usually used to monitor the housing expansion of large rotating machinery such as centrifugal compressors and steam turbines to ensure the normal operation of the equipment and prevent potential failures.

The sensor assembly is usually composed of a sensor, a measurement circuit and a data processing unit. The sensor part is responsible for sensing the expansion of the housing and converting the induced signal into an electrical signal; The measuring circuit is responsible for amplifying, filtering and converting the electrical signal to obtain accurate measurement results. The data processing unit is responsible for analyzing and processing the measurement results to judge the operating state of the equipment and provide corresponding control signals.

In practical applications, the sensor assembly is usually installed in key parts of the mechanical equipment, such as the housing. After the induced expansion signal is converted into an electrical signal, it is transmitted to the control system or data acquisition system through cable or wireless mode for real-time monitoring and recording. If the casing expands beyond the preset safety range, the system will issue an alarm signal to remind the operator to take appropriate measures.

In addition, the sensor assembly also has the characteristics of high precision, high stability and reliability, which can accurately monitor the expansion changes of the housing and provide accurate measurement results. At the same time, the sensor component also has the characteristics of easy installation, debugging and maintenance, and can be easily integrated with various control systems and data acquisition systems to realize automatic monitoring and fault warning of equipment.
