1900/65A-01-01-03-00-00
1900/65A-01-01-03-00-00

1900/65A-01-01-03-00-00 通用设备监视器 具有持续监控

型号:1900/65A-01-01-03-00-00通用设备监视器具有持续监控【产品详情】品牌:BentlyNevada产品编号型号:1900/65A-01-0

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

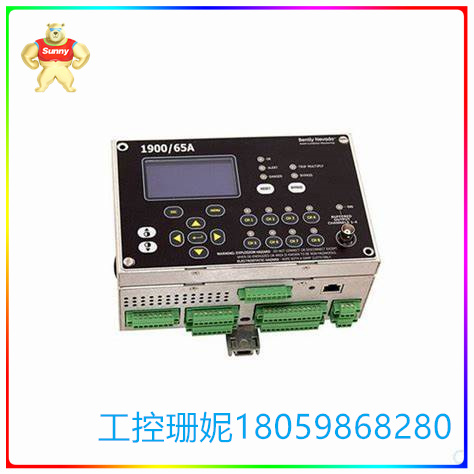

型号:1900/65A-01-01-03-00-00 通用设备监视器 具有持续监控







【产品详情】





品牌 : Bently Nevada


产品编号型号:1900/65A-01-01-03-CN-00


产品类型 : 1900/65A 通用设备监视器


美国制造


可以添加原产地证书(COO)


电源选项:01 = 110 至 220 Vac @ 50 至 60 Hz(外部电源)


显示选项:01 = 连接显示器(无电缆)


安装选项 : 03 = 玻璃纤维 NEMA 4X/IP66 WP 外壳,带门窗


机构批准选项:CN = 特定国家/地区的批准(CN 批准选项快速参考指南和现场通知信在下载部分)


通信选项:00 = 无


工作温度:-20 至 +70 ºC(-4 至 +158 ºF)


储存温度:-30 至 +90 ºC(-22 至 +194 ºF)


工作湿度:95%,无冷凝,最大值


显示器模块尺寸(长 x 宽 x 高):19.69 厘米 x 14.94 厘米 x 7.44 厘米


显示模块尺寸(长 x 宽 x 高):19.69 厘米 x 14.94 厘米 x 3.28 厘米


装运重量 : 8 Kg


1900/65A-01-01-03-00-00通用设备监视器是一种用于监控和保护各种设备的仪器。它具有持续监控和保护设备的功能,适用于各种应用和行业。该监视器的低成本使其成为通用机器和过程的理想解决方案,可以从持续监控和保护中受益。


该监视器提供四个传感器输入和四个温度输入,软件可以配置每个传感器输入以支持不同类型的传感器,如2线和3线加速度计、速度传感器或接近传感器。每个温度输入支持不同类型的热电偶和RTD。此外,该监视器还提供六个继电器输出、四个4-20mA记录器输出和一个专用缓冲输出。这些输出可以用于控制和驱动外部设备,并记录和传输数据。


该监视器支持通过以太网和软件可配置的Modbus通信RS232/485串口进行通信。它可以配置信息永久存储在非易失性存储器中,以确保数据的安全性和可靠性。此外,该监视器还具有小包装的特点,便于安装和使用。




型号:1900/65A-01-01-03-00-00 通用设备监视器 具有持续监控




英文介绍





Brand: Bently Nevada


Product number Model: 1900/65A-01-01-03-CN-00


Product Type: 1900/65A Universal device monitor


Made in the USA


Certificate of Origin (COO) can be added


Power Options: 01 = 110 to 220 Vac @ 50 to 60 Hz (external power)


Display options: 01 = Connect display (without cable)


Installation options: 03 = fiberglass NEMA 4X/IP66 WP housing with doors and Windows


Agency Approval options: CN = country-specific approval (Quick reference guide and on-site notification letter for CN Approval options in Download section)


Communication options: 00 = None


Operating temperature: -20 to +70 ºC (-4 to +158 ºF)


Storage temperature: -30 to +90 ºC (-22 to +194 ºF)


Operating humidity: 95%, non-condensing, Max


Display module dimensions (L x W x H) : 19.69 cm x 14.94 cm x 7.44 cm


Display module dimensions (L x W x H) : 19.69 cm x 14.94 cm x 3.28 cm


Shipping weight: 8 Kg


1900/65A-01-01-03-00-00 The Universal Device Monitor is an instrument used to monitor and protect a variety of devices. It has the ability to continuously monitor and protect equipment for a variety of applications and industries. The low cost of this monitor makes it an ideal solution for general-purpose machines and processes that can benefit from continuous monitoring and protection.


The monitor offers four sensor inputs and four temperature inputs, and the software can configure each sensor input to support different types of sensors, such as 2-wire and 3-wire accelerometers, speed sensors, or proximity sensors. Each temperature input supports different types of thermocouples and RTDS. In addition, the monitor offers six relay outputs, four 4-20mA logger outputs, and a dedicated buffer output. These outputs can be used to control and drive external devices, and to record and transmit data.


The monitor supports communication over Ethernet and software-configurable Modbus communication RS232/485 serial port. It can configure information to be permanently stored in non-volatile memory to ensure data security and reliability. In addition, the monitor also has the characteristics of small packaging, easy to install and use.




型号:1900/65A-01-01-03-00-00 通用设备监视器 具有持续监控
