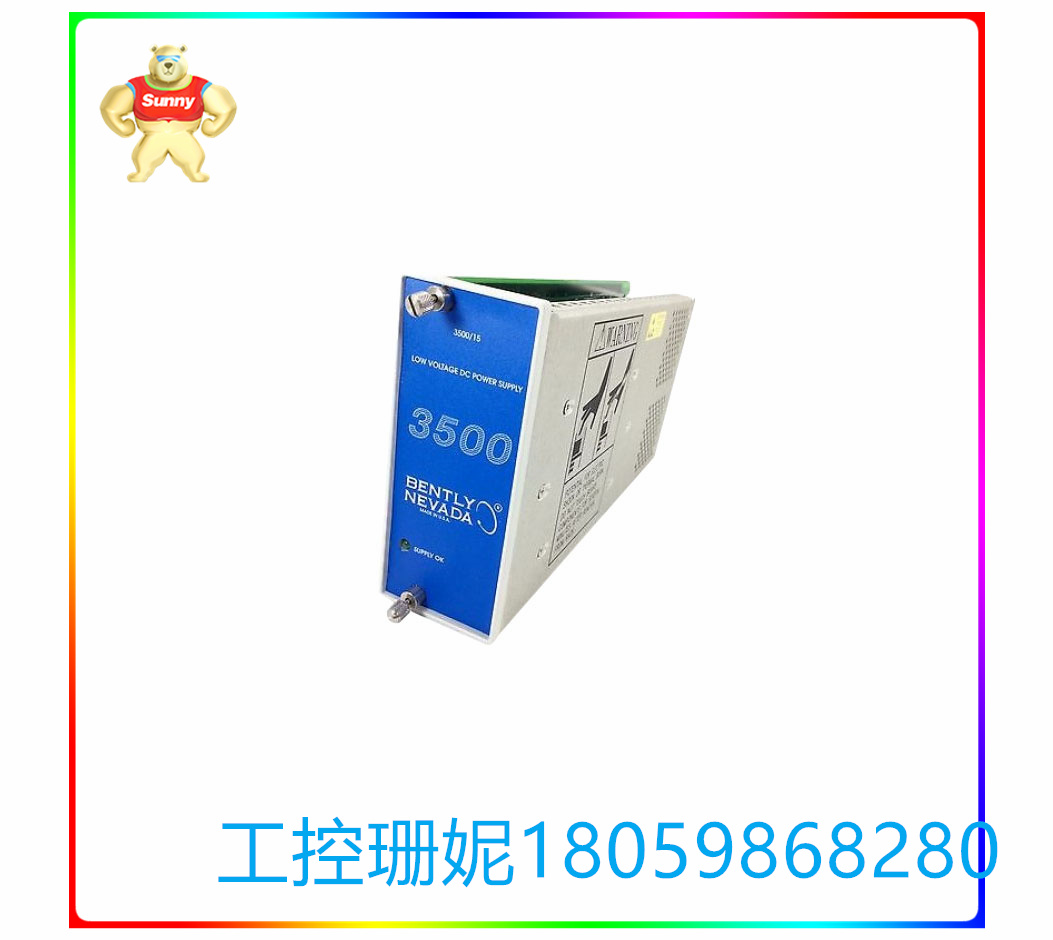

☆型号：3500/15-02-02-01 半高模块 传统高压交流电
【产品详情】
描述
3500/15电源模块为半高模块，必须安装
安装在机柜左侧的指定槽位上。3500年
机架可以包含一个或两个电源
交流和直流的组合。任何一种电源都可以为整个机架供电。
当机柜中安装了两个电源时，其中一个在机柜中
较低的槽作为主要电源，和其他在上层
槽位作为备用电源。如果安装，第二个电源是
主服务器的备份。
插拔电源模块不需要更换电源模块
中断运行的机架只要有第二个电源
安装。
3500/15电源接受宽范围的输入
电压，并将其转换为可接受的电压
其他3500个模块。可选配以下电源
3500系列机械保护系统
n传统交流电源
n通用交流电源
n高压直流电源
n低压直流电源
以下电压可选:
传统高压交流电
说明该选项采用交流供电方式
PIM (High Voltage AC Power Input Module)模块。
输入
电压
额定220伏
175 ~ 264 Vac
rms 247至373 Vac pk
使用交流电源输入模块安装
Rev. R和AC Power Supply Modules
到Rev. M需要175到250的输入电压
真空吸尘器rms。
输入
频率47 ~ 63hz
☆型号：3500/15-02-02-01 半高模块 传统高压交流电
【英文介绍】
Description
The 3500/15 Power Supply is a half-height module and must be
installed in designated slots on the left side of the rack. The 3500
rack can contain one ortwo power supplies with any
combinations of AC and DC. Either supply can power a fullrack.
When two power supplies are installed in a rack, the one in the
lower slot acts as the primary supply, and the otherin the upper
slot acts as the backup supply. If installed, the second supply is
the backup forthe primary one.
Removing orinserting either power supply module does not
disrupt operation of the rack as long as a second power supply
is installed.
The 3500/15 Power Supply accepts a wide range of input
voltages and converts them to voltages acceptable for use by
other 3500 modules. The following power supplies are available
with the 3500 Series Machinery Protection System:
n Legacy AC Power
n Universal AC Power
n High Voltage DC Power Supply
n Low Voltage DC Power Supply
The following voltage options are available:
Legacy High Voltage AC
Description This option uses the AC power supply and the
High Voltage AC Power Input Module (PIM).
Input
voltage
220 Vac nominal
175 to 264 Vac
rms 247 to 373 Vac pk
Installations using AC Power Input Modules (PIM)
prior to Rev. R and AC Power Supply Modules prior
to Rev. M require an input voltage of 175 to 250
Vac rms.
Input
frequency 47 to 63 Hz
