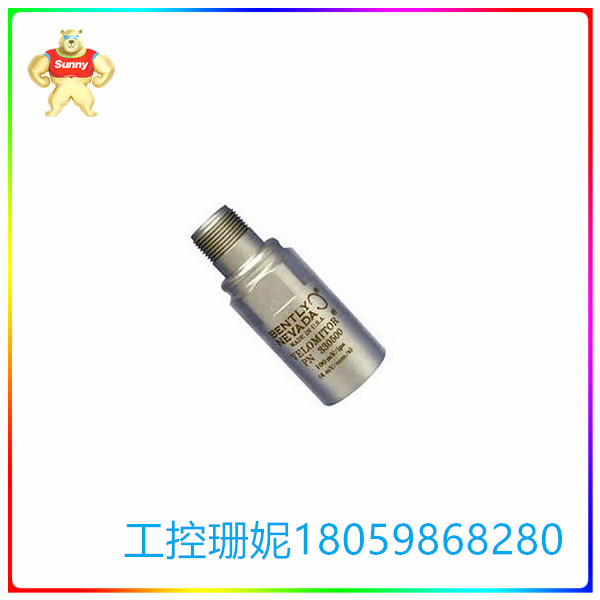

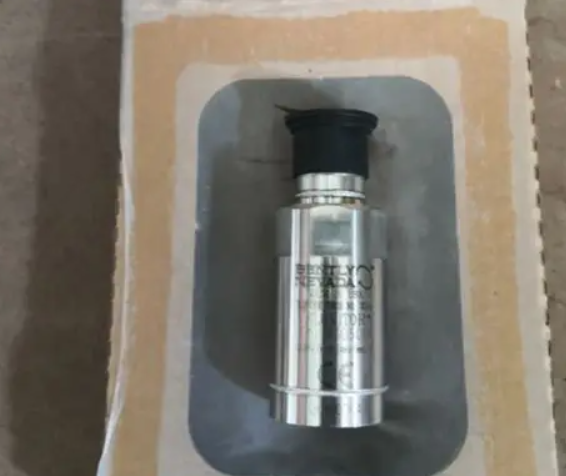

☆型号:330500-00-02压电速度传感器 测量速度和振动
【产品详情】
品牌 : Bently Nevada
产品编号: 330500-02-00
产品类型 : Velomitor Piezo-velocity Sensor
美国制造
可以添加原产地证书(COO)
安装螺纹适配器选项 : 02 = M8 x 1
机构批准选项:00 = 不需要
安装扭矩 : 最大 46 kg cm (40 in-lb)
连接器:2 针 Mil-C-5015 气密密封,316L 不锈钢外壳。
表壳材质:316L不锈钢。
高度:63.2毫米(2.49英寸)。
直径:25.3毫米(0.995英寸)。
重量 :0.142 公斤
装运重量 : 2 Kg
330500-00-02是一款压电速度传感器,主要用于测量速度和振动。该传感器采用压电原理,能够将机械振动转换成电信号,并通过电子测量系统进行测量和输出。
330500-00-02压电速度传感器具有高灵敏度、高分辨率和高可靠性的特点,能够测量微小的振动和速度变化。它采用固态设计,没有移动部件,因此不会遭受机械退化和磨损,具有较长的使用寿命。
该传感器通常与控制系统配合使用,如PLC、DCS等,实现自动化控制和监测。它可以广泛应用于各种需要进行速度和振动测量的工业自动化和控制系统的应用,如发动机、轴承箱、齿轮箱等机械设备的状态监测和故障诊断。
总的来说,330500-00-02压电速度传感器是一款功能强大、性能稳定的工业自动化控制设备,能够为各种需要进行速度和振动测量的应用提供准确可靠的测量结果。
☆型号:330500-00-02压电速度传感器 测量速度和振动
【英文介绍】
Brand: Bently Nevada
Product Number: 330500-02-00
Product type: Velomitor Piezo-velocity Sensor
Made in the USA
Certificate of Origin (COO) can be added
Install threaded adapter options: 02 = M8 x 1
Agency approval option: 00 = Not required
Mounting torque: up to 46 kg cm (40 in-lb)
Connector: 2-pin Mil-C-5015 airtight seal, 316L stainless steel housing.
Case material: 316L stainless steel.
Height: 63.2 mm (2.49 in).
Diameter: 25.3 mm (0.995 in).
Weight: 0.142 kg
Shipping weight: 2 Kg
The 330500-00-02 is a piezoelectric speed sensor designed to measure speed and vibration. Using the piezoelectric principle, the sensor is able to convert mechanical vibrations into electrical signals, which are measured and output by an electronic measurement system.
The 330500-00-02 piezoelectric speed sensor is characterized by high sensitivity, high resolution and high reliability, and is capable of measuring small vibrations and speed changes. It has a solid state design and no moving parts, so it does not suffer from mechanical degradation and wear, and has a long service life.
The sensor is usually used in conjunction with the control system, such as PLC, DCS, etc., to achieve automatic control and monitoring. It can be widely used in various industrial automation and control system applications that require speed and vibration measurement, such as condition monitoring and fault diagnosis of mechanical equipment such as engines, bearing boxes, gear boxes and so on.
Overall, the 330500-00-02 piezoelectric speed sensor is a powerful and stable industrial automation control device that provides accurate and reliable measurement results for a variety of applications requiring speed and vibration measurement.
