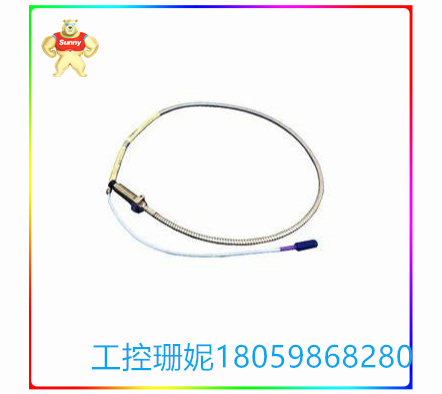

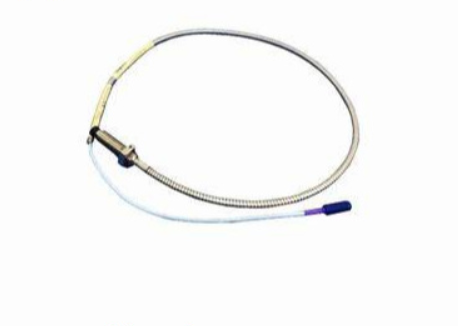

☆型号:330704-000-050-10-02-05 接近探头 微型同轴 ClickLocTM 连接器
【产品详情】
品牌 : Bently Nevada
产品编号: 330704-000-050-10-02-00
产品类型 : 3300 XL 11 mm 接近探头
美国制造
可以添加原产地证书(COO)
外壳长度选项:050 = 50mm
总长度选项:10 = 1.0 米(3.3 英尺)
连接器和电缆类型选项:02 = 微型同轴 ClickLocTM 连接器,标准电缆
机构批准选项:00 = 不需要
探头电缆规格: 75 ?三轴氟乙丙烯 (FEP) 绝缘探头电缆,探头总长度如下:1、5 或 9 米。
探头尖端材料:聚苯硫醚 (PPS)。
探头外壳材料:AISI 304不锈钢(SST)。
探头压力:3300 XL 探头设计用于密封探头尖端和外壳之间的压差。探头密封材料由氟橡胶® O形圈组成。探头在装运前未进行压力测试。如果您需要为您的应用测试压力密封,请联系我们的定制设计部门
接近探头是一种传感器,主要用于检测物体是否存在或者检测物体是否移动。接近探头通常由敏感元件和转换元件组成,敏感元件负责感知物体的接近,转换元件则将感知到的信号转换为可处理的电信号。
接近探头的工作原理通常是通过测量电磁场的变化或者测量电感、电容等参数的变化来检测物体的接近。当物体接近探头时,会干扰电磁场或者影响电感、电容等参数,从而引起探头输出的电信号发生变化。
接近探头具有多种应用,如自动化生产线上的物体检测、机器人视觉系统中的物体识别、安防系统中的入侵检测等。它能够快速、准确地检测物体的接近,为控制系统提供实时的反馈信号,从而实现自动化控制和智能感知。
☆型号:330704-000-050-10-02-05 接近探头 微型同轴 ClickLocTM 连接器
【英文介绍】
Brand: Bently Nevada
Product Number: 330704-000-050-10-02-00
Product Type: 3300 XL 11 mm proximity probe
Made in the USA
Certificate of Origin (COO) can be added
Shell length option: 050 = 50mm
Total length options: 10 = 1.0 m (3.3 ft)
Connector and cable type options: 02 = Miniature coaxial ClickLocTM connector, standard cable
Agency approval option: 00 = Not required
Probe cable specification: 75? Triaxial fluoroethylene propylene (FEP) insulated probe cable, the total length of the probe is as follows: 1, 5 or 9 meters.
Tip material: polyphenylene sulfide (PPS).
Probe housing material: AISI 304 stainless steel (SST).
Probe pressure: The 3300 XL probe is designed to seal the pressure difference between the probe tip and the housing. The probe sealing material consists of fluororubber ® O-rings. Probes are not pressure tested prior to shipment. If you need to test pressure seals for your application, please contact our custom design department
A proximity probe is a sensor that is primarily used to detect whether an object is present or to detect whether an object is moving. The proximity probe usually consists of a sensing element, which senses the proximity of an object, and a conversion element, which converts the perceived signal into an electrical signal that can be processed.
The working principle of the proximity probe is usually to detect the proximity of an object by measuring changes in the electromagnetic field or measuring changes in parameters such as inductance and capacitance. When the object is close to the probe, it will interfere with the electromagnetic field or affect the inductance, capacitance and other parameters, resulting in changes in the electrical signal output of the probe.
Proximity probes have many applications, such as object detection on automated production lines, object recognition in robotic vision systems, and intrusion detection in security systems. It can detect the approach of objects quickly and accurately, and provide real-time feedback signals for the control system, so as to realize automatic control and intelligent perception.
