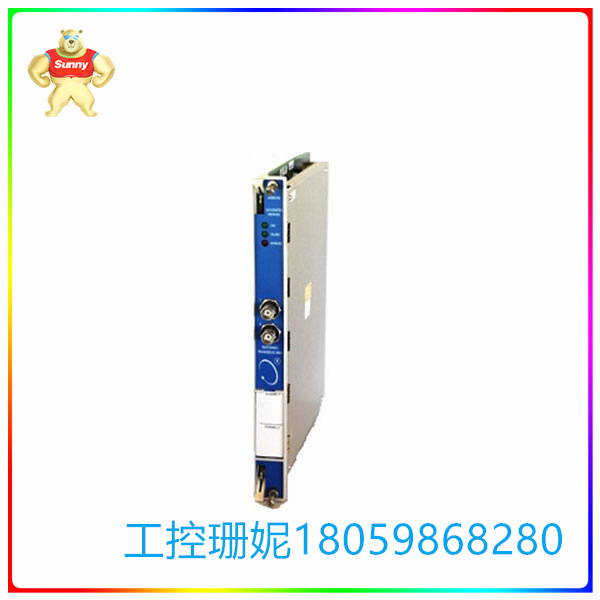

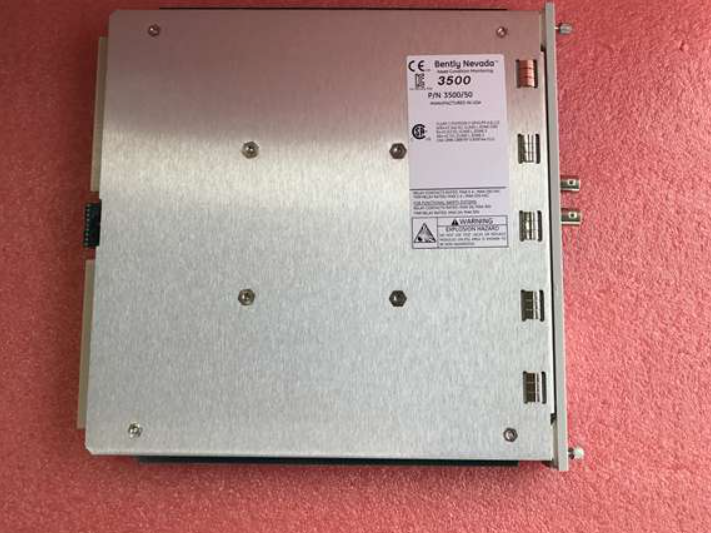

☆型号:3500/50 机械状态监测 转速计模块
【产品详情】
描述
3500/50M转速计模块是一个2通道模块,接受
输入接近探头或磁性拾取器,以确定轴
转速、转子加速度或转子方向。该模块
将这些测量值与用户可编程报警进行比较
设定值,并在违反设定值时产生警报。
转速表模块使用3500机架编程
配置软件。以下配置选项是
可用:
l速度监测、设定值报警、速度带报警
l速度监控,设定值报警和零速度
通知
l转速监测、设定值报警、转子加速
令人担忧的
l速度监控,设定值报警,反向旋转
通知
3500/50M转速表模块可以配置供应
调校键相量信号到3500机架背板使用
由其他监测员。因此,您不需要单独的Keyphasor
模块在机架中。
3500/50M转速计模块具有峰值保持功能,存储
最高速度,最高倒车速度,或倒车次数
机器达到的旋转数。您可以重置峰值。
☆型号:3500/50 机械状态监测 转速计模块
【英文介绍】
Description
The 3500/50M Tachometer Module is a 2-channel module that accepts
input from proximity probes or magnetic pickups to determine shaft
rotative speed, rotor acceleration, or rotor direction. The module
compares these measurements against user-programmable alarm
setpoints and generates alarms when the setpoints are violated.
The Tachometer Module is programmed using the 3500 Rack
Configuration software. The following configuration options are
available:
l Speed Monitoring, Setpoint Alarming and Speed Band Alarming
l Speed Monitoring, Setpoint Alarming and Zero Speed
Notification
l Speed Monitoring, Setpoint Alarming and Rotor Acceleration
Alarming
l Speed Monitoring, Setpoint Alarming and Reverse Rotation
Notification
The 3500/50M Tachometer Module can be configured to supply
conditioned Keyphasor signals to the backplane of the 3500 rack for use
by other monitors. Therefore, you don't need a separate Keyphasor
module in the rack.
The 3500/50M Tachometer Module has a peak hold feature that stores
the highest speed, the highest reverse speed, or the number of reverse
rotations that the machine has reached. You can reset the peak values.
