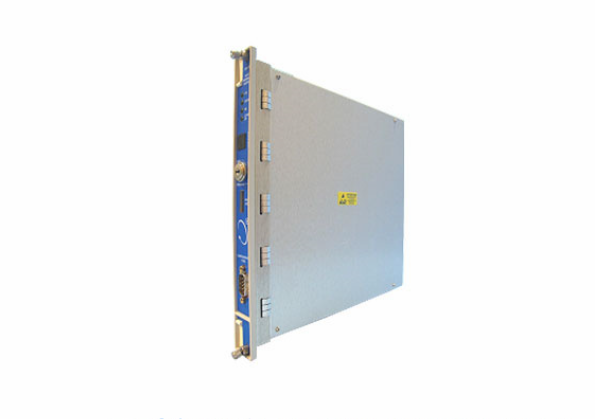

125696-01 4通道继电器模块  TMR继电器模块

【产品详情】

4通道继电器模块是一个全高模块，它提供四个继电器输出。任意数量的4通道继电器模块可以放置在右侧的任何插槽中瞬态数据接口模块。4-的每个输出通道继电器模块可以独立编程，以执行投票逻辑。4通道继电器模块上使用的每个继电器包括报警驱动逻辑。报警驱动逻辑的编程使用AND和or逻辑，并且可以使用报警输入(警报和危险状态)，不正常，或来自任何监控通道或任何机架中监视器通道的组合。你可以对该报警驱动器进行编程，以满足您的应用需求使用3500框架配置软件。

TMR继电器模块如何工作:3500/34 TMR继电器模块由两个主要部件组成:TMR继电器模块(两个)和TMR继电器I/O模块。编程后，两个TMR继电器模块并行执行相同的功能，有效地在两者之间提供冗余功能。

125696-01 4通道继电器模块  TMR继电器模块

【英文介绍】

The 4-channel relay module is a full-height module that provides four relay outputs. Any number of 4-channel relay modules can be placed in any slot on the right of the transient data interface module. Each of the 4- output channel relay modules can be programmed independently to perform voting logic. Each relay used on the 4-channel relay module includes alarm drive logic. The alarm driver logic is programmed using AND and or logic, and can use a combination of alarm inputs (alarm and danger status), abnormal, or from any monitoring channel or monitor channel in any rack. You can program the alarm driver to meet your application needs using the 3500 framework configuration software.

How the TMR Relay Module works :3500/34 The TMR relay module consists of two main components: the TMR Relay module (two) and the TMR Relay I/O module. After programming, two TMR relay modules perform the same function in parallel, effectively providing redundancy between the two.

125696-01 4通道继电器模块  TMR继电器模块
