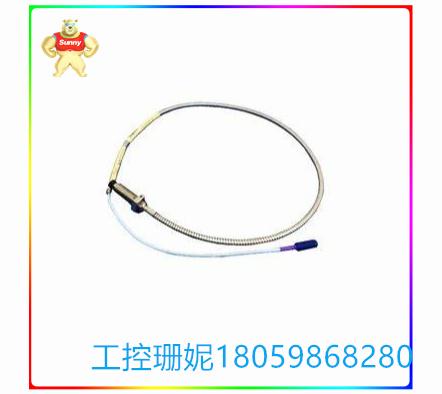

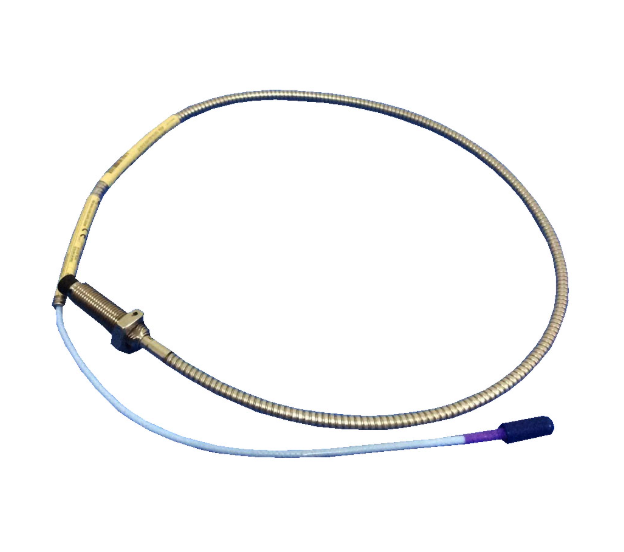

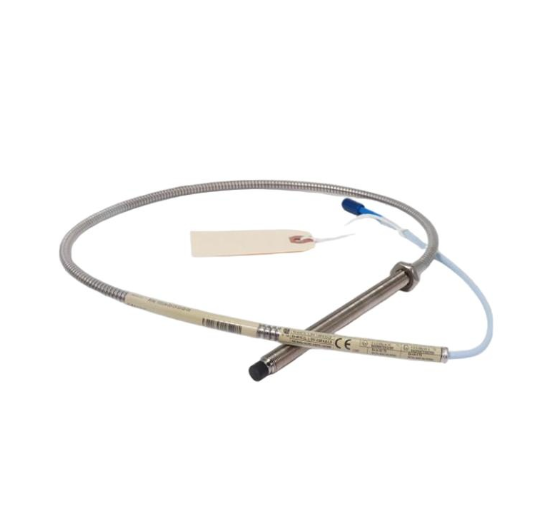

330704-000-100-10-02-00 本特利延伸线缆  接近探头

【产品详情】

品牌 ： Bently Nevada

产品编号: 330704-000-050-10-02-00

产品类型 ： 3300 XL 11 mm 接近探头

美国制造

可以添加原产地证书（COO）

外壳长度选项：050 = 50mm

总长度选项：10 = 1.0 米（3.3 英尺）

连接器和电缆类型选项：02 = 微型同轴 ClickLocTM 连接器，标准电缆

机构批准选项：00 = 不需要

探头电缆规格： 75 ？三轴氟乙丙烯 （FEP） 绝缘探头电缆，探头总长度如下：1、5 或 9 米。

探头尖端材料：聚苯硫醚 （PPS）。

探头外壳材料：AISI 304不锈钢（SST）。

探头压力：3300 XL 探头设计用于密封探头尖端和外壳之间的压差。探头密封材料由氟橡胶® O形圈组成。探头在装运前未进行压力测试。如果您需要为您的应用测试压力密封，请联系我们的定制设计部门

装运重量 ： 1 Kg

输入单元由8个按扭、8个开关和16个接插件组成，它们分别与PLC的16个输入点相接。

改变这些开关或按扭的通断状态，即可对主机输入所需要的开关量。

16个接插件可外接其它直流或开关量输入信号。

输出单元由24个二极管和24个接插件组成，它们分别与PLC的24个输出点相连。

发光二极管是否发光，即可表示输出点的状态，使用者可得到主机的输出信息。24个输出接插件可外接其它需要控制的设备。

330704-000-100-10-02-00 本特利延伸线缆  接近探头

【英文介绍】

Brand: Bently Nevada

Product Number: 330704-000-050-10-02-00

Product Type: 3300 XL 11 mm proximity probe

Made in the USA

Certificate of Origin (COO) can be added

Shell length option: 050 = 50mm

Total length options: 10 = 1.0 m (3.3 ft)

Connector and cable type options: 02 = Miniature coaxial ClickLocTM connector, standard cable

Agency approval option: 00 = Not required

Probe cable specification: 75? Triaxial fluoroethylene propylene (FEP) insulated probe cable, the total length of the probe is as follows: 1, 5 or 9 meters.

Tip material: polyphenylene sulfide (PPS).

Probe housing material: AISI 304 stainless steel (SST).

Probe pressure: The 3300 XL probe is designed to seal the pressure difference between the probe tip and the housing. The probe sealing material consists of fluororubber ® O-rings. Probes are not pressure tested prior to shipment. If you need to test pressure seals for your application, please contact our custom design department

Shipping weight: 1 Kg

The input unit consists of 8 buttons, 8 switches and 16 connectors, which are connected to the 16 input points of the PLC.

By changing the on/off state of these switches or pressing the button, you can input the required switch quantity to the host.

16 connectors for external access to other DC or switching input signals.

The output unit consists of 24 diodes and 24 connectors, which are connected to 24 output points of the PLC.

Whether the LED is luminous, it can indicate the state of the output point, and the user can get the output information of the host. 24 output connectors can be connected to other devices that need to be controlled.
