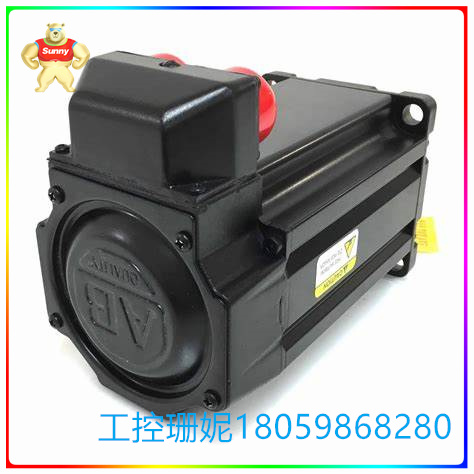

MPL-B430P-HJ22AA 交流伺服电机 低惯量无刷同步电机
【产品详情】
MPL-B430P-HJ22AA伺服电机是由Allen-Bradley制造的交流伺服电机,是MP系列伺服电机的一部分。MPL-B430P-HJ22AA伺服电机是一款低惯量无刷同步电机,峰值转速为5000转/分。MPL-B430P-HJ22AA 伺服电机可用于汽车、转换和材料包装应用。MPL-B430P-HJ22AA伺服电机的工作温度范围为0至40摄氏度。储存温度范围为 -30 至 70 摄氏度。伺服电机存放位置的相对湿度水平应保持在 5% 到 95% 之间。机器运行场所的气氛应无腐蚀性。MPL-B430P-HJ22AA 伺服电机的 IP 等级为 IP 50。如果安装了可选的轴封,则 IP 等级将上升到 IP 66。
MPL-B430P-HJ22AA 伺服电机专为 400 伏交流输入而设计。对于反馈,电机上内置了每转 2000 行的增量编码器。磁体堆叠长度为 76.2 毫米。电机框架尺寸为 115 毫米。MPL-B430P-HJ22AA 的输出功率为 2.2 千瓦。峰值失速转矩、连续失速转矩和转子惯量的电机规格分别为 19.8 N-m、6.55 N-m 和 000038 kg-m2。MPL-B430P-HJ22AA伺服电机带有标准电机选项。电机随附一个轴键。但是,不包括轴封。MPL-B430P-HJ22AA 伺服电机上不提供制动器。如果需要,可以与 Allen-Bradley 单独订购重 7.3 公斤的可选 24 伏直流制动器。在电机安装过程中,IEC公制电机法兰上提供的FF型孔可用于安装电机。
MPL-B430P-HJ22AA 交流伺服电机 低惯量无刷同步电机
【英文介绍】
The MPL-B430P-HJ22AA servo motor is an AC servo motor manufactured by Allen-Bradley and is part of the MP family of servo motors. The MPL-B430P-HJ22AA servo motor is a low inertia brushless synchronous motor with a peak speed of 5000 RPM. The MPL-B430P-HJ22AA servo motor can be used in automotive, conversion and material packaging applications. The operating temperature range of the MPL-B430P-HJ22AA servo motor is 0 to 40 degrees Celsius. Storage temperature range is -30 to 70 degrees Celsius. The relative humidity level of the servo motor storage location should be maintained between 5% and 95%. The atmosphere of the machine running place should be non-corrosive. The IP rating of the MPL-B430P-HJ22AA servo motor is IP 50. If an optional shaft seal is installed, the IP level rises to IP 66.
The MPL-B430P-HJ22AA servo motor is designed for 400 volt AC input. For feedback, an incremental encoder of 2000 rows per revolution is built into the motor. The magnet stack length is 76.2 mm. The motor frame size is 115 mm. The output power of the MPL-B430P-HJ22AA is 2.2 kW. The motor specifications for peak stall torque, continuous stall torque and rotor inertia are 19.8 N-m, 6.55 N-m and 000038 kg-m2, respectively. The MPL-B430P-HJ22AA servo motor comes with a standard motor option. A shaft key is attached to the motor. However, shaft seals are not included. No brake is provided on the MPL-B430P-HJ22AA servo motor. Optional 24 volt DC brakes weighing 7.3kg can be ordered separately with Allen-Bradley if required. During motor installation, the FF holes provided on the flange of the IEC metric motor can be used to install the motor.
MPL-B430P-HJ22AA 交流伺服电机 低惯量无刷同步电机
