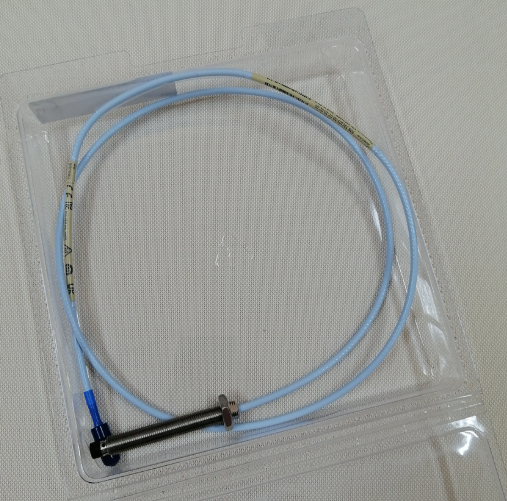

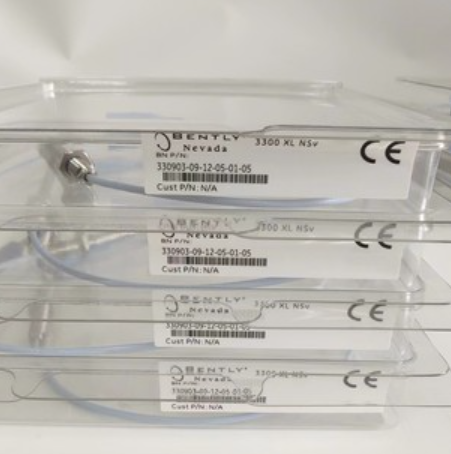

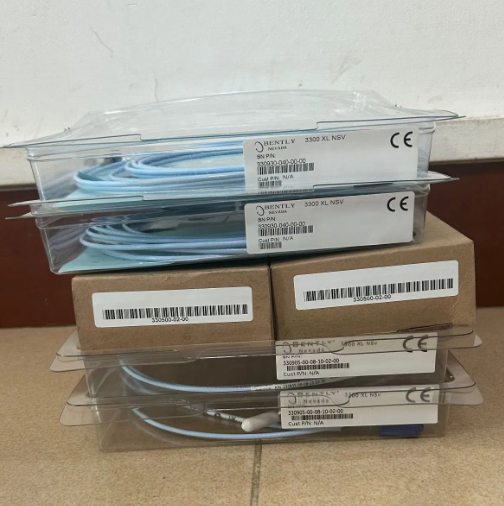

330903-01-25-05-01-CN  5/8 mm 接近传感器

【产品详情】

特征：

适用于压缩系统、速度测量和油膜轴承机

扩展温度范围应用

单元和布线的完全可互换性

向后兼容其他非 3300 XL 系列传感器系统组件

GE / Bently Nevada 3300 XL 8mm 接近传感器系统由一个 3300 XL 8mm 探头、一个 3300 XL 延长电缆和一个 3300 XL 接近传感器组成。该系统提供的输出电压与探头尖端和观察到的导电表面之间的距离成正比，可以测量静态（位置）和动态（振动）值。该系统的主要应用是油膜轴承机床的振动和位置测量，以及键相参考和速度测量。标准的 3300 XL 8 mm 5 米系统在机械配置、线性范围、精度和温度稳定性方面也完全符合美国石油协会 （API） 670 标准（第 4 版）。所有 3300 XL 8 mm 接近传感器系统都提供这种水平的性能，并支持探头、延长电缆和接近传感器的完全互换性，无需匹配或对单个组件进行台架校准。

330903-01-25-05-01-CN  5/8 mm 接近传感器

【英文介绍】

Features:

Suitable for compression systems, speed measurement and oil film bearing machines

Extended temperature range application

Full interchangeability of cells and wiring

Backward compatible with other non-3300 XL series sensor system components

The GE/Bently Nevada 3300 XL 8mm proximity sensor system consists of a 3300 XL 8mm probe, a 3300 XL extension cable, and a 3300 XL proximity sensor. The system provides an output voltage that is proportional to the distance between the probe tip and the observed conductive surface, allowing both static (position) and dynamic (vibration) values to be measured. The main applications of this system are vibration and position measurement of oil film bearing machine tools, as well as key phase reference and velocity measurement. The standard 3300 XL 8 mm 5 meter system is also fully compliant with the American Petroleum Institute (API) 670 standard (4th edition) in terms of mechanical configuration, linear range, accuracy and temperature stability. All 3300 XL 8 mm proximity sensor systems deliver this level of performance and support full interchangeability of probes, extension cables and proximity sensors without the need to match or bench calibrate individual components.

330903-01-25-05-01-CN  5/8 mm 接近传感器
