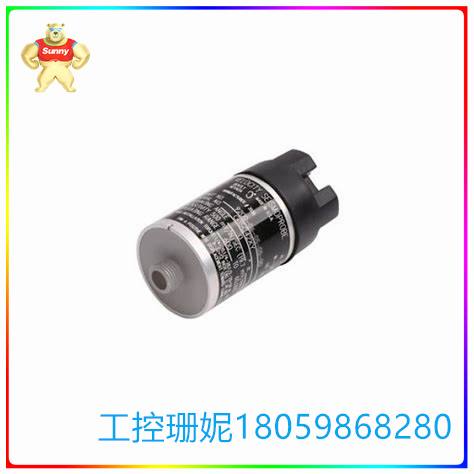

9200-09-01-01-00 速度传感器9200

【产品详情】

 本特利传感器9200 是两线制传感器，适用于连续监测或与测试或故障诊断仪表一起应用于周期性测量中。9200 具有抗腐蚀性，不需要额外保护。

   本特利速度传感器系统测量轴承箱、机壳或结构的相对于自由空间）振动。该两线系统由传感器、电缆和可选的速度-位移转换器组成。 本特利速度传感器9200系列是两线制结构，采用动线圈技术，提供直接正比于传感器振动速度的电压输出。与固体速度传感器不同，动线圈传感器对冲击或脉冲励磁的敏感性降低，是好的应用选择。此外，它们不要求外部电源，所以使便携式测量应用加方便。 在机壳速度测量中性能高好，结构加坚固。多种联接电缆可以将本特利传感器9200与其它仪表或速度、位移转换器联接起来。这些电缆以300 毫米(1 英尺)递增，有或没有不锈钢铠装。 有两种类型的速度、位移转换器 (VDC)可供选择: 9513: 与 9200 和74712 传感器一起使用。

产品特点：

灵敏度: 在100 Hz (6,000 cpm)时为20 mV/mm/s (500 mV/in/s) ±5%，在100 Hz (6,000 cpm) 时为25 mm/s  (1 in/s) 零到峰值±5%

频率响应: 从Z小工作频率(参见订货信息)到1 kHz (60,000 cpm); 典型值从+0 到 ±3dB

引线长度: 在bently 9200和3300 监测器之间Z长305 米(1,000 英尺)。长度增加时的频率衰减.

使用和存储温度:  9200: -29°C 到 +121°C  (-20°F 到 +250°F) 74712: -29°C 到 +204°C  (-20°F 到 +400°F)

速度、位移转换器:型号9513 要求:  -18 Vdc ;型号46687 要求:  -24 Vdc ,输出灵敏度 (输入为500 mV/in/s)

9513-02:  200 mV/mil (8 V/mm) ±5% ;46687-01:  200 mV/mil (8 V/mm) ±5%

频率范围:  Z小工作频率到10 kHz (600,000 cpm)

9200 两线制速度传感器可以与9513 VDC 一起使用。9513 VDC 需要单独订购 (参见速度-位移转换器)

9200-09-01-01-00 速度传感器9200

【英文介绍】

The Bentley Sensor 9200 is a two-wire sensor suitable for continuous monitoring or for use in periodic measurements with test or fault diagnosis instruments. The 9200 is corrosion resistant and does not require additional protection.

Bentley speed sensor systems measure the vibration of a bearing box, housing or structure with respect to free space. The two-wire system consists of sensors, cables, and an optional speed-to-displacement converter. The Bentley Speed Sensor Series 9200 is a two-wire construction with moving coil technology that provides a voltage output directly proportional to the vibration speed of the sensor. Unlike solid speed sensors, moving coil sensors are less sensitive to shock or pulse excitation, making them a good choice for applications. In addition, they do not require an external power supply, making portable measurement applications more convenient. In the case speed measurement of high performance, strong structure. A variety of connection cables connect the Bentley Sensor 9200 to other meters or speed and displacement converters. These cables come in increments of 300 mm (1 ft), with or without stainless steel armour. There are two types of speed and displacement converters (VDC) available: 9513: for use with the 9200 and 74712 sensors.

Product features:

Sensitivity: 20 mV/mm/s (500 mV/in/s) ±5% at 100 Hz (6,000 cpm), 25 mm/s (1 in/s) zero to peak ±5% at 100 Hz (6,000 cpm)

Frequency response: from Z small operating frequency (see ordering information) to 1 kHz (60,000 cpm); Typical values range from +0 to ±3dB

Lead length: 305 m (1,000 ft) between the bently 9200 and 3300 monitors. Frequency attenuation as length increases.

Use and storage temperature: 9200:-29 °C to +121°C (-20°F to +250°F) 74712: -29°C to +204°C (-20°F to +400°F)

Speed, displacement converter: Model 9513 Requirements: -18 Vdc; Model 46687 Requirements: -24 Vdc, output sensitivity (input 500 mV/in/s)

9513-02:  200 mV/mil (8 V/mm) ±5% ; 46687-01:  200 mV/mil (8 V/mm) ±5%

Frequency range: Z small operating frequency to 10 kHz (600,000 cpm)

The 9200 two-wire speed sensor can be used with 9513 VDC. 9513 VDC needs to be ordered separately (see Speed-Displacement Converter)

9200-09-01-01-00 速度传感器9200
