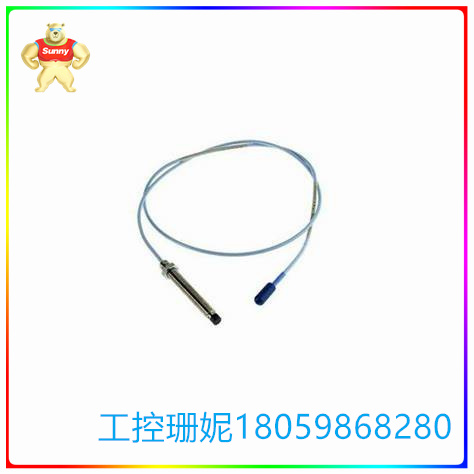

330101-23-39-10-12-05 接近传感器 位置测量轴承机
【产品详情】

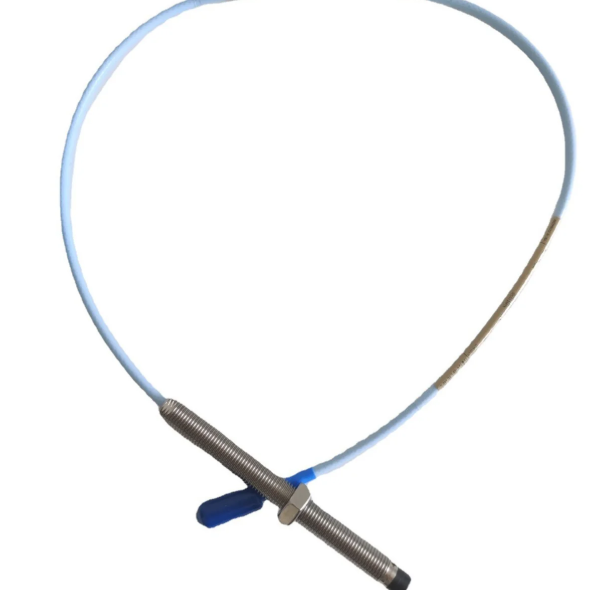

3300 XL 8毫米接近传感器系统包括:一个3300 XL 8毫米探头,
一根3300 XL延长线1,以及1个3300 XL Proximitor*传感器系统提供的输出电压与电流成正比测头与观察到的导电表面之间的距离测量静态(位置)和动态(振动)值。系统的主要应用于流体膜的振动和位置测量轴承机,以及键相量*参考和速度测量3。
3300 XL 8毫米系统在我们的涡流中提供了最先进的性能电流接近传感器系统。标准3300 XL 8毫米5米
该系统也完全符合美国石油协会(API)的670标准标准(第4版)机械配置,线性范围,精度和温度稳定。所有3300 XL 8毫米接近传感器系统提供
这种水平的性能和支持探针的完全互换性,延长电缆,和Proximitor传感器,无需匹配或台架校准单个组件。
每个3300 XL 8毫米传感器系统组件向后兼容和可与其他非xl 3300系列5毫米和8毫米传感器互换系统components5。这种兼容性包括3300 5毫米探头,用于8毫米探头太大而无法安装的应用场合space6 7。Proximitor传感器3300 XL Proximitor传感器包含了许多改进以前的设计。它的物理包装允许您在高密度DIN轨道安装中使用它。您也可以将传感器安装在传统的面板安装中配置,它共享一个相同的4孔安装“足迹”与旧的
Proximitor传感器设计。安装基础的任何一个选项提供
电气隔离,不需要单独的隔离板。3300年XL Proximitor传感器高度免疫射频干扰,允许您可以将其安装在玻璃纤维外壳中,而不会对附近的无线电产生不利影响频率信号。3300 XL Proximitor传感器提高了RFI/EMI抗扰度
满足欧洲CE标志认证,无需特殊屏蔽导管或金属外壳,从而降低安装成本和复杂性。3300 XL的SpringLoc端子带不需要特殊的安装工具
通过消除螺杆式,促进更快,更坚固的现场接线连接可松开的夹紧机构。
330101-23-39-10-12-05 接近传感器 位置测量轴承机
【英文介绍】
3300 XL 8mm proximity sensor system includes: a 3300 XL 8mm probe,
A 3300 XL extension cord 1, and a 3300 XL Proximitor* sensor system provide output voltage proportional to current The distance between the probe and the observed conductive surface measures static (position) and dynamic (vibration) values. The system is mainly used in fluid film vibration and position measurement of bearing machines, as well as bond phasor * reference and velocity measurement-3.
The 3300 XL 8mm system offers the most advanced performance current proximity sensor system in our eddy current range. Standard 3300 XL 8 mm 5 m
The system is also fully compliant with the American Petroleum Institute's (API) 670 Standard (4th edition) mechanical configuration, linear range, accuracy and temperature stability. All 3300 XL 8mm proximity sensor systems available
This level of performance and support full interchangeability of probes, extended cables, and Proximitor sensors without the need to match or bench calibrate individual components.
Each 3300 XL 8 mm sensor system component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm sensor systems components5. This compatibility includes 3300 5 mm probes for applications where 8 mm probes are too large to fit space6 7. Proximitor Sensor 3300 XL Proximitor sensor contains a number of improvements to the previous design. Its physical packaging allows you to use it in high-density DIN rail installations. You can also mount the sensor in a traditional panel mount configuration, which shares an identical 4-hole mount "footprint" with the old one
Proximitor sensor design. Install base with any of the options provided
Electrical isolation, no separate isolation plate required. The 3300 XL Proximitor sensor is highly immune to RF interference, allowing you to mount it in a fiberglass housing without adversely affecting nearby radio frequency signals. The 3300 XL Proximitor sensor improves RFI/EMI immunity
Meet the European CE mark certification without special shielding conduits or metal housings, thus reducing installation costs and complexity. The SpringLoc terminal tape of the 3300 XL does not require special installation tools
By eliminating the screw type, it promotes faster, more robust field wiring to connect the looselable clamping mechanism.
