330905-00-25-05-02-00
330905-00-25-05-02-00

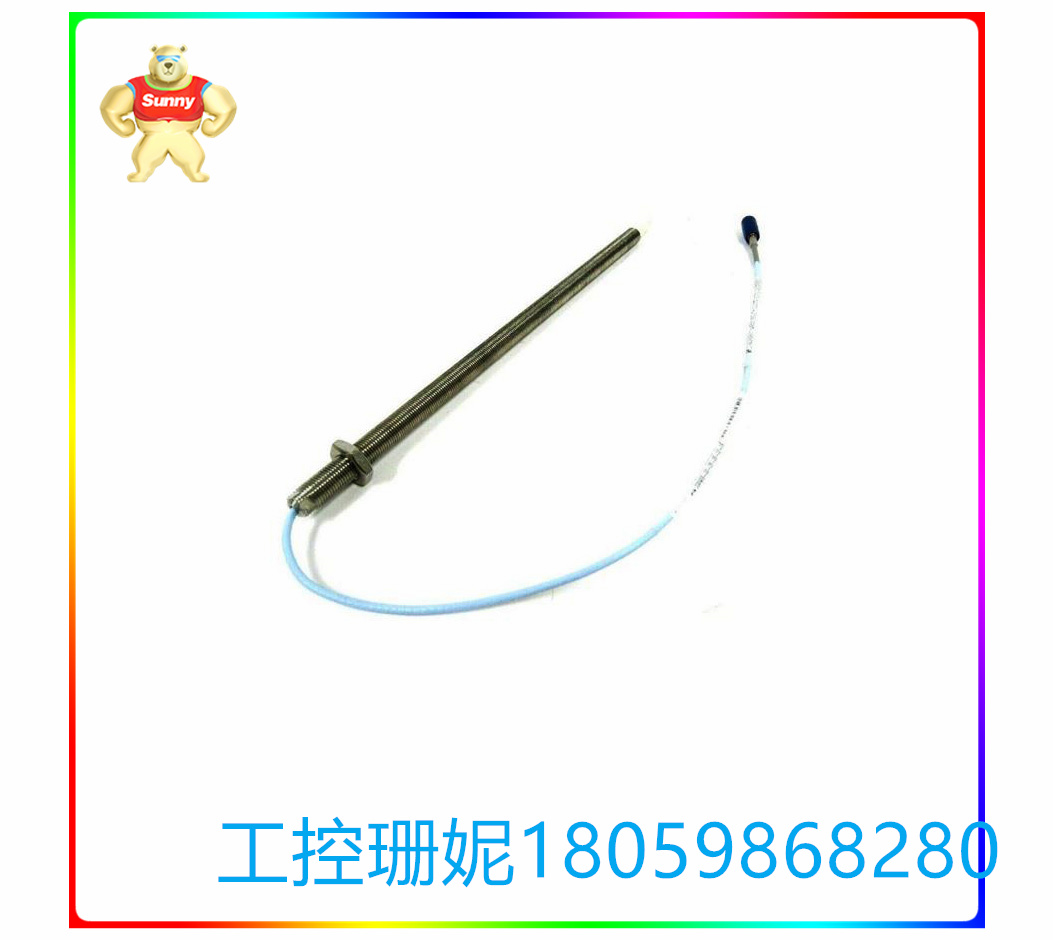

330905-00-25-05-02-00 NSv 接近探头 无铠装

330905-00-25-05-02-00NSv接近探头无铠装【产品详情】品牌:Bently-Nevada产品编号:330905-00-25-05-02-CN产

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

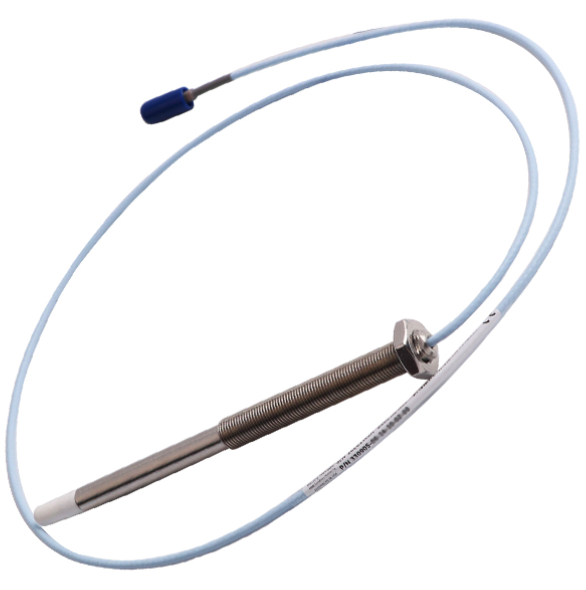

330905-00-25-05-02-00 NSv 接近探头  无铠装




【产品详情】





品牌 : Bently-Nevada

产品编号: 330905-00-25-05-02-CN

产品类型 : 3300 NSv 接近探头

美国制造

可以添加原产地证书(COO)

3300 NSv 探头,M10 x 1 螺纹,无铠装

无螺纹长度选项 : 00 = 0 mm

外壳长度选项:25 = 250mm

总长度选项:05 = 0.5 米(20 英寸)

连接器和电缆类型选项 : 02 = 微型同轴 ClickLoc 连接器,标准电缆

机构批准选项:CN = 特定国家/地区的批准(CN 批准选项快速参考指南和现场通知信在下载部分)

探头尖端材料:聚苯硫醚 (PPS)。

探头外壳材料:AISI 304不锈钢(SST)。

探头电缆规格: 75 ?同轴氟乙丙烯 (FEP) 绝缘探头电缆,探头总长度如下:0.5、1、5 或 7 米。

工作温度:-34°C 至 +177°C(-30°F 至 +351°F)

存储温度:-51°C 至 +177°C(-60°F 至 +351°F)

特征:

适用于严格的安装要求

替代 3300 RAM 传感器系统和 3000 系列或 7000 系列 190 传感器系统

平均比例因子:7.87 V/mm (200 mV/mil)

GE / Bently Nevada 3300 XL NSv 接近传感器系统旨在与离心式空气压缩机、制冷压缩机、工艺气体压缩机和其他具有严格安装要求的机器一起使用。3300 XL NSv 接近传感器系统包括:

• 3300 NSv 探头 • 3300 NSv 延长电缆


• 3300 XL NSv 接近传感器。


3300 XL NSv 传感器系统的主要用途是用于沉孔、侧视或后视限制使用标准本特利的区域 Nevada 3300 和 3300 XL 5 和 8 mm 传感器系统。它也是小型目标应用的理想选择,例如测量较小轴上的径向振动 小于 51 毫米(2 英寸)或小于 15 毫米(0.6 英寸)的平面目标的轴向位置。它主要用于油膜轴承机的以下应用 如果存在小轴或缩小的侧视图:

• 径向振动和径向位置测量 • 轴向(推力)位置测量 • 转速计和零速测量



• 相位参考(键相)信号。


3300 XL NSv 传感器系统设计使其能够取代 3300 RAM 传感器系统和 3000 系列或 7000 系列 190 传感器 系统。从 3300 RAM 系统升级到 3300 XL NSv 系统可以使用现有的探头、延长电缆和带有 3300 XL NSv 接近传感器的监控系统。从 3000 系列或 7000 系列传感器系统升级时,必须用 NSv 组件替换探头、延长电缆和接近传感器。


3300 XL NSv 传感器系统的平均比例因子为 7.87 V/mm (200 mV/mil),这是涡流传感器最常见的输出。其增强的侧视和小目标特性使其线性范围比本特利内华达 3300 XL 系列 5 毫米和 8 毫米传感器系统更短。 1.5 mm (60 mils) 的线性范围超过了 3000 系列 190 传感器系统的线性范围。




330905-00-25-05-02-00 NSv 接近探头  无铠装



英文介绍





Brand: Bently-Nevada

Product Number: 330905-00-25-05-02-CN

Product Type: 3300 NSv proximity probe

Made in the USA

Certificate of Origin (COO) can be added

3300 NSv probe, M10 x 1 thread, unarmoured

No thread length option: 00 = 0 mm

Shell length option: 25 = 250mm

Total Length options: 05 = 0.5 m (20 in)

Connector and cable type options: 02 = Miniature coaxial ClickLoc connector, standard cable

Agency Approval options: CN = country-specific approval (Quick reference guide and on-site notification letter for CN Approval options in Download section)

Tip material: polyphenylene sulfide (PPS).

Probe housing material: AISI 304 stainless steel (SST).

Probe cable specification: 75? Coaxial fluoroethylene propylene (FEP) insulated probe cable, the total length of the probe as follows: 0.5, 1, 5 or 7 meters.

Operating temperature: -34°C to +177°C (-30°F to +351°F)

Storage temperature: -51°C to +177°C (-60°F to +351°F)

Features:

Suitable for strict installation requirements

Alternative to 3300 RAM sensor systems and 3000 Series or 7000 Series 190 sensor systems

Average scale factor: 7.87V /mm (200 mV/mil)

The GE/Bently Nevada 3300 XL NSv proximity sensor system is designed for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with stringent installation requirements. The 3300 XL NSv proximity Sensor system includes:

• 3300 NSv probe • 3300 NSv extension cable


• 3300 XL NSv proximity sensor.


The primary use of the 3300 XL NSv sensor system is for countersunk, side-view or rear-view limiting the use of standard Bentley area Nevada 3300 and 3300 XL 5 and 8 mm sensor systems. It is also ideal for small target applications, such as measuring the axial position of flat targets with radial vibrations less than 51 mm (2 in) or less than 15 mm (0.6 in) on smaller axes. It is mainly used in the following applications of oil film bearing machines if there is a small shaft or a reduced side view:

Radial vibration and radial position measurement Axial (thrust) position measurement Tachometer and zero speed measurement



• Phase reference (key phase) signal.


The 3300 XL NSv sensor system design enables it to replace the 3300 RAM sensor system and the 3000 Series or 7000 Series 190 sensor system. Upgrading from a 3300 RAM system to a 3300 XL NSv system can use existing probes, extension cables, and a monitoring system with a 3300 XL NSv proximity sensor. When upgrading from a 3000 series or 7000 series sensor system, the probe, extension cable, and proximity sensor must be replaced with an NSv assembly.


The 3300 XL NSv sensor system has an average scale factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current sensors. Its enhanced side-view and small-target features give it a shorter linear range than the Bentley Nevada 3300 XL series 5 mm and 8 mm sensor systems. The 1.5 mm (60 mils) linear range exceeds the linear range of the 3000 Series 190 sensor system.




330905-00-25-05-02-00 NSv 接近探头  无铠装
