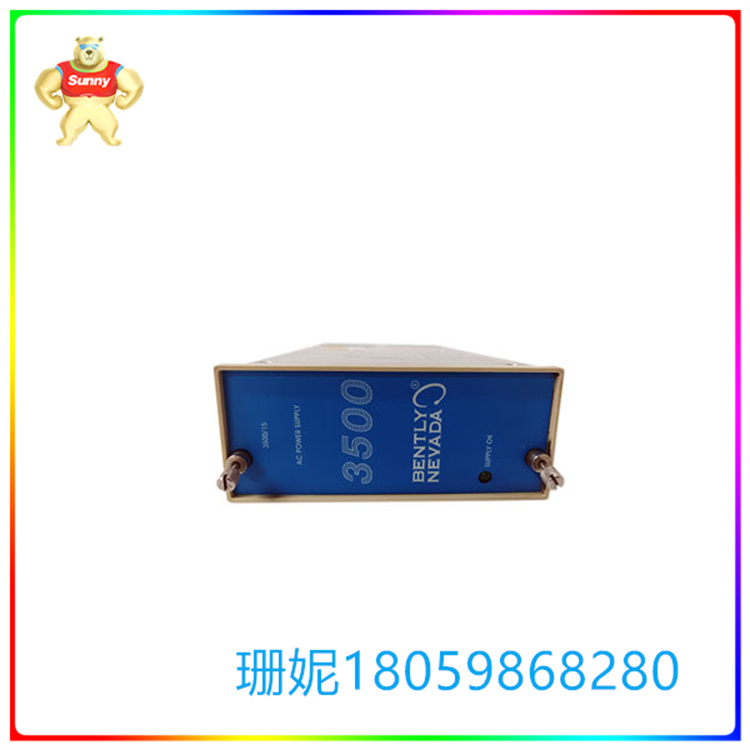

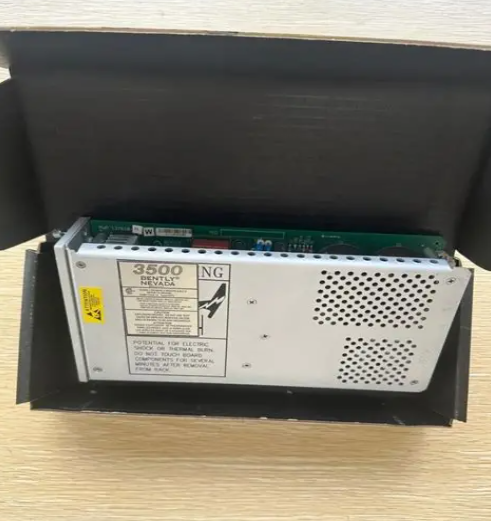

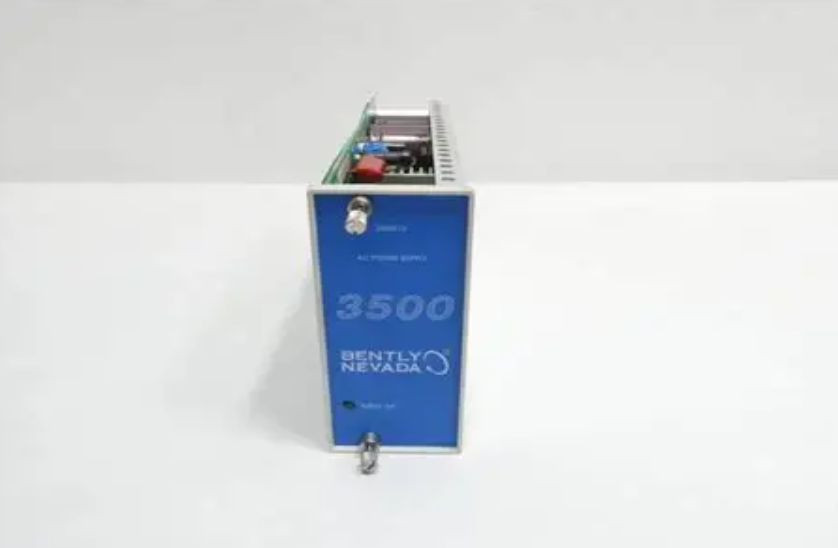

BENTLY 3500/15 127610-01 通用交流电源模块

【产品详情】

3500/15交流/直流电源模块为半高模块，必须安装在机柜左侧的指定槽位上。3500机柜支持单路或双路交流电源和直流电源的任意组合。任何一种电源都可以为整个机架供电。

当机架内安装两个电源时，下槽位的一个作为主电源，上槽位的另一个作备用电源。如果安装了，第二个电源是主电源的备份。

只要安装了另一个电源，插拔任意一个电源模块都不会影响机架的正常运行。

3500/15交流和直流电源接受广泛的输入电压，并将其转换为其他3500模块可接受的电压。

以下电源可与3500系列机械保护系统一起使用:

通用交流电源

高压直流电源

低压直流电源

3500/15电源可以订购交流或直流输入电源，与世界各地的电压源兼容。线路噪声滤波器是标准配置。3500机架可以从单电源运行，或双电源可用于提供冗余的情况下，不能容忍电源中断。

双电源位于最左侧机架槽位的上、下两个位置。冗余电源可以使用单独的电压源。例如，主(下)电源可以使用120vac电源，而备用(上)电源可以使用不间断的24vdc电源。

每个电源可以单独为整个机架及其模块供电。当使用冗余电源时，下部电源作为机架的主电源，而上部电源作为备用电源，在主电源故障时，可以立即自动作为机架的主电源运行，而不会中断机架的功能。

3500/15电源模块具有自监控功能，可以判断其所有输出电压是否在规格范围内。该模块通过电源前面板上的绿色供电OK LED发出此信号。

3500/15电源模块

3500/15-AA-BB-CC

A:电源类型(Top Slot)

03 Legacy高压直流(88至140 Vdc)

04传统低压直流(20~30 Vdc)

05通用交流电压(85至264 Vac有效值)

06高压直流电源

07低压直流电源

B:电源类型(下槽位)

00无电源(当不需要电源时使用)

03 Legacy高压直流(88至140 Vdc)

04传统低压直流(20~30 Vdc)

05通用交流电压(85至264 Vac有效值)

06高压直流电源

07低压直流电源

C:机构审批

00没有

01 CSA/NRTL/C(第1班，第2组)

02 ATEX/IECEx/CSA(Class 1,Zone 2)

106M1079-01通用交流电源模块

106M1081-01通用交流电源输入模块

129486-01传统高压直流电源模块

129478-01传统高压直流电源输入模块

133292-01传统低压直流电源模块

133300-01传统低压直流电源输入模块

114M5329-01高压直流电源

115M7750-01高压直流PIM

114M5330-01低压直流电源

114M5335-01低压直流PIM

01720025替换保险丝(适用于交流电源输入模块和传统高压直流电源输入模块)

01720045更换保险丝(低压直流电源输入模块和传统低压直流电源输入模块)

120M3877更换保险丝快速熔断额定电流为5A/500 VacSize 6.3 x 32 mm(通用交流电源输入模块)

131150-01电源空白前面板(数量1，包括螺丝)

128085-01电源后输入连接器盖(1个)订购部件04310251用于螺丝。

04310251电源输入盖板螺丝(2个)

129767 3500/15电源用户指南

118M0915-01通用交流电源输入模块的替换连接器

BENTLY 3500/15 127610-01 通用交流电源模块

【英文介绍】

The 3500/15 AC/DC power module is half-height and must be installed in the specified slot on the left of the cabinet. The 3500 cabinet supports any combination of single or dual AC power supplies and DC power supplies. Any kind of power supply can power the entire rack.

When two power supplies are installed in a rack, one in the lower slot serves as the active power supply, and the other in the upper slot serves as the standby power supply. If installed, the second power supply is a backup of the main power supply.

As long as the other power supply is installed, the insertion or removal of either power module does not affect the normal running of the rack.

The 3500/15 AC and DC power supplies accept a wide range of input voltages and convert them to voltages acceptable to other 3500 modules.

The following power supplies can be used with the 3500 Series mechanical protection system:

Universal AC power supply

High voltage DC power supply

Low voltage DC power supply

The 3500/15 power supply can be ordered with AC or DC input power supplies and is compatible with voltage sources around the world. Line noise filters are standard. The 3500 rack can be operated from a single power supply, or dual power supplies can be used to provide redundancy in cases where power outages are not tolerated.

The two power supplies are located in the upper and lower positions of the leftmost rack slots. Redundant power supplies can use separate voltage sources. For example, the main (lower) power supply can use a 120vac power supply, while the backup (upper) power supply can use an uninterrupted 24vdc power supply.

Each power supply can individually power the entire rack and its modules. When a redundant power supply is used, the lower power supply acts as the main power supply of the rack, while the upper power supply acts as the backup power supply, and in the event of a failure of the main power supply, it can immediately and automatically operate as the main power supply of the rack without interrupting the function of the rack.

The 3500/15 power module has a self-monitoring function to determine whether all its output voltages are within the specification range. The module sends this signal via the green powered OK LED on the front panel of the power supply.

3500/15 Power module

3500/15-AA-BB-CC

A: Power Supply type (Top Slot)

03 Legacy High Voltage DC (88 to 140 Vdc)

04 Traditional Low voltage DC (20~30 Vdc)

05 Universal AC voltage (85 to 264 Vac RMS)

06 High voltage DC power supply

07 Low voltage DC power supply

B: Power supply type (lower slot)

00 No power supply (used when power is not needed)

03 Legacy High Voltage DC (88 to 140 Vdc)

04 Traditional Low voltage DC (20~30 Vdc)

05 Universal AC voltage (85 to 264 Vac RMS)

06 High voltage DC power supply

07 Low voltage DC power supply

C: Agency approval

00 No

01 CSA/NRTL/C(Class 1, Group 2)

02 ATEX/IECEx/CSA(Class 1,Zone 2)

106M1079-01 Universal AC power module

106M1081-01 Universal AC power input module

129486-01 Traditional HVDC power module

129478-01 Traditional HVDC power input module

133292-01 Traditional low-voltage DC power module

133300-01 Traditional low-voltage DC power input module

114M5329-01 High voltage DC power supply

115M7750-01 High Voltage DC PIM

114M5330-01 Low voltage DC power supply

114M5335-01 Low voltage DC PIM

01720025 Replacement fuse (for AC power input modules and traditional HVDC power input modules)

01720045 Replacing the fuse (Low-voltage DC power input module and traditional low-voltage DC power input module)

120M3877 Replacement Fuse Quick blow rated current 5A/500 VacSize 6.3 x 32 mm(universal AC power input module)

131150-01 Power supply blank front panel (quantity 1, including screws)

128085-01 Power Supply rear input Connector Cover (1) Ordered Part 04310251 for screws.

04310251 Power input cover plate screws (2)

129767 3500/15 Power Supply User Guide

118M0915-01 Replacement connector for the universal AC power input module
