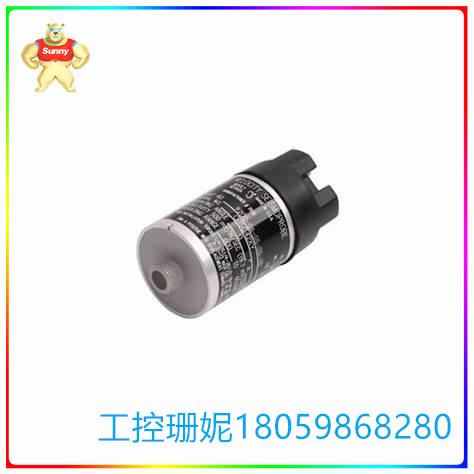

9200-06-01-10-00 汽轮机振动速度传感器
【产品详情】
本特利bently9200-06-01-10-00汽轮机振动速度传感器以速度为单位的振动测量，可以水平或垂直方向安装，采用动线圈技术，提供直接正比于传感器振动速度的电压输出。频率响应为从10Hz到1kHz(270cpm-60000cpm)；灵敏度20mV/mm/s，采用动线圈技术，提供直接正比于传感器振动速度的电压输出。本特利(Bently)速度传感器测量机组轴承箱、机壳或结构的振动，检测汽轮机、水轮机、鼓风机、空压机、压缩机、空分机、齿轮箱、大型冷却泵等大型旋转机械轴的振动，应用于电力、石油、化工、冶金等行业和一些科研单位。
本特利bently9200-06-01-10-00汽轮机振动速度传感器为两线制系统，由传感器、连接电缆和可选的振动监测器组成。连接电缆为2芯双绞屏蔽电缆线如铠装84661-17，标准9571-33，本特利振动速度和加速度传感器主要连接至振动监测器2300/20-00、振动监测器1900/65A、3500/42M监视器。在本特利9200和监测器之间引线长度最长305米。由于它们不要求外部电源，46000-01临时安装速度传感器的磁座，所以使便携式测量应用更加方便。

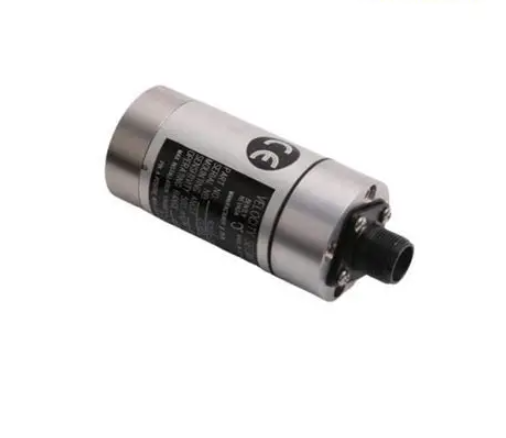

9200-06-01-10-00 汽轮机振动速度传感器
【英文介绍】
Bentley bently9200-06-01-10-00 Turbine vibration speed sensor Vibration measurement in units of speed, can be mounted horizontally or vertically, using moving coil technology, provides a voltage output directly proportional to the vibration speed of the sensor. The frequency response is from 10Hz to 1kHz(270cpm-60000cpm); Sensitivity 20mV/mm/s, using moving coil technology, provides a voltage output directly proportional to the sensor vibration speed. Bently speed sensor measures the vibration of the bearing box, housing or structure of the unit, and detects the vibration of large rotating machinery shafts such as steam turbine, hydraulic turbine, blower, air compressor, compressor, air engine, gearbox, large cooling pump, etc., which is used in electric power, petroleum, chemical industry, metallurgy and some scientific research institutions.
The Bentley bently9200-06-01-10-00 Turbine vibration speed sensor is a two-wire system consisting of a sensor, a connecting cable and an optional vibration monitor. The connection cable is a 2-core twisted pair shielded cable such as armoured 84661-17, standard 9571-33, Bentley vibration speed and acceleration sensor is mainly connected to the vibration monitor 230/20-00, vibration monitor 1900/65A, 3500/42M monitor. The lead length between the Bentley 9200 and the monitor is up to 305 meters. Since they do not require an external power supply, the 46000-01 temporarily mounts the magnetic holder of the speed sensor, making portable measurement applications more convenient.
9200-06-01-10-00 汽轮机振动速度传感器
【其他型号推荐】
Bentley bently9200-06-01-10-00 Turbine vibration speed sensor Vibration measurement in units of speed, can be mounted horizontally or vertically, using moving coil technology, provides a voltage output directly proportional to the vibration speed of the sensor. The frequency response is from 10Hz to 1kHz(270cpm-60000cpm); Sensitivity 20mV/mm/s, using moving coil technology, provides a voltage output directly proportional to the sensor vibration speed. Bently speed sensor measures the vibration of the bearing box, housing or structure of the unit, and detects the vibration of large rotating machinery shafts such as steam turbine, hydraulic turbine, blower, air compressor, compressor, air engine, gearbox, large cooling pump, etc., which is used in electric power, petroleum, chemical industry, metallurgy and some scientific research institutions.
The Bentley bently9200-06-01-10-00 Turbine vibration speed sensor is a two-wire system consisting of a sensor, a connecting cable and an optional vibration monitor. The connection cable is a 2-core twisted pair shielded cable such as armoured 84661-17, standard 9571-33, Bentley vibration speed and acceleration sensor is mainly connected to the vibration monitor 230/20-00, vibration monitor 1900/65A, 3500/42M monitor. The lead length between the Bentley 9200 and the monitor is up to 305 meters. Since they do not require an external power supply, the 46000-01 temporarily mounts the magnetic holder of the speed sensor, making portable measurement applications more convenient.
