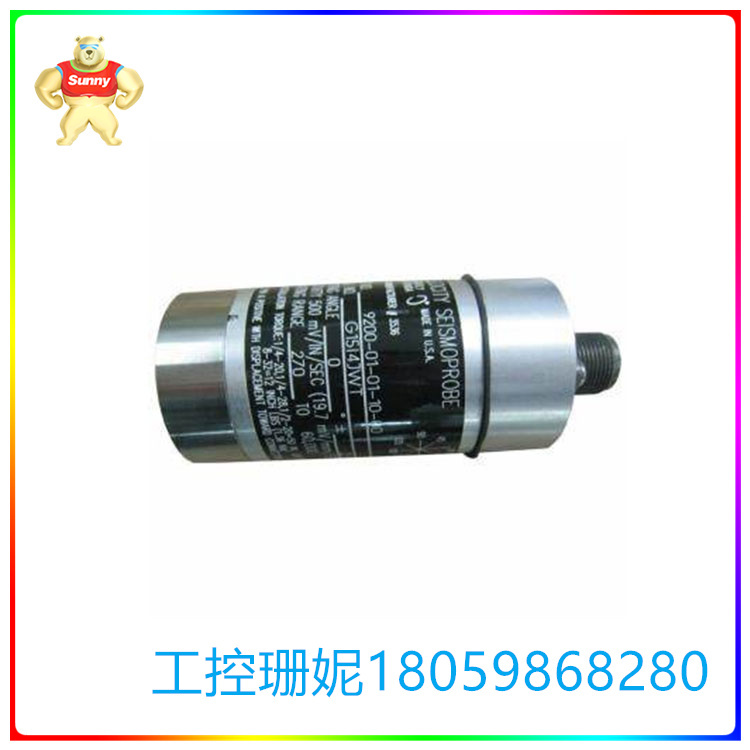

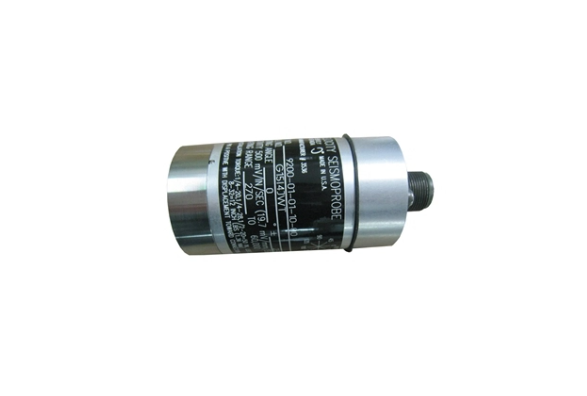

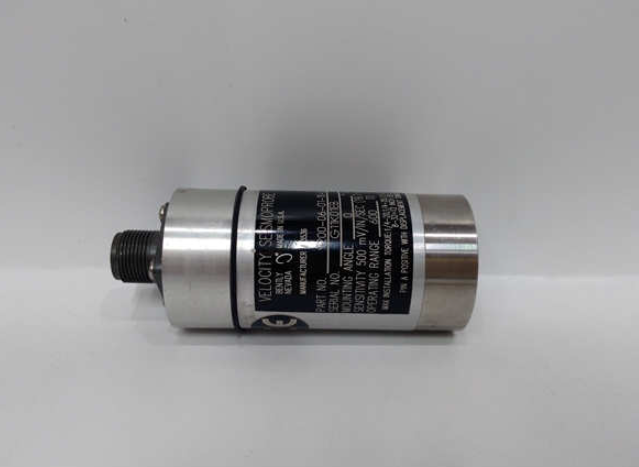

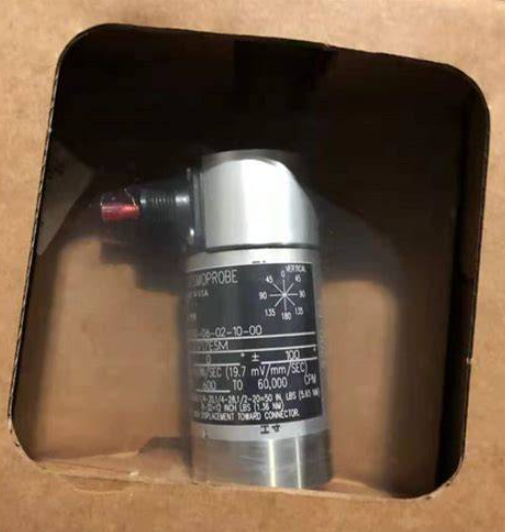

9200-06-05-10-00 两线制速度地震探头传感器

【产品详情】

品牌 ： Bently Nevada

产品编号: 9200-06-05-10-00

产品类型 ： 两线制速度地震探头传感器

美国制造

可以添加原产地证书

型号 ： 9200 - Two-Wire Seismoprobe Velocity Transducer

传感器安装角度/最小操作 ： 06 - 0 ±100， 10 Hz （600 cpm）

连接器选项 ： 05 - 接线端子顶部安装

安装底座选项 ： 10 - 圆形;M10X1 螺柱

机构批准选项 ： 00 - 无需批准

  本特利传感器9200 是两线制传感器，适用于连续监测或与测试或故障诊断仪表一起应用于周期性测量中。9200 具有抗腐蚀性，不需要额外保护。

   本特利速度传感器系统测量轴承箱、机壳或结构的相对于自由空间）振动。该两线系统由传感器、电缆和可选的速度-位移转换器组成。 本特利速度传感器9200系列是两线制结构，采用动线圈技术，提供直接正比于传感器振动速度的电压输出。与固体速度传感器不同，动线圈传感器对冲击或脉冲励磁的敏感性降低，是好的应用选择。此外，它们不要求外部电源，所以使便携式测量应用加方便。 在机壳速度测量中性能高好，结构加坚固。多种联接电缆可以将本特利传感器9200与其它仪表或速度、位移转换器联接起来。这些电缆以300 毫米(1 英尺)递增，有或没有不锈钢铠装。 有两种类型的速度、位移转换器 (VDC)可供选择: 9513: 与 9200 和74712 传感器一起使用。

9200-06-05-10-00 两线制速度地震探头传感器

【英文介绍】

Brand: Bently Nevada

Product Number: 9200-06-05-10-00

Product Type: Two-wire speed seismic probe sensor

Made in the USA

Certificates of origin can be added

Model: 9200-Two-Wire Seismoprobe Velocity Transducer

Sensor mounting Angle/Minimum operation: 06-0 ±100, 10 Hz (600 cpm)

Connector Options: 05 - Terminal top mount

Mounting base options: 10-round; M10X1 stud

Agency Approval option: 00 - No approval required

The Bentley Sensor 9200 is a two-wire sensor suitable for continuous monitoring or for use in periodic measurements with test or fault diagnosis instruments. The 9200 is corrosion resistant and does not require additional protection.

Bentley speed sensor systems measure the vibration of a bearing box, housing or structure with respect to free space. The two-wire system consists of sensors, cables, and an optional speed-to-displacement converter. The Bentley Speed Sensor Series 9200 is a two-wire construction with moving coil technology that provides a voltage output directly proportional to the vibration speed of the sensor. Unlike solid speed sensors, moving coil sensors are less sensitive to shock or pulse excitation, making them a good choice for applications. In addition, they do not require an external power supply, making portable measurement applications more convenient. In the case speed measurement of high performance, strong structure. A variety of connection cables connect the Bentley Sensor 9200 to other meters or speed and displacement converters. These cables come in increments of 300 mm (1 ft), with or without stainless steel armour. There are two types of speed and displacement converters (VDC) available: 9513: for use with the 9200 and 74712 sensors.

9200-06-05-10-00 两线制速度地震探头传感器
