3500/25-SIL2-01-01-CN 增强型键相器*模块

【产品详情】

描述

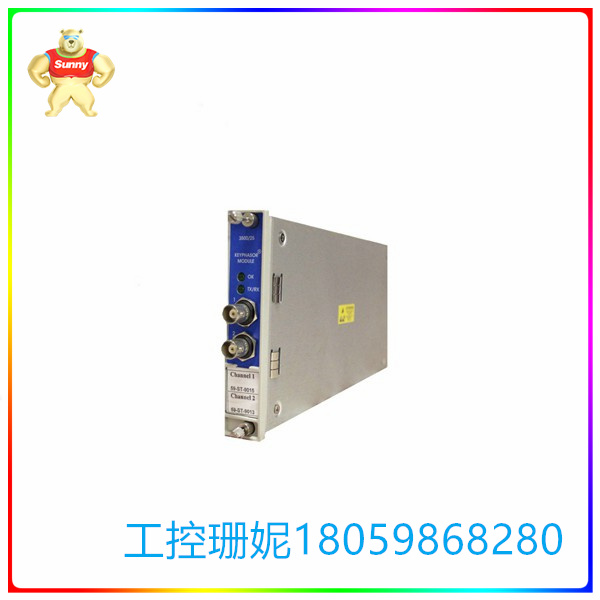

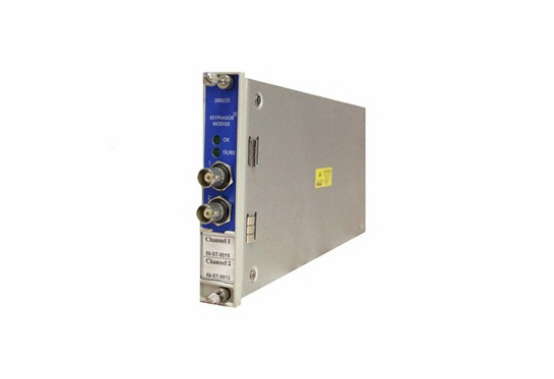

3500/25增强型关键模组是半高，双通道模块用于提供关键相量信号

3500机架内的监控模块。模块接收输入信号从接近探头或磁性拾音器和

将信号转换为数字键相量信号，表示当轴上的键相量标记与轴重合时

Keyphasor换能器。3500机械防护系统可以接受多达四个正常的键相量信号

配置和多达八个键相量信号在一对配置。

键相量信号是来自旋转轴或齿轮的每转一次或多个事件每转脉冲用于提供精确的定时测量。这允许3500个监控模块和外部测量轴转动的诊断设备速度和矢量参数，如1X振动振幅和相位。增强的键相量模块是一个改进的3500

系统模块。它提供扩展的键相量信号处理能力优于以前的设计而来保持完全的向下兼容性形式，适合和功能与现有的关键模块使用

在遗留系统中。关键相量模块PWA 125792-01为完全被更新后的149369-01模块取代。

当一个系统的关键相量输入需要三模冗余(TMR)应用程序，3500系统应该

使用两个Keyphasor模块。在此配置中，模块并行工作以提供primary和

二级键相量信号到机架中的其他模块。

3500/25-SIL2-01-01-CN 增强型键相器*模块

【英文介绍】

Description

The 3500/25 enhanced key module is a half-tall, dual-channel module used to provide the critical phasor signal

3500 Monitoring module in the rack. The module receives input signals from close probes or magnetic pickups and

Converts the signal to a digital bond phasor signal, indicating when the bond phasor mark on the axis is realigned with the axis

Keyphasor transducer. The 3500 mechanical protection system can accept up to four normal bond phasor signals

Configuration and up to eight bond phasor signals in a pair configuration.

The key phasor signal is a pulse of one or more events per revolution from a rotating shaft or gear  used to provide accurate timing measurements. This allows 3,500 monitoring modules and external diagnostic equipment to measure shaft rotation speed and vector parameters such as 1X vibration amplitude and phase. The enhanced bond phasor module is an improvement over 3500

System module. It offers extended bond phasor signal processing capabilities superior to previous designs while maintaining full backward compatibility in form, fit and function with existing key modules

In legacy systems. The key phasor module PWA 125792-01 was completely replaced by the updated module 149369-01.

When a system's critical phasor input requires three-mode redundancy (TMR) applications, 3500 systems should

Two Keyphasor modules are used. In this configuration, modules work in parallel to provide the primary and

The secondary bond phasor signals to other modules in the rack.
