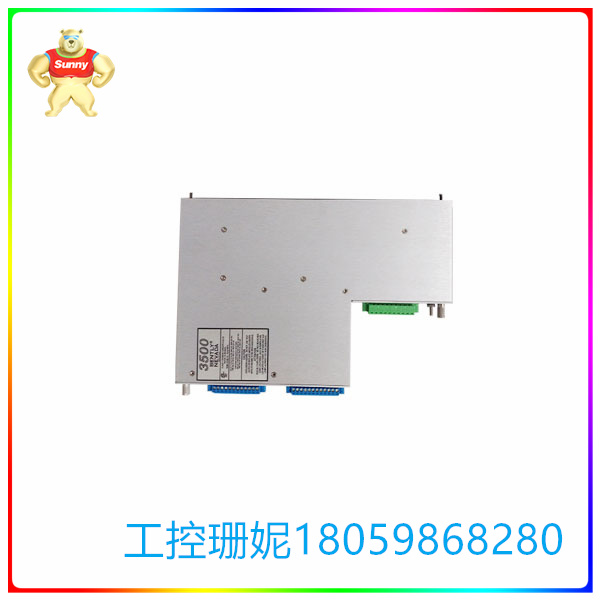

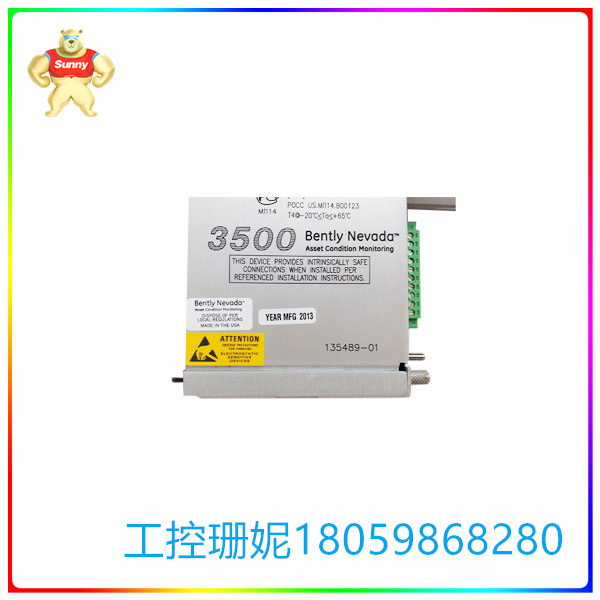

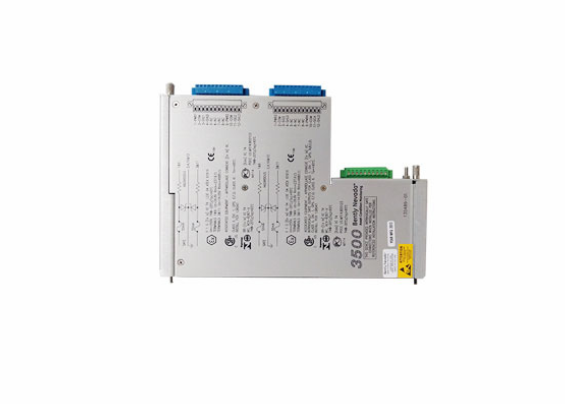

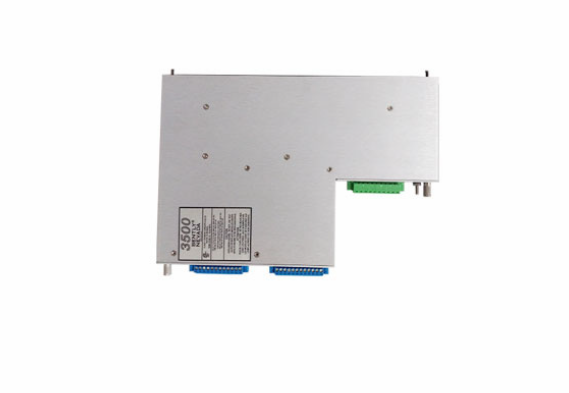

135489-01 TDI 位于电源旁边的插槽中
【产品详情】
在 3500 机架中,TDI 位于电源旁边的插槽中。为了持续收集稳态和瞬态动态(波形)数据并通过以太网链路将此数据传输到主机软件,它与 M 系列监视器(3500/40M、3500/42M 等)交互。
TDI 具有传统的静态数据收集功能。然而,TDI 也可以使用可选的通道启用磁盘记录动态、高分辨率的瞬态数据。
功能说明
3500 机架包含 TDI 的通信处理功能。虽然 TDI 执行一些由整个机架共享的任务,但它不是监控系统的关键组件,并且与整个系统监控自主机械保护的效果无关。
每个 3500 机架需要一个 TDI 或 RIM,它始终占用插槽 1。(电源旁边)。
3500 监测系统和兼容软件之间的链接称为 3500/22M 瞬态数据接口 (TDI)(系统 1 状态监测和诊断软件和 3500 系统配置软件)。TDI 将 3500/20 机架接口模块 (RIMfunctionality ) 与通信处理器(如 TDXnet)相结合,以收集数据。
地点
在 3500 机架中,TDI 位于电源旁边的插槽中。为了持续收集稳态和瞬态动态(波形)数据并通过以太网链路将此数据传输到主机软件,它与 M 系列监视器(3500/40M、3500/42M 等)交互。TDI 具有传统的静态数据收集功能。然而,TDI 也可以使用可选的通道启用磁盘记录动态、高分辨率的瞬态数据。
3500 机架包含 TDI 的通信处理功能。虽然 TDI 执行一些由整个机架共享的任务,但它不是监控系统的关键组件,并且与整个系统监控自主机械保护的效果无关。
每个 3500 机架需要一个 TDI 或 RIM,它始终占用插槽 1。(电源旁边)。
配置键锁
它用于在“RUN”和“PROGRAM”模式之间切换 3500 机架。RUN 模式可防止配置修改,同时允许机架正常运行。机架可以在本地或远程配置,同时仍可在 PROGRAM 模式下正常运行。通过从机架上的任一位置拔下钥匙,开关可以保持在运行或编程位置。您可以通过将开关锁定在运行位置来防止不必要的机架重新配置。任何时候需要远程重新配置机架时,都可以将开关锁定在 PROGRAM 位置。
I/O模块信号公共端
两个版本的 TDI I/O 模块中现在都有一个 2 针连接器,用于将信号公共端连接到机架的单点仪器接地。执行此操作后,要将信号公共端与底盘(安全)接地隔离,请沿“HP”箭头方向滑动电源输入模块 (PIM) 侧的选择器开关。
135489-01 TDI 位于电源旁边的插槽中
【英文介绍】
In the 3500 rack, the TDI is located in the slot next to the power supply. It interacts with M-series monitors (3500/40M, 3500/42M, etc.) in order to continuously collect steady-state and transient dynamic (waveform) data and transmit this data to the host software over an Ethernet link.
TDI has traditional static data collection capabilities. However, TDI can also enable the disk to record dynamic, high-resolution transient data using an optional channel.
Function description
The 3500 rack contains the communication processing capabilities of TDI. While TDI performs some tasks shared by the entire rack, it is not a critical component of the monitoring system and is not relevant to how well the entire system monitors autonomous mechanical protection.
Each 3500 rack requires a TDI or RIM, which always occupies slot 1. (Next to the power supply).
The link between the 3500 monitoring system and compatible software is called the 3500/22M Transient Data Interface (TDI) (System 1 condition monitoring and diagnostic software and 3500 system configuration software). TDI combines 3500/20 rack interface modules (RIMfunctionality) with communication processors such as TDXnet to collect data.
Locations
In the 3500 rack, the TDI is located in the slot next to the power supply. It interacts with M-series monitors (3500/40M, 3500/42M, etc.) in order to continuously collect steady-state and transient dynamic (waveform) data and transmit this data to the host software over an Ethernet link. TDI has traditional static data collection capabilities. However, TDI can also enable the disk to record dynamic, high-resolution transient data using an optional channel.
The 3500 rack contains the communication processing capabilities of TDI. While TDI performs some tasks shared by the entire rack, it is not a critical component of the monitoring system and is not relevant to how well the entire system monitors autonomous mechanical protection.
Each 3500 rack requires a TDI or RIM, which always occupies slot 1. (Next to the power supply).
Configuration key lock
It is used to switch 3500 racks between "RUN" and "PROGRAM" modes. RUN mode prevents configuration modifications while allowing the rack to run properly. The rack can be configured locally or remotely while still operating in PROGRAM mode. The switch can be kept in the running or programmed position by unplugging the key from any location on the rack. You can prevent unnecessary rack reconfiguration by locking the switch in the run position. Any time you need to remotely reconfigure the rack, you can lock the switch in the PROGRAM position.
I/O module signal public end
There is now a 2-pin connector in both versions of the TDI I/O module for connecting the signal common end to the single point instrument ground of the rack. After doing this, to isolate the common end of the signal from the chassis (safety) ground, slide the selector switch on the side of the power input module (PIM) in the direction of the HP arrow.
135489-01 TDI 位于电源旁边的插槽中
