167699-02 提供4个传感器输入和4个  温度输入

【产品详情】

描述

1900/65A通用设备监视器是

旨在持续监测和保护设备

用于各种应用和行业。的

Monitor的低成本使其成为一般用途机器和过程的理想解决方案，可以从中受益

持续监控和保护。

输入

1900/65A提供4个传感器输入和4个

温度输入。软件可以配置每个传感器

输入支持2线和3线加速度计，速度

传感器或接近传感器。每个温度输入支持

E型，J型，K型和T型热电偶，以及2线或3线rtd。

输出

1900/65A提供6个继电器输出，4个4-20 mA

记录仪输出，以及专用缓冲输出。用户

可以用1900组态软件配置继电器吗

根据OK, Alert和

任何航道或航道组合的危险状况;

并提供来自任何渠道的任何变量的数据

记录器输出。专用缓冲区输出可以提供

每个换能器输入信号。

167699-02 提供4个传感器输入和4个  温度输入

【英文介绍】

Description

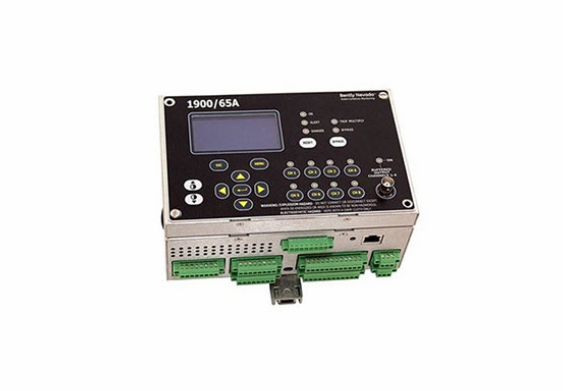

The 1900/65A General Purpose Equipment Monitor is

designed to continuously monitor and protect equipment that

is used in a variety of applications and industries. The

monitor’s low cost makes it an ideal solution for generalpurpose machines and processes that can benefit from

continuous monitoring and protection.

Inputs

The 1900/65A provides four transducer inputs and four

temperature inputs. Software can configure each transducer

input to support 2- and 3-wire accelerometers, velocity

sensors or proximity sensors. Each temperature input supports

Type E, J, K, and T thermocouples, and 2- or 3-wire RTDs.

Outputs

The 1900/65A provides six relay outputs, four 4-20 mA

recorder outputs, and a dedicated buffered output. The user

can use the 1900 Configuration software to configure the relay

contacts to open or close according to the OK, Alert and

Danger statuses of any channel or combination of channels,

and to provide data from any variable from any channel on any

recorder output. The dedicated buffer output can provide the

signal for each transducer input.
