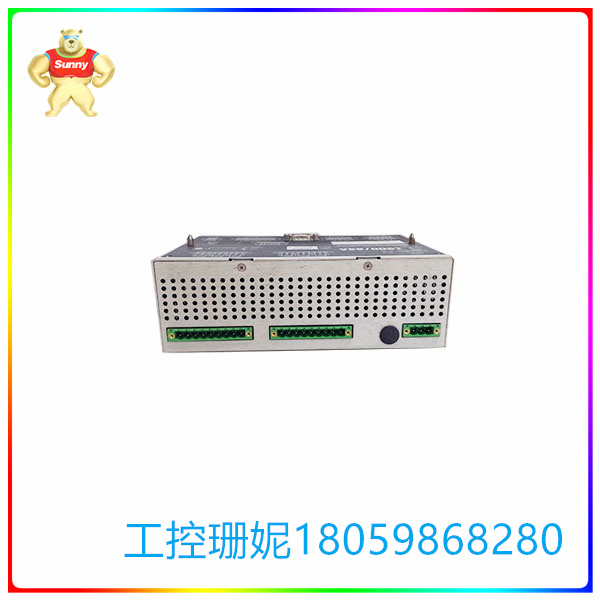

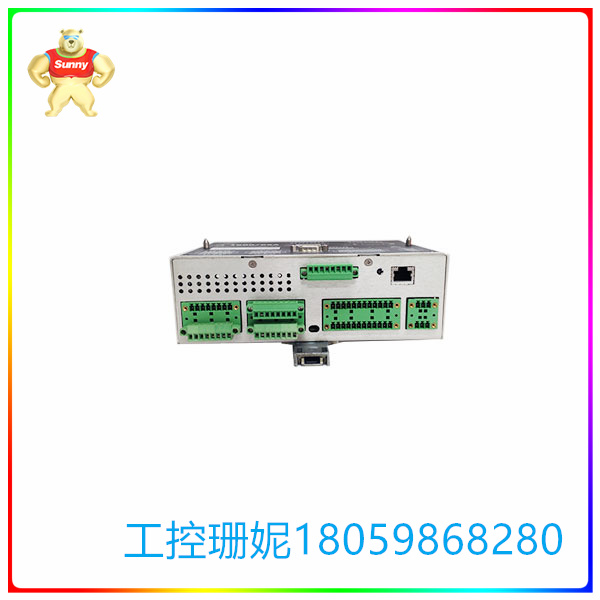

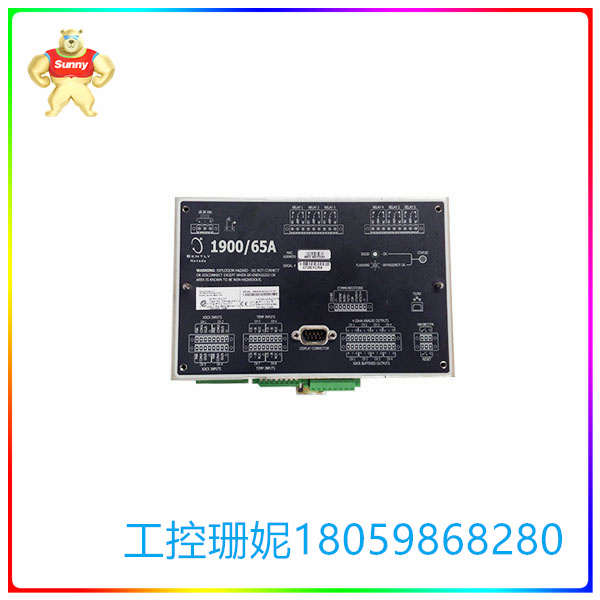

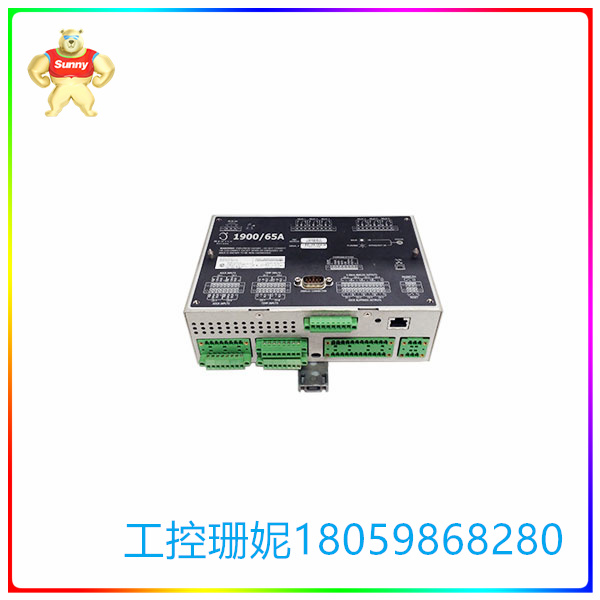

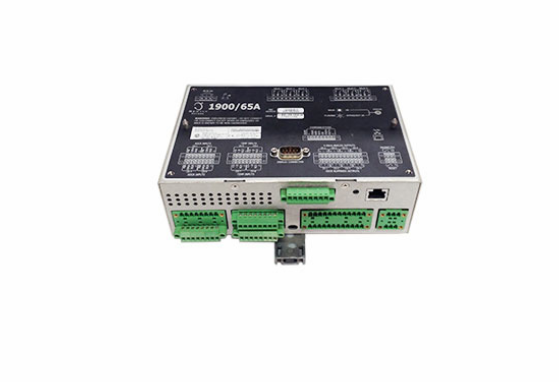

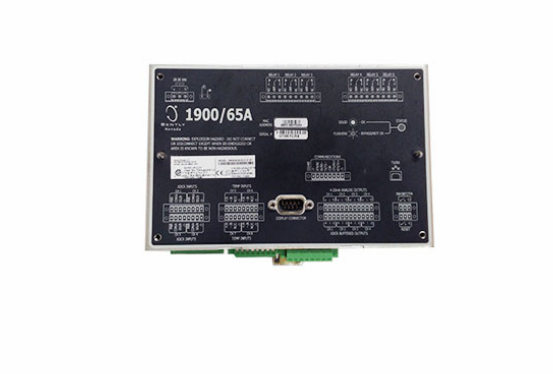

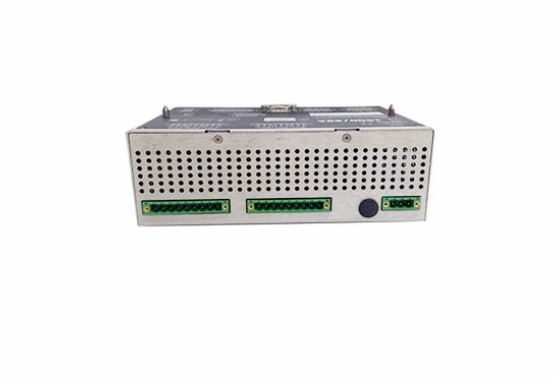

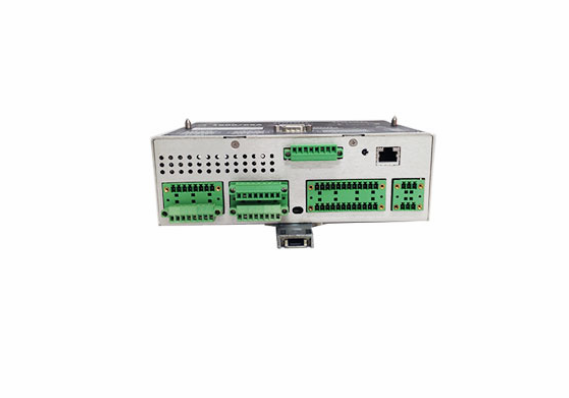

1900/65A 通用设备监视器 旨在持续监测和保护设备
【产品详情】
描述
1900/65A通用设备监视器是
旨在持续监测和保护设备
用于各种应用和行业。的
Monitor的低成本使其成为一般用途机器和过程的理想解决方案,可以从中受益
持续监控和保护。
输入
1900/65A提供4个传感器输入和4个
温度输入。软件可以配置每个传感器
输入支持2线和3线加速度计,速度
传感器或接近传感器。每个温度输入支持
E型,J型,K型和T型热电偶,以及2线或3线rtd。
输出
1900/65A提供6个继电器输出,4个4-20 mA
记录仪输出,以及专用缓冲输出。用户
可以用1900组态软件配置继电器吗
根据OK, Alert和
任何航道或航道组合的危险状况;
并提供来自任何渠道的任何变量的数据
记录器输出。专用缓冲区输出可以提供
每个换能器输入信号。
Modbus网关选项允许监视器提供
静态变量,状态,事件列表,时间和日期信息
直接到任何Modbus客户端,包括分布式控制
系统(dcs),监控和数据采集
(SCADA)系统,可编程逻辑控制器(plc),或
系统1软件。监视器使用一个内部计数器和一个
Modbus客户端/主端时间参考生成时间和
日期信息。用户可以升级监视器而不需要
Modbus网关通过订购1900/01进行通信
升级(请参阅订购信息部分)。的1900/65A
1900/65A通用设备监视器
数据表
本特利内华达机械状态监测
支持通过以太网进行Modbus通信
和一个软件可配置的RS232/485串行端口
1900/65A 通用设备监视器 旨在持续监测和保护设备
【英文介绍】
Description
The 1900/65A General Purpose Equipment Monitor is
designed to continuously monitor and protect equipment that
is used in a variety of applications and industries. The
monitor’s low cost makes it an ideal solution for generalpurpose machines and processes that can benefit from
continuous monitoring and protection.
Inputs
The 1900/65A provides four transducer inputs and four
temperature inputs. Software can configure each transducer
input to support 2- and 3-wire accelerometers, velocity
sensors or proximity sensors. Each temperature input supports
Type E, J, K, and T thermocouples, and 2- or 3-wire RTDs.
Outputs
The 1900/65A provides six relay outputs, four 4-20 mA
recorder outputs, and a dedicated buffered output. The user
can use the 1900 Configuration software to configure the relay
contacts to open or close according to the OK, Alert and
Danger statuses of any channel or combination of channels,
and to provide data from any variable from any channel on any
recorder output. The dedicated buffer output can provide the
signal for each transducer input.
A Modbus Gateway option allows the monitor to provide
static variables, statuses, event list, time and date information
directly to any Modbus client, including Distributed Control
Systems (DCSs), Supervisory Control and Data Acquisition
(SCADA) systems, Programmable Logic Controllers (PLCs), or
System 1 software. The monitor uses an internal counter and a
Modbus client/master time reference to generate time and
date information. Users can upgrade monitors without the
Modbus Gateway by ordering the 1900/01 Communications
Upgrade (see the Ordering Information section). The 1900/65A
1900/65A General Purpose Equipment Monitor
Datasheet
Bently Nevada Machinery Condition Monitoring
supports Modbus communications via Ethernet
and a software-configurable RS232/485 serialport
