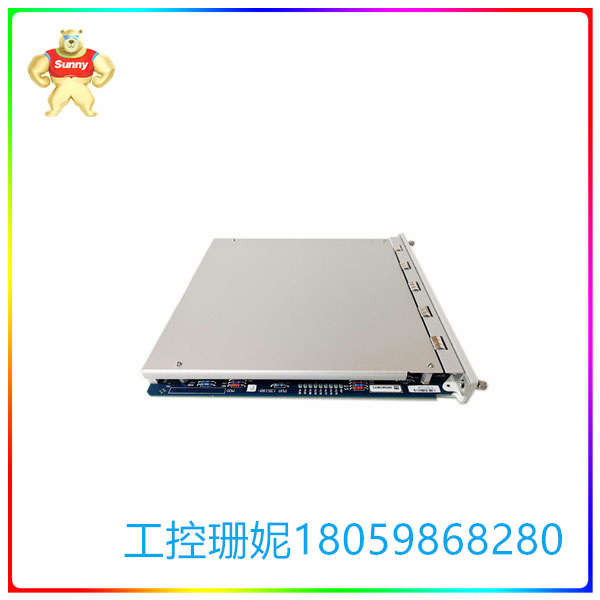

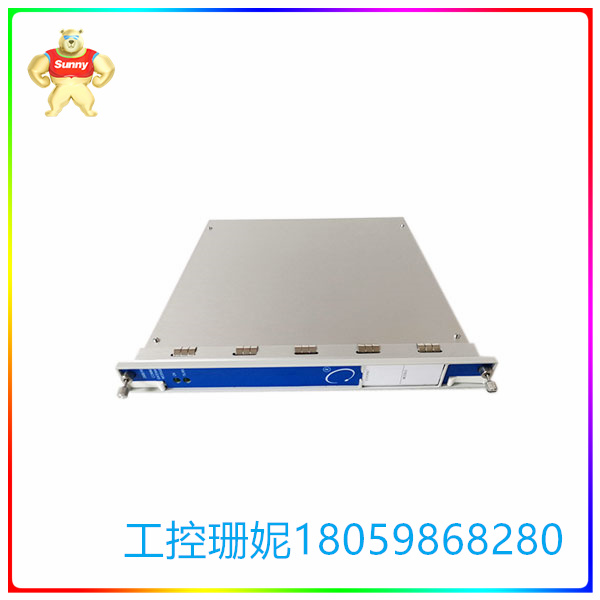

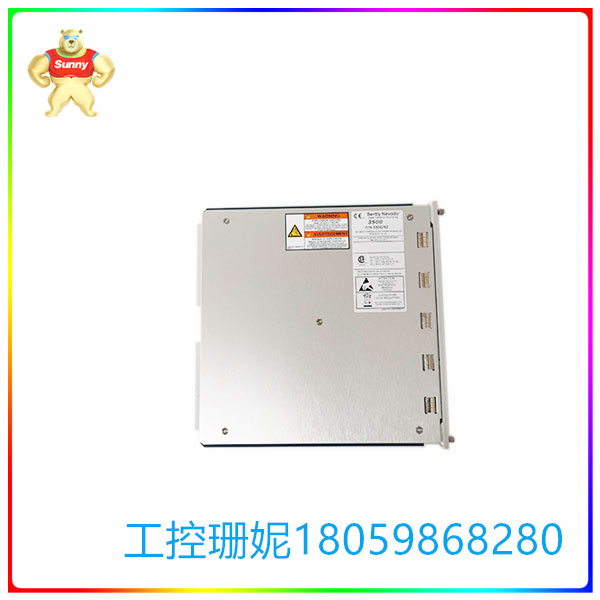

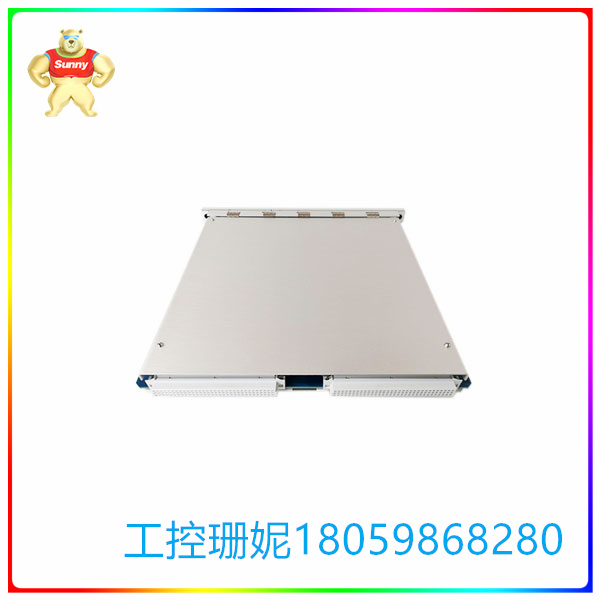

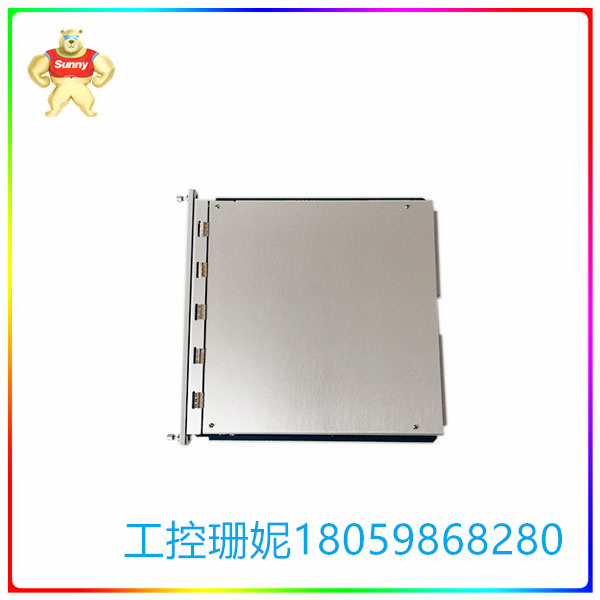

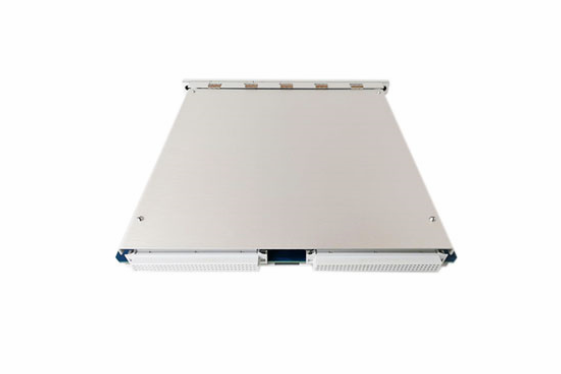

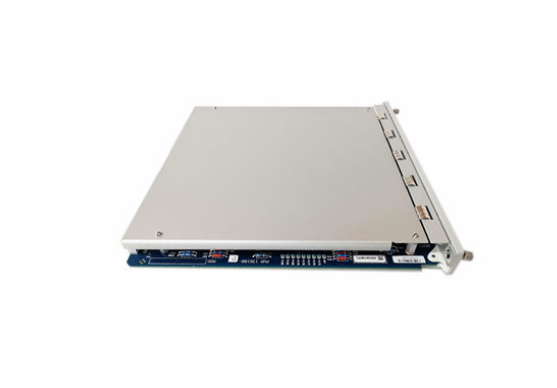

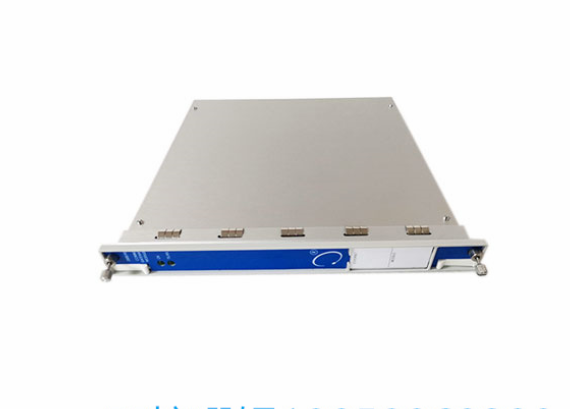

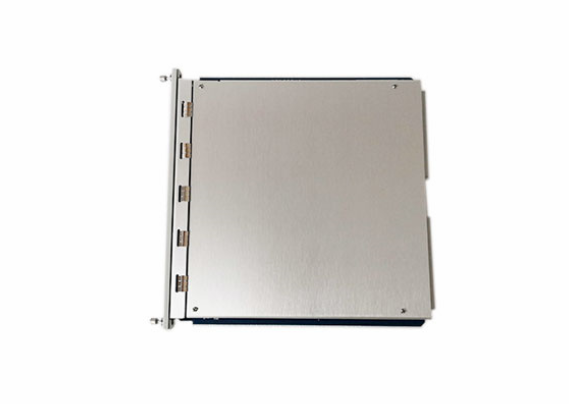

3500/92 136180-01 通信网关模块 用于与过程控制
【产品详情】
描述
3500/92通信网关模块提供了广泛的
所有被监视值和状态的通信能力
用于与过程控制和其他自动化系统集成
使用以太网TCP/IP和串行(RS232/RS422/RS485)
通信能力。它还允许以太网
与3500机架组态软件和数据的通信
采集软件。
支持的协议包括:
l Modicon®Modbus®协议(通过串行通信)
l Modbus/TCP协议(用于串行Modbus的一种变体)
TCP/IP以太网通信)
l专有的本特利内华达协议(用于与
3500机架配置和数据采集软件
包)
到3500/92的以太网连接是RJ45连接
10BASE-T星型配置以太网。
3500/92支持的通信接口，通信
协议，和其他功能从原来的3500/90与
Modbus寄存器的主值异常。现在是3500/92
有一个可配置的Modbus寄存器实用程序，它可以提供
最初由主值Modbus处理的相同功能
寄存器。
3500/92 136180-01 通信网关模块 用于与过程控制
【英文介绍】
500/92 Communication gateway
The 3500/92 communication gateway has extensive communication capabilities to integrate all framework monitoring data and status with process control and other automation systems via Ethernet TCP/IP and serial (RS232/RS422/RS485) communication protocols. It also supports Ethernet communication with the 3500 framework configuration software and data acquisition software. Supported protocols include:
• Modicon Modbus®(via serial communication)
• Modbus/TCP(another form of serial Modbus for TCP/IP Ethernet communication) •
Some Bentley protocols (communicating with 3500 framework configuration and data acquisition packages) 3500/92 connect to 10BASE-T star topology Ethernet via RJ45.
The 3500/92 has the same communication interface, communication protocol, and other features as the 3500/90, except that the 3500/92 has the ability to
The Modbus register function of the configuration can provide the same function as the initial value register.
Front panel light emitting Diode (LED) status
OK LED: indicates that 3500/92 is operating properly.
TX/RX LED: Indicates that the 3500/92 communicates with other modules in the 3500 frame.
1) State LED
2) Communication gateway module
3) RS485 I/O module
4) RS232/RS422 I/O module
5) Ethernet /RS232 I/O module
6) Ethernet /RS485 I/O module
3500/92 Communication gateway
3500/92-AXX-BXX-CXX
Option description
A: Type of the I/O module
0 1 Modbus. RS232/RS422 I/O module
0 2 Modbus. RS485 I/O module
