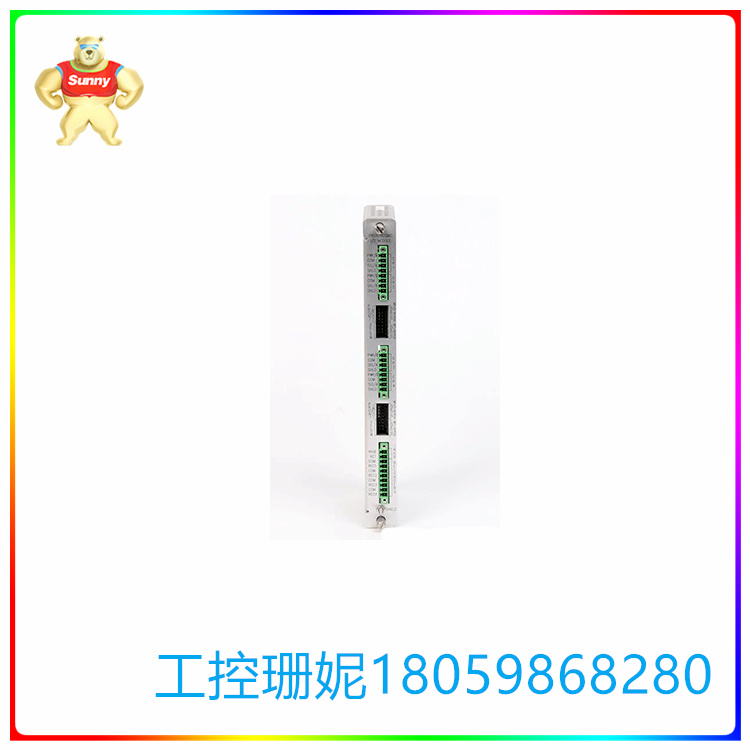

3500/61-01 RTD/TC 非隔离式 I/O 模块 电阻温度检测器
【产品详情】
概述
特征:
(6) 温度监测通道
温度输入:电阻温度检测器(RTD)和热电偶(TC)
每个通道的记录器输出 (3500/61)
RTD/TC 非隔离式或 TC 隔离式版本
GE / Bently Nevada 3500/60 和 3500/61 系列温度监测器模块提供 3500 个温度监测通道,并接受电阻温度检测器 (RTD) 和热电偶 (TC) 温度输入。这些模块对这些输入进行调节,并将其与用户可编程的报警设定值进行比较。60/3500 和 61/3500 提供相同的功能,只是 61/3500 为其六个通道中的每一个通道提供记录器输出,而 60/3500 则没有。 用户使用 250 机架配置软件对模块进行编程,以执行 RTD 或 TC 温度测量。
不同的I/O模块提供RTD/TC非隔离或TC隔离版本。用户可以将 RTD/TC 非隔离版本配置为接受 TC 或 RTD,或者 TC 和 RTD 输入的混合。TC 隔离版本提供 <> Vdc 的 通道间隔离,防止外部干扰。
在三重模块化冗余 (TMR) 配置中使用时,温度监控器必须以三个为一组彼此相邻安装。在此配置中使用时,系统采用两种类型的投票,以确保准确操作并避免单点故障。
3500/61-01 RTD/TC 非隔离式 I/O 模块 电阻温度检测器
【英文介绍】
summarize
Features:
(6) Temperature monitoring channel
Temperature input: Resistance Temperature Detector (RTD) and thermocouple (TC)
Recorder output per channel (3500/61)
RTD/TC non-isolated or TC-isolated versions
GE/Bently Nevada 3500/60 and 3500/61 series temperature monitor modules provide 3,500 temperature monitoring channels and accept resistance temperature detector (RTD) and thermocouple (TC) temperature input. These modules adjust these inputs and compare them to user-programmable alarm setpoints. The 60/3500 and 61/3500 provide the same functionality, except that the 61/3500 provides logger output for each of its six channels, while the 60/3500 does not. Users program modules with 250 rack configuration software to perform RTD or TC temperature measurements.
Different I/O modules offer RTD/TC non-isolated or TC-isolated versions. Users can configure the RTD/TC non-isolated version to accept TC or RTD, or a mixture of TC and RTD inputs. The TC isolation version provides <> Vdc channel isolation to prevent external interference.
When used in a triple modular redundancy (TMR) configuration, the temperature monitors must be installed in groups of three adjacent to each other. When used in this configuration, the system uses two types of voting to ensure accurate operation and avoid a single point of failure.
3500/61-01 RTD/TC 非隔离式 I/O 模块 电阻温度检测器
