330180-90-05  速度测量和油膜轴承机

【产品详情】

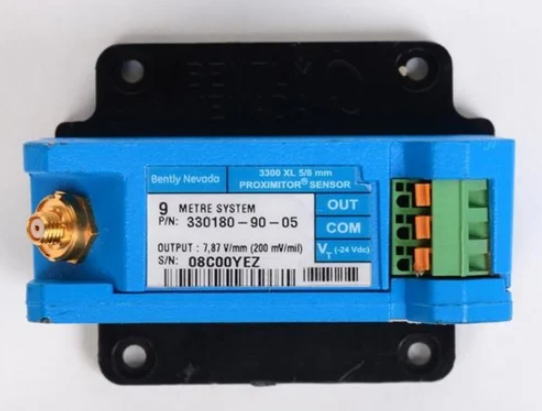

配置： • 总长度和安装选项：9 米系统长度，面板安装

• 机构批准选项：

多项批准

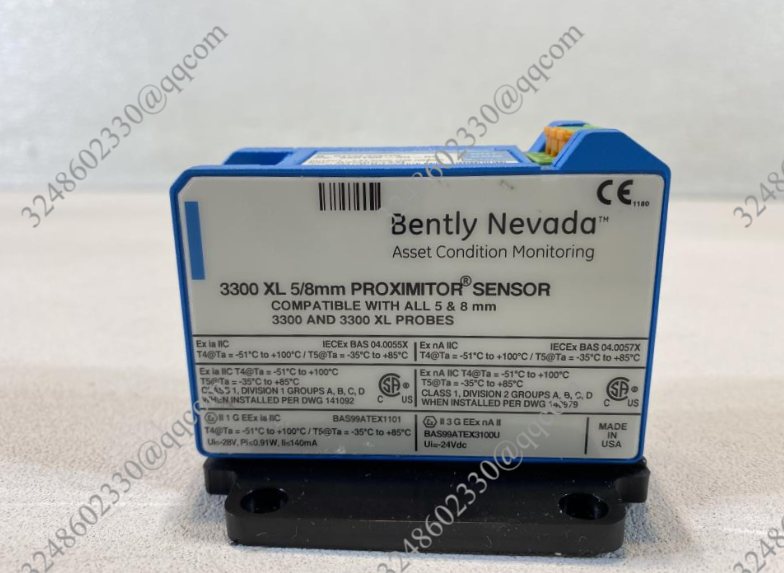

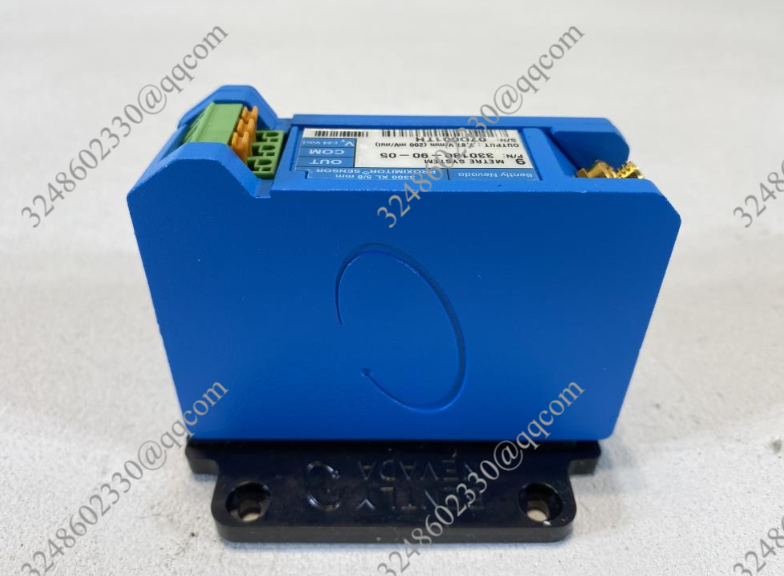

GE / Bently 3300 XL 5/8mm 接近传感器与所有 5 和 8 mm 3300 和 3300 XL 探头兼容。与以前的设计相比，3300 XL 接近传感器进行了许多改进。其物理包装允许您在高密度 DINrail 安装中使用它。您还可以将传感器安装在传统的面板安装配置中，它与旧的 Proximitor 传感器设计共享相同的 4 孔安装“尺寸”。任一选项的安装底座均提供电气隔离，无需单独的隔离板。

部件号： 330180-90-05

特征：

适用于压缩系统、速度测量和油膜轴承机

扩展温度范围应用

单元和布线的完全可互换性

向后兼容其他非 3300 XL 系列传感器系统组件

GE / Bently Nevada 3300 XL 8mm 接近传感器系统由一个 3300 XL 8mm 探头、一个 3300 XL 延长电缆和一个 3300 XL 接近传感器组成。该系统提供的输出电压与探头尖端和观察到的导电表面之间的距离成正比，可以测量静态（位置）和动态（振动）值。系统的 主要应用是流体膜的振动和位置测量 轴承机，以及键相参考和速度测量。标准 3300 XL 8 mm 5 米 该系统还完全符合美国石油协会 （API） 670 标准（第 4 版）的机械配置、线性范围、精度和温度稳定性。所有 3300 XL 8 mm 接近传感器系统均提供 这种性能水平并支持探头、延长电缆和 Proximitor 传感器的完全互换性，无需匹配或对单个组件进行台架校准。

每个 3300 XL 8 mm 传感器系统组件都向后兼容，并可与其他非 XL 3300 系列 5 mm 和 8 mm 传感器系统组件互换。这种兼容性包括 3300 5 mm 探头，用于 8 mm 探头对于可用安装空间来说太大的应用。

330180-90-05  速度测量和油膜轴承机

【英文介绍】

Configuration: • Total length and mounting options: 9 m system length, panel mounted

• Agency approval options:

Multiple approvals

The GE/Bently 3300 XL 5/8mm proximity sensor is compatible with all 5 and 8mm 3300 and 3300 XL probes. The 3300 XL proximity sensor features a number of improvements over previous designs. Its physical packaging allows you to use it in high-density DINrail installations. You can also mount the sensor in a traditional panel mount configuration, which shares the same 4-hole mount "dimensions" as the older Proximitor sensor design. The mounting base of either option provides electrical isolation without the need for a separate isolation plate.

Part number: 330180-90-05

Features:

Suitable for compression systems, speed measurement and oil film bearing machines

Extended temperature range application

Full interchangeability of cells and wiring

Backward compatible with other non-3300 XL series sensor system components

The GE/Bently Nevada 3300 XL 8mm proximity sensor system consists of a 3300 XL 8mm probe, a 3300 XL extension cable, and a 3300 XL proximity sensor. The system provides an output voltage that is proportional to the distance between the probe tip and the observed conductive surface, allowing both static (position) and dynamic (vibration) values to be measured. The main applications of the system are fluid film vibration and position measurement bearing machines, as well as bond phase reference and velocity measurement. Standard 3300 XL 8 mm 5 m The system is also fully compliant with the American Petroleum Institute (API) 670 standard (4th edition) for mechanical configuration, linear range, accuracy and temperature stability. All 3300 XL 8 mm proximity sensor systems offer this level of performance and support full interchangeability of the probe, extension cable and Proximitor sensors without the need to match or bench calibrate individual components.

Each 3300 XL 8 mm sensor system component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm sensor system components. This compatibility includes 3300 5 mm probes for applications where 8 mm probes are too large for the available mounting space.
