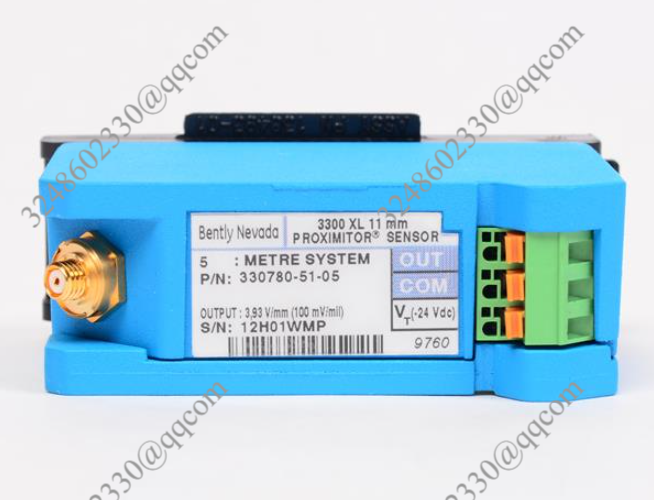

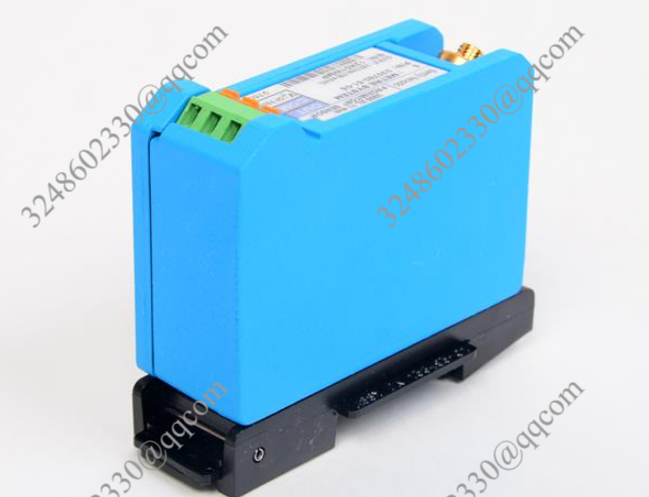

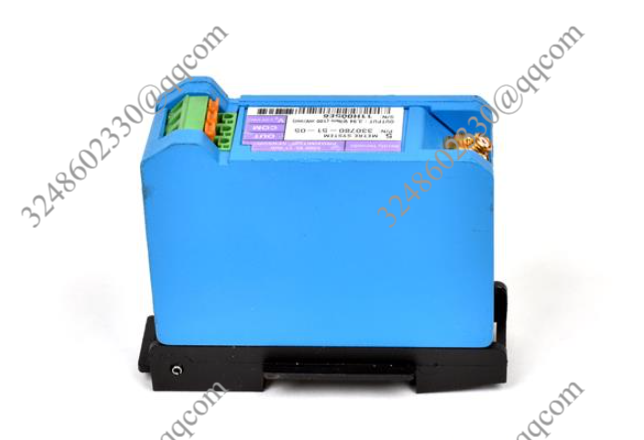

330780-51-05接近传感器 传感器系统

【产品详情】

特征：

3.94 V/mm （100 mV/mil） 输出

长线性范围

超薄设计

GE / Bentley Nevada 3300 XL 11mm 接近传感器系统旨在取代 7200 系列 11 mm 和 14 mm 传感器系统。从 7200 系列系统升级到 3300 XL 11 mm 系统时，必须将每个组件更换为 3300 XL 11 mm 组件。此外，必须更新监控系统。如果使用 3500 监控系统，则需要更新版本的配置软件，将 3300 XL 11 mm 传感器系统列为兼容选项。现有的 3300 监控系统可能需要修改。

3300 XL 11 mm 接近传感器具有与 3300 XL 8 mm 接近传感器相同的高级功能。其纤薄的设计使其可以安装在高密度DIN导轨安装或更传统的面板安装配置中。改进的 RFI/EMI 抗扰度使 3300 XL 接近传感器无需任何特殊的安装考虑即可获得欧洲 CE 标志认证。这种 RFI 抗扰度还可以防止换能器系统受到附近高频无线电信号的不利影响。Proximitor 传感器上的 SpringLoc 端子排不需要特殊的安装工具，便于更快、高度坚固的现场接线连接。

330780-51-05接近传感器 传感器系统

【英文介绍】

Features:

3.94 V/mm (100 mV/mil) output

Long linear range

Ultra-thin design

The GE/Bentley Nevada 3300 XL 11mm proximity sensor system is designed to replace the 7200 series 11mm and 14 mm sensor systems. When upgrading from a 7200 series system to a 3300 XL 11 mm system, each component must be replaced with a 3300 XL 11 mm component. In addition, monitoring systems must be updated. If a 3500 monitoring system is used, a newer version of the configuration software is required to list the 3300 XL 11 mm sensor system as a compatible option. The existing 3300 monitoring system may need to be modified.

The 3300 XL 11 mm proximity sensor has the same advanced features as the 3300 XL 8 mm proximity sensor. Its slim design allows it to be installed in high-density DIN rail mounting or more traditional panel mount configurations. Improved RFI/EMI immunity enables the 3300 XL proximity sensor to achieve European CE Mark certification without any special installation considerations. This RFI immunity also prevents the transducer system from being adversely affected by nearby high-frequency radio signals. The SpringLoc terminal block on the Proximitor sensor requires no special installation tools for faster, highly robust field connections.

330780-51-05接近传感器 传感器系统
