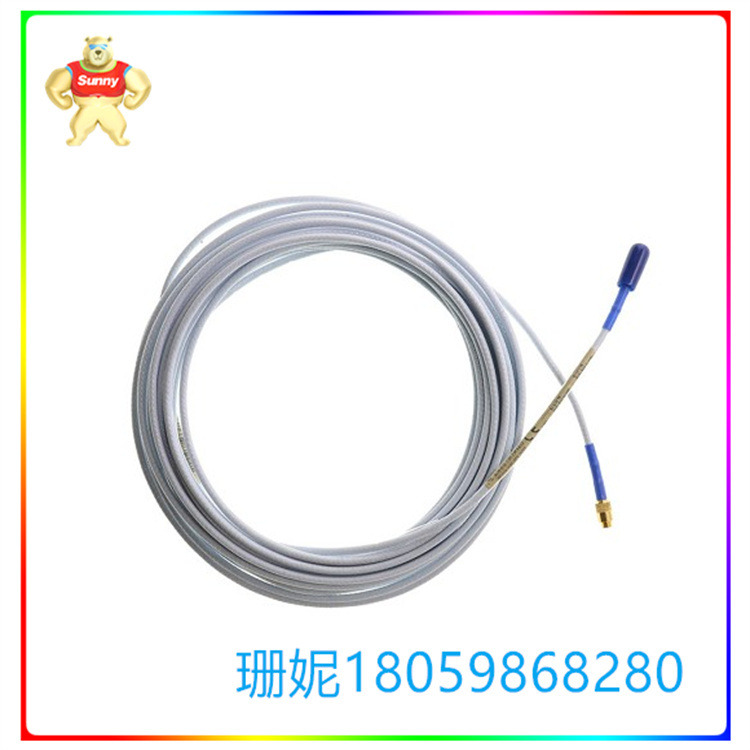

330130-080-00-00 标准延长线 连接器保护器和电缆

【产品详情】

配置： • 电缆长度：

8 米（26.2 英尺）

• 连接器保护器和电缆选项：标准电缆

• 机构批准选项：无

特征：

适用于压缩系统、速度测量和油膜轴承机

扩展温度范围应用

单元和布线的完全可互换性

向后兼容其他非 3300 XL 系列传感器系统组件

Bently Nevada 3300 XL 8mm 接近传感器系统由一个 3300 XL 8mm 探头、一个 3300 XL 延长电缆和一个 3300 XL 接近传感器组成。该系统提供的输出电压与探头尖端和观察到的导电表面之间的距离成正比，可以测量静态（位置）和动态（振动）值。系统的 主要应用是流体膜的振动和位置测量 轴承机，以及键相参考和速度测量。标准 3300 XL 8 mm 5 米 该系统还完全符合美国石油协会 （API） 670 标准（第 4 版）的机械配置、线性范围、精度和温度稳定性。所有 3300 XL 8 mm 接近传感器系统均提供 这种性能水平并支持探头、延长电缆和 Proximitor 传感器的完全互换性，无需匹配或对单个组件进行台架校准。

每个 3300 XL 8 mm 传感器系统组件都向后兼容，并可与其他非 XL 3300 系列 5 mm 和 8 mm 传感器系统组件互换。这种兼容性包括 3300 5 mm 探头，用于 8 mm 探头对于可用安装空间来说太大的应用。

3300 XL 接近器传感器部件号明细（除非另有说明，否则从 Artisan 出售时不包括在内） 330180-AXXX-BXX

330130-080-00-00 标准延长线 连接器保护器和电缆

【英文介绍】

Configuration: • Cable length:

8 m (26.2 ft)

• Connector protector and cable options: Standard cable

• Agency approval options: None

Features:

Suitable for compression systems, speed measurement and oil film bearing machines

Extended temperature range application

Full interchangeability of cells and wiring

Backward compatible with other non-3300 XL series sensor system components

The GE/Bently Nevada 3300 XL 8mm proximity sensor system consists of a 3300 XL 8mm probe, a 3300 XL extension cable, and a 3300 XL proximity sensor. The system provides an output voltage that is proportional to the distance between the probe tip and the observed conductive surface, allowing both static (position) and dynamic (vibration) values to be measured. The main applications of the system are fluid film vibration and position measurement bearing machines, as well as bond phase reference and velocity measurement. Standard 3300 XL 8 mm 5 m The system is also fully compliant with the American Petroleum Institute (API) 670 standard (4th edition) for mechanical configuration, linear range, accuracy and temperature stability. All 3300 XL 8 mm proximity sensor systems offer this level of performance and support full interchangeability of the probe, extension cable and Proximitor sensors without the need to match or bench calibrate individual components.

Each 3300 XL 8 mm sensor system component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm sensor system components. This compatibility includes 3300 5 mm probes for applications where 8 mm probes are too large for the available mounting space.

3300 XL Proximity sensor Part Number detail (not included when sold from Artisan unless otherwise stated) 330180-AXXX-BXX

330130-080-00-00 标准延长线 连接器保护器和电缆
