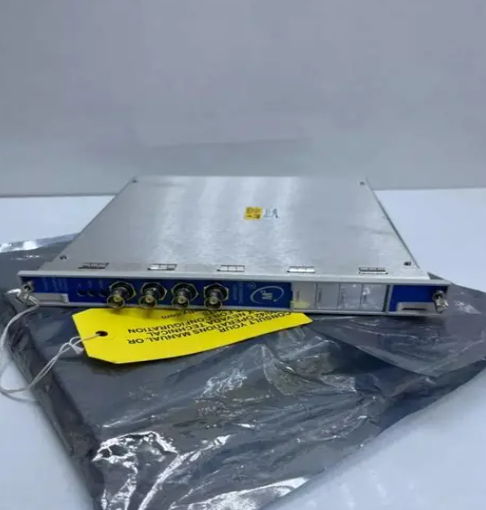

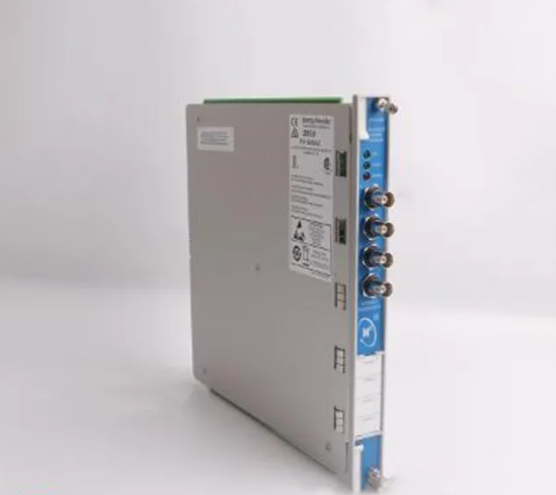

3500/42M 176449-02 位移速度加速度监测器

【产品详情】

3500/42M 位移/速度加速度监测器和3500/40M功能相似，只是功能更强一些，它也是一个4 通道 

监测器，它可以接受来自位移、速度、加速度传感器的信号，通过对这些信号的处理，它可以完成各种不同的振动和位置测量，并将处理的信号与用户编程的报警值进行比较。

3500/42M 的每个通道均可以使用3500 框架组态软件进行编程，完成下列各种功能：

 径向振动 

轴向位移

差胀 

偏心

REBAM. 

加速度

速度

轴绝对振动 •

圆形可接受区

注: 监测器通道成对编程，可以同时完成最多以上两个功能。通道1 和2 可以完成一个功能，而通道3 和4 完成另一个(或相同的)功能。 3500/42M前面板LED（发光二极管）的含义及通过其进行的故障诊断与前面的3500/40M模件相似。

3500/42M 176449-02 位移速度加速度监测器

【英文介绍】

The 3500/42M displacement/velocity acceleration monitor is similar to the 3500/40M, only more powerful, it is also a 4-channel

Monitor, which can accept signals from displacement, speed, acceleration sensors, through the processing of these signals, it can complete a variety of different vibration and position measurements, and the processed signal is compared with the user's programmed alarm value.

Each channel of 3500/42M can be programmed using the 3500 Framework configuration software to accomplish the following functions:

Radial vibration

Axial displacement

Differential expansion

partiality

REBAM. 

acceleration

speed

Shaft absolute vibration •

Circular acceptable zone

Note: The monitor channels are programmed in pairs to perform up to two functions at the same time. Channels 1 and 2 can accomplish one function, while channels 3 and 4 accomplish another (or the same) function. The meaning of the 3500/42M front panel LED (light emitting diode) and the fault diagnosis through it are similar to the previous 3500/40M module.

3500/42M 176449-02 位移速度加速度监测器
