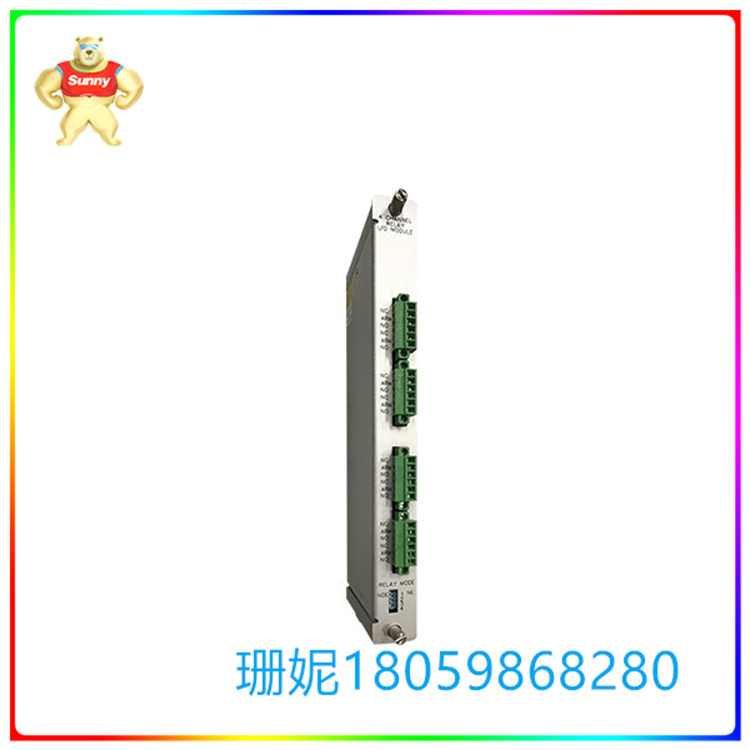

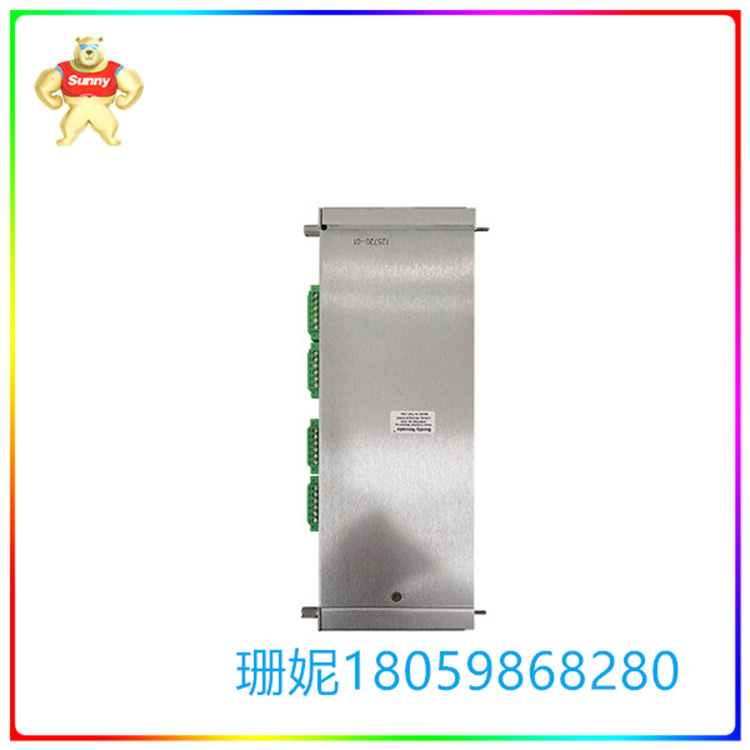

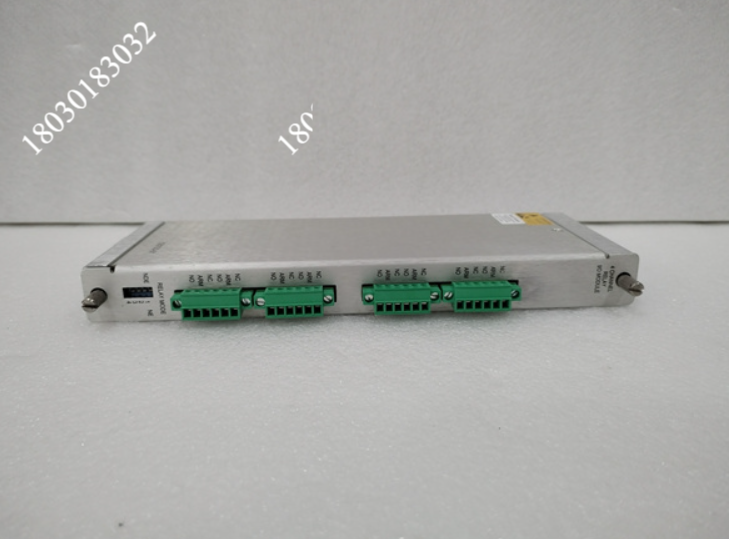

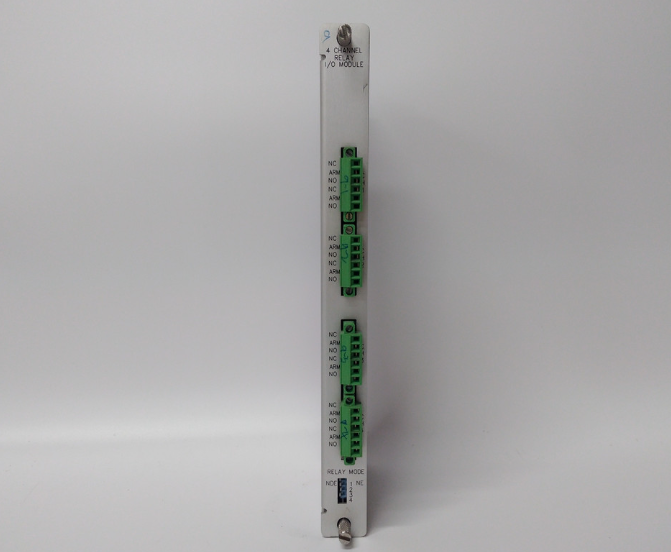

125720-01 4通道继电器模块

【产品详情】

125720-01  BENTLY技术规格

4通道继电器模块是一个全高模块，它提供四个继电器输出。任意数量的4通道继电器模块可以放置在右侧的任何插槽中瞬态数据接口模块。4-的每个输出通道继电器模块可以独立编程，以执行投票逻辑。4通道继电器模块上使用的每个继电器包括报警驱动逻辑。报警驱动逻辑的编程使用AND和or逻辑，并且可以使用报警输入(警报和危险状态)，不正常，或来自任何监控通道或任何机架中监视器通道的组合。你可以对该报警驱动器进行编程，以满足您的应用需求使用3500框架配置软件

订购3500台显示器危险认证选项(01 & -2)已通过2区/2区认证标准(包括ATEX/IECEx和北美地区师)。第二区/第二区标准规定增加较高位置的间距要求电压和3500/32M继电器不符合这些间距要求。由于这个原因，与一起订购的3500/32M继电器危险区域认证选项(包括特定国家危险区域认证选项)历史上被限制在低于订购的电压通过非危险认证选项。使用更高的电压会侵犯危险区域与关联的证书危险区域认证选项。如果3500/32M是功能安全(SIL系统功能安全证书需要限制电压。不允许更高的电压功能安全(SIL)系统。可以连接现场布线至3500/32M继电器，以便导体暴露于潜在的人类接触。这可能在高温下存在电击危险电压。客户只能使用电压下的3500/32M继电器指定。适当的安全必须采取预防措施关于电击危险。

125720-01 4通道继电器模块

【英文介绍】

125720-01 BENTLY Technical specifications

The 4-channel relay module is a full-height module that provides four relay outputs. Any number of 4-channel relay modules can be placed in any slot on the right of the transient data interface module. Each of the 4- output channel relay modules can be programmed independently to perform voting logic. Each relay used on the 4-channel relay module includes alarm drive logic. The alarm driver logic is programmed using AND and or logic, and can use a combination of alarm inputs (alarm and danger status), abnormal, or from any monitoring channel or monitor channel in any rack. You can program the alarm driver to meet your application needs using the 3500 framework configuration software

Order 3,500 Display Hazard Certification Options (01&-2) have passed Zone 2 / Zone 2 certification standards (including ATEX/IECEx and North American Regional Division). The Zone 2 / Zone 2 standard specifies increased spacing requirements for higher positions and the voltage and 3500/32M relays do not meet these spacing requirements. For this reason, hazardous zone certification options ordered with 3500/32M relays (including country-specific hazardous zone certification options) have historically been limited to voltages below the ordered through non-hazardous certification options. Using higher voltages will violate the hazardous zone authentication options associated with the certificate Hazardous Zone authentication. If 3500/32M is functionally safe (SIL system Functional Safety certificate requires limited voltage. Higher voltage functional safety (SIL) systems are not allowed. Field wiring to 3500/32M relays can be connected so that conductors are exposed to potential human contact. This may present a dangerous voltage of electric shock at high temperatures. Customers can only use the 3500/32M relay under voltage specified. Proper safety precautions must be taken regarding the danger of electric shock.

125720-01 4通道继电器模块
