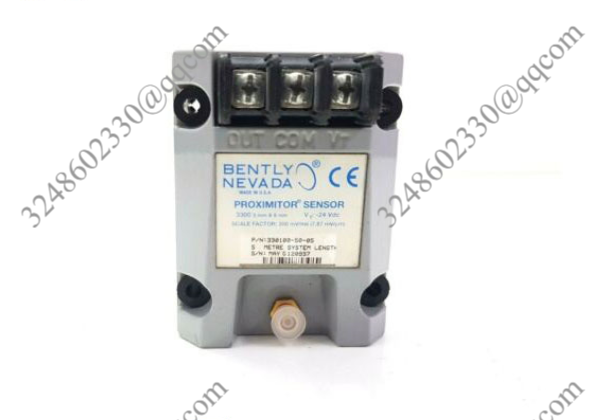

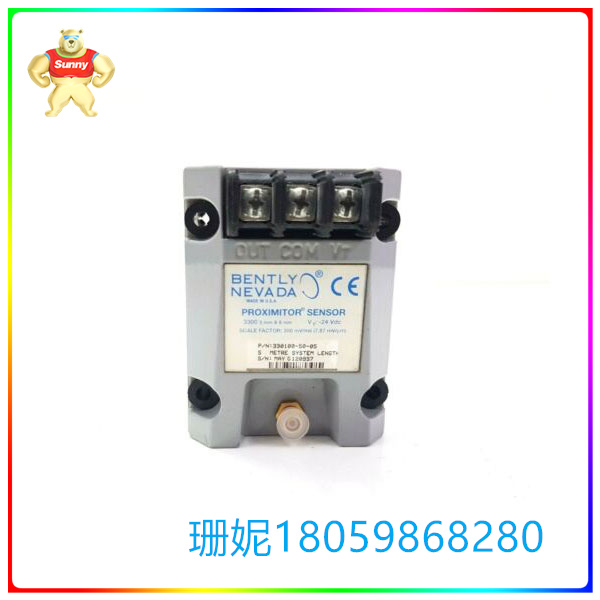

330100-50-05 3300 接近传感器 Bently

【产品详情】

制造商 ： 本特利内华达

商品编号 ： 330100-50-05

产品类型 ： 3300 接近传感器

总长度选项 ： 50 = 5.0 米（16.4 英尺）

机构批准选项 ： 05 = 多个批准

® 近似传感器材料：A383铝。

工作温度 ： -51°C 至 +100°C（-60°F 至 +212°F）

储存温度 ： -51°C 至 +100°C （-60°F 至 +212°F）

装运重量 ： 1.5 千克

位置传感器配套使用的探头可选范围比较广，以3300XL25mm探头为例，3300 XL 25毫米探头设计用于苛刻的蒸汽透平DE环 境。它能在高达200℃ (392° F)的温度下持续运行并保 持精度，还可以承受250℃ (482° F)的间歇高温。25毫 米探头前后密封，并使用FluidLoc*电缆（所有25毫米 探头均为标准型），防止湿气进入探头端部。特殊的 高温ClickLoc*接头也是探头和延伸电缆的标准配置。 每个探头和电缆都带有接头保护器和一次性接头保 护器安装工具，确保接头不受污染。探头引线上的 ClickLoc接头具有可拆卸的凸缘，帮助在紧密间隙内缠 绕电缆。 3300 XL 25毫米探头有多种探头壳体形式，包括1¼-12 或1½-12英制螺纹、M30x2或M39x1.5公制螺纹或侧面 或尾部引线探头带有直径为1.06或1.50英寸的无螺纹 探头壳体。此外，有螺纹的3300 XL 25毫米探头壳体 在标准供货中提供带有预钻安全导线孔的锁紧螺母。

与之对相应的常用型号如下：

330851-01-000-020-10-00-05 330851-01-000-030-10-00-05 330851-02-000-040-10-00-05 330851-02-000-080-10-00-05 330851-04-000-015-10-00-05 330851-04-000-020-10-00-05

330100-50-05 3300 接近传感器 Bently

【英文介绍】

Manufacturer: Bentley, Nevada

Product Number: 330100-50-05

Product Type: 3300 Proximity sensor

Total Length options: 50 = 5.0 m (16.4 ft)

Agency Approval options: 05 = multiple approvals

® Approximate sensor material: A383 aluminum.

Operating temperature: -51°C to +100°C (-60°F to +212°F)

Storage temperature: -51°C to +100°C (-60°F to +212°F)

Shipping weight: 1.5 kg

The range of probes used in the position sensor package is relatively wide, with the 3300XL25mm probe as an example, and the 3300XL25mm probe designed for the harsh steam turbine DE environment. It can operate continuously and maintain accuracy at temperatures up to 200 ° C (392° F) and can also withstand intermittent high temperatures of 250 ° C (482° F). The 25mm probe is sealed front and rear and uses FluidLoc* cables (standard for all 25mm probes) to prevent moisture from entering the probe end. Special high temperature ClickLoc* connectors are also standard with probes and extension cables. Each probe and cable comes with a connector protector and a disposable connector protector installation tool to ensure that the connector is not contaminated. The ClickLoc connector on the probe lead has a removable flange to help wrap the cable in tight gaps. The 3300 XL 25mm probe is available in a variety of probe housing forms, including 1¼-12 or 1½-12 inch threads, M30x2 or M39x1.5 metric threads, or side or tail lead probes with unthreaded probe housing with a diameter of 1.06 or 1.50 inches. In addition, the threaded 3300 XL 25mm probe housing is available in standard supply with a lock nut with a pre-drilled safety lead hole.

The corresponding common models are as follows:

330851-01-000-020-10-00-05 330851-01-000-030-10-00-05 330851-02-000-040-10-00-05 330851-02-000-080-10-00-05 330851-04-000-015-10-00-05 330851-04-000-020-10-00-05
