143416-01 耐高温电涡流传感器 bently3300

【产品详情】

制造商 ： 本特利内华达

产品编号: 143416-01

产品类型 ： 3300 XL 接近®传感器

本特利bently3300耐高温电涡流传感器

3300耐高温电涡流系统可以用于在高温区域的电涡流式测量，并具 有相当理想的测量结果。为用户带来的收益包括：

1、 具有整体硬线电缆的电涡流探头在条件下可连续承受 +350℃ (+662° F) 的恶劣环境下的高温 •

2、 4mm（160 mils)的线性范围，可以在高温机器的大部分部位大 范围进行测量 •

3、密封式陶瓷探头端，防潮防污染，可延长使用寿命 •

4、 陶瓷端部以及不锈钢结构，耐热、防潮和防腐蚀。 •

5、 具有螺纹和无螺纹壳体，适用于多种探头安装类型 •

6、 可采用长度为1、2或5米的硬线电缆，用于从机器的高温部位引 线

•7、 具有3.94 V/mm (100 mV/mil)信号输出，实际上与所有新的及现 有的Bently Nevada监测和诊断设备相兼容。

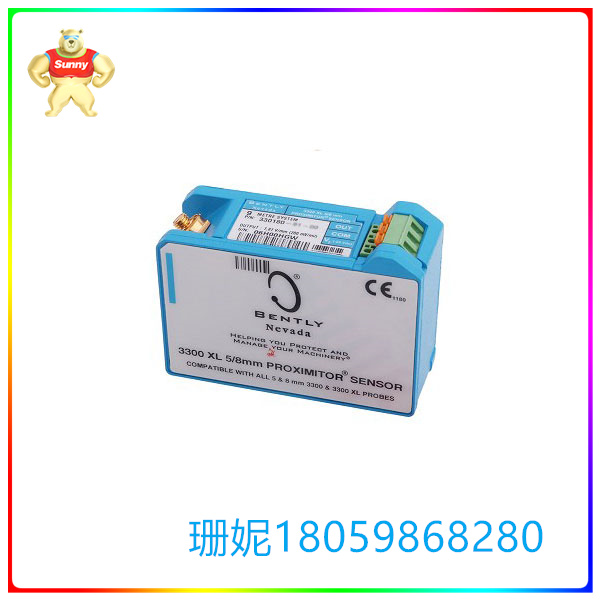

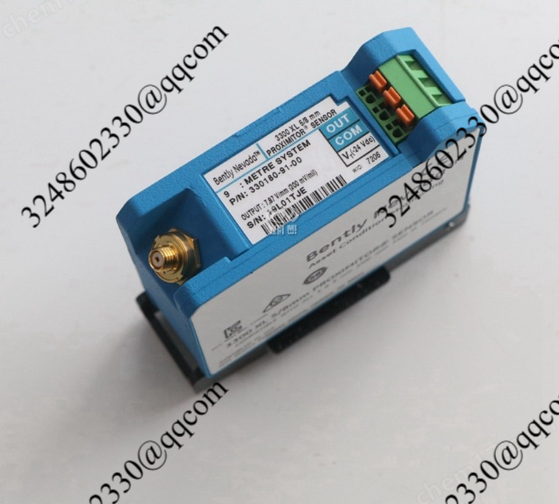

Bently本特利前置放大器3300全新批量到货

本特利3300耐高温前置器电气特性

前置器 输入

接收配有配套延伸电缆的非接触式 3300 HTPS 16mm电涡流探头。

电源

要求-19.6 Vdc至-26 Vdc，电流大为 12 mA。在高于-23.5 Vdc的正电压下 工作时会导致线性范围缩小。

 电源灵敏度

输入电压每变化1伏特，输出电压变 化不超过13 mV。

输出阻抗

50Ω

探头直流阻抗：

探头长度(米） 中心导体至外部导体的阻抗 （RPROBE）（ohms） 1.0 5.06 2.0 5.82 5.0 8.11

延伸电缆直流阻抗：

延伸电缆的长度 (m)

中心导体至中 心导体的阻抗 (RCORE) (ohms)

同轴导体至同 轴导体的阻抗 (RJACKET (ohms) 4.0 0.88 0.26 7.0 1.62 0.49 8.0 1.84 0.55

延伸电缆电容：

标准值69.9 pF/m (21.3 pF/ft)

现场接线：

3300 HTPS前置器到监测器之间大 长度为305米（1000英尺）。采用更 长现场接线时的信号衰减见频率响应 图。

线性范围：

4.0mm（160 mils)。线性范围始于距 靶大约0.5mm（20 mils)处，从0.5至 4.5mm（20至180 mils）（大约-2至 -18Vdc）。

*间隙设定值： 2.5mm(100 mils)

143416-01 耐高温电涡流传感器 bently3300

【英文介绍】

Manufacturer: Bentley, Nevada

Product Number: 143416-01

Product Type: 3300 XL Proximity ® sensor

Bentley bently3300 high temperature resistance eddy current sensor

The 3300 high temperature eddy current system can be used for eddy current measurement in high temperature areas, and has quite ideal measurement results. Benefits for users include:

1. Eddy current probes with integral hard wire cables can continuously withstand high temperatures in harsh environments of +350 ° C (+662° F) under conditions

2, 4mm (160 mils) linear range, can be measured in most parts of the high-temperature machine wide range •

3, sealed ceramic probe end, moisture and pollution prevention, can extend the service life •

4, ceramic end and stainless steel structure, heat, moisture and corrosion resistance. •

5, with threaded and unthreaded housing, suitable for a variety of probe mounting types

6, the length of 1, 2 or 5 meters of hard wire cable can be used to lead from the high temperature parts of the machine

3.94 V/mm (100 mV/mil) signal output, compatible with virtually all new and existing Bently Nevada monitoring and diagnostic equipment.

New batch arrival of Bently Bentley preamplifier 3300

Electrical characteristics of Bentley 3300 high temperature preprocessor

Preprocessor input

Receive non-contact 3300 HTPS 16mm eddy current probe with matching extension cable.

Power source

Requirements -19.6 Vdc to -26 Vdc, the current is 12 mA. Operating at positive voltages higher than -23.5 Vdc results in reduced linear range.

Power supply sensitivity

For every 1 volt change in the input voltage, the output voltage changes not more than 13 mV.

Output impedance

50 Ω

Probe DC impedance:

Probe length (m) Central conductor to external conductor impedance (RPROBE) (ohms) 1.0 5.06 2.0 5.82 5.0 8.11

Dc impedance of extended cable:

Length of extended cable (m)

Impedance from center conductor to Center conductor (RCORE) (ohms)

Impedance of coaxial conductor to coaxial conductor (RJACKET (ohms) 4.0 0.88 0.26 7.0 1.62 0.49 8.0 1.84 0.55

Extended cable capacitance:

Standard value 69.9pF /m (21.3pF /ft)

Field connection:

The maximum length between the 3300 HTPS preprocessor and the monitor is 305 m (1000 ft). The signal attenuation for longer field connections is shown in the frequency response diagram.

Linear range:

4.0mm (160 mils). The linear range begins at approximately 0.5mm (20 mils) from the target and ranges from 0.5 to 4.5mm (20 to 180 mils) (approximately -2 to -18Vdc).

* Gap setting value: 2.5mm(100 mils)

143416-01 耐高温电涡流传感器 bently3300
