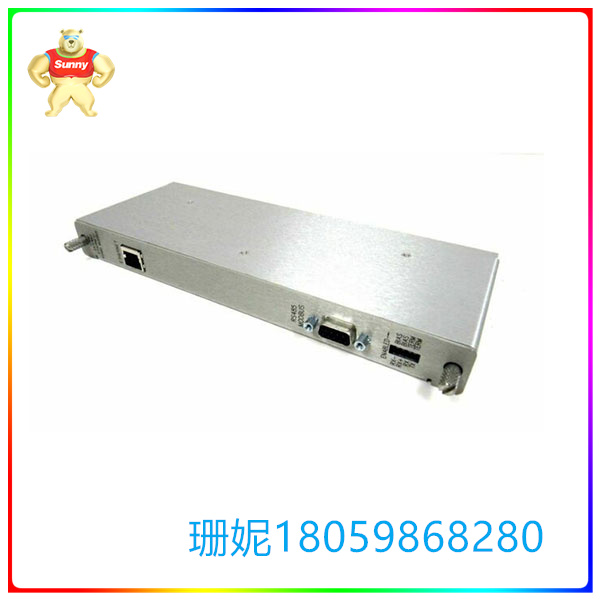

BENTLY 125768-01 监测设备

BENTLY  125768-01 监测设备

BENTLY 125768-01 是一种连续在线变压器监测设备，用于测量电力变压器绝缘油的各种参数。以下是有关 BENTLY 125768-01 的一些详细信息：  功能：BENTLY 125768-01 持续监测变压器绝缘油中的关键故障气体、水分和温度。它可以在早期发现故障，从而在问题变得严重之前采取纠正措施。 主要特点：BENTLY 125768-01 采用基于微处理器的设计，允许灵活和可定制的警报设置。它有一个显示实时数据的背光 LCD 显示屏，以及一个记录警报和故障事件的内置事件日志。该设备通常安装在防风雨外壳中，可以连接到远程控制面板或监控系统。 传感器：BENTLY 125768-01 使用专有的气体和湿度传感器来检测关键故障气体的存在，例如氢气和一氧化碳，以及变压器油中的水分含量。它还有一个温度传感器来监测油温。 通信：BENTLY 125768-01 支持各种通信协议，包括 Modbus、DNP3 和 IEC 61850，使其能够集成到现有的控制和监控系统中。 电源要求：该设备可采用交流或直流电源供电，功耗低，小于10瓦。 应用：BENTLY 125768-01 用于各种应用，包括发电、输电和配电，以及使用电力变压器的大型工业设施。 总体而言，BENTLY 125768-01 是一款功能强大且可靠的变压器监控设备，可提供变压器故障的连续监控和早期检测。其先进的传感器、灵活的警报和通信功能使其成为许多电力系统监测和控制系统的重要组成部分。

美国本特利（bently nevada）公司的bently3500系统提供连续、在线监测功能，适用于机械保护应用。bently3500系统组成：3500/05 仪表框架；一或两个 3500/15 电源；3500/20 框架接口模块；一或两个3500/25 键相器模块；3500 框架组态软件；一个或多个 3500/32 继电器模块或3500/33 16通道继电器模块；一个或多个 3500/92 通讯网关模块；一个或多个 3500/XX 监测器模块，3500/42M 位移/速度加速度监测器；3500/40M位移监测器；3500/45 差胀/轴向位置监测器；3500/50 转速模块；3500/53 超速检测模块等。3500/XX 监测器模块可接来自bently3300系统的信号，bently3300系统即传感器系统，包括传感器探头，前置器，延伸电缆等。电涡流传感器探头330101，330102，330103，330104，330105，330106，330851，速度传感器和加速度传感器9200，330500等；前置器330180，330780等；延伸电缆330130，330780等。传感器通常安装于机器内部或表面，用于测量轴振动、瓦振、位移、转速、偏心、键相、转速、差胀等。

BENTLY  125768-01 监测设备

The BENTLY 125768-01 is a continuous on-line transformer monitoring device for measuring various parameters of insulating oils in power transformers. Here are some details about the BENTLY 125768-01: Features: The BENTLY 125768-01 continuously monitors critical fault gases, moisture, and temperature in transformer insulation oils. It can detect failures at an early stage so that corrective action can be taken before problems become serious. The BENTLY 125768-01 features a microprocessor-based design that allows for flexible and customizable alert Settings. It has a backlit LCD display that displays live data, and a built-in event log that records alarms and failure events. The device is usually installed in a weatherproof housing and can be connected to a remote control panel or monitoring system. Sensors: The BENTLY 125768-01 uses proprietary gas and humidity sensors to detect the presence of critical fault gases, such as hydrogen and carbon monoxide, as well as the moisture content in transformer oil. It also has a temperature sensor to monitor the oil temperature. Communication: The BENTLY 125768-01 supports a variety of communication protocols, including Modbus, DNP3, and IEC 61850, enabling it to be integrated into existing control and monitoring systems. Power requirements: The device can use AC or DC power supply, low power consumption, less than 10 watts. Applications: The BENTLY 125768-01 is used in a variety of applications, including power generation, transmission and distribution, as well as large industrial facilities using power transformers. Overall, the BENTLY 125768-01 is a powerful and reliable transformer monitoring device that provides continuous monitoring and early detection of transformer failures. Its advanced sensors, flexible alarm and communication functions make it an important part of many power system monitoring and control systems.

bently nevada's bently3500 system provides continuous, in-line monitoring for mechanical protection applications. bently3500 system composition: 3500/05 instrument frame; One or two 3500/15 power supplies; 3500/20 frame interface module; One or two 3500/25 key phaser modules; 3500 framework configuration software; One or more 3500/32 relay modules or 3500/33 16-channel relay modules; One or more 3500/92 communication gateway modules; One or more 3500/XX monitor modules, 3500/42M displacement/velocity acceleration monitors; 3500/40M displacement monitor; 3500/45 differential expansion/axial position monitor; 3500/50 speed module; 3500/53 overspeed detection module, etc. The 3500/XX monitor module can be connected to signals from the bently3300 system, the bently3300 system is a sensor system, including sensor probes, precursors, extension cables, etc. Eddy current sensor probe 330101,330102,330103,330104,330105,330106,330851, speed sensor and acceleration sensor 9200,330500, etc. Preprocessor 330180,330780, etc.; Extension cable 330130,330780, etc. Sensors are usually installed inside or on the surface of the machine to measure shaft vibration, tile vibration, displacement, speed, eccentricity, key phase, speed, differential expansion, etc. In addition, there are 1900 series, such as 1900/65, test, simulation and calibration instruments: such as TK3-2 eddy current probe calibrator, RK 4 rotor test stand, etc.
