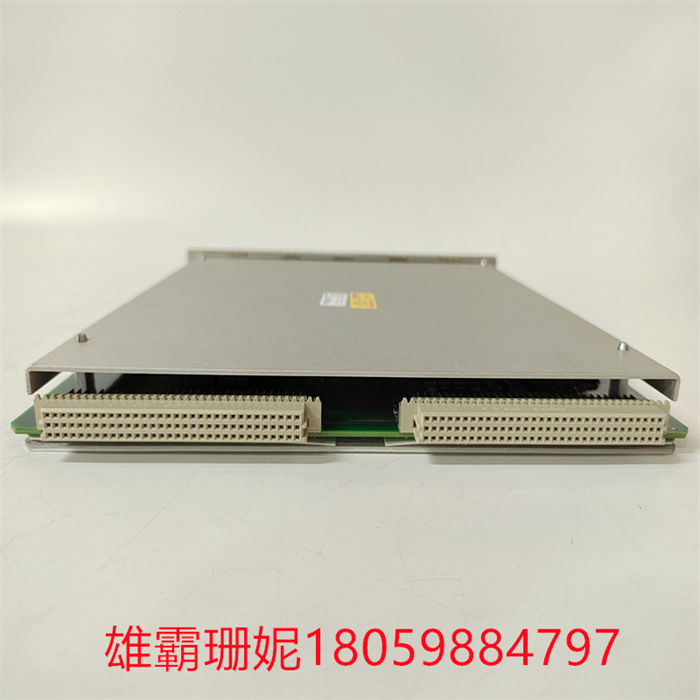

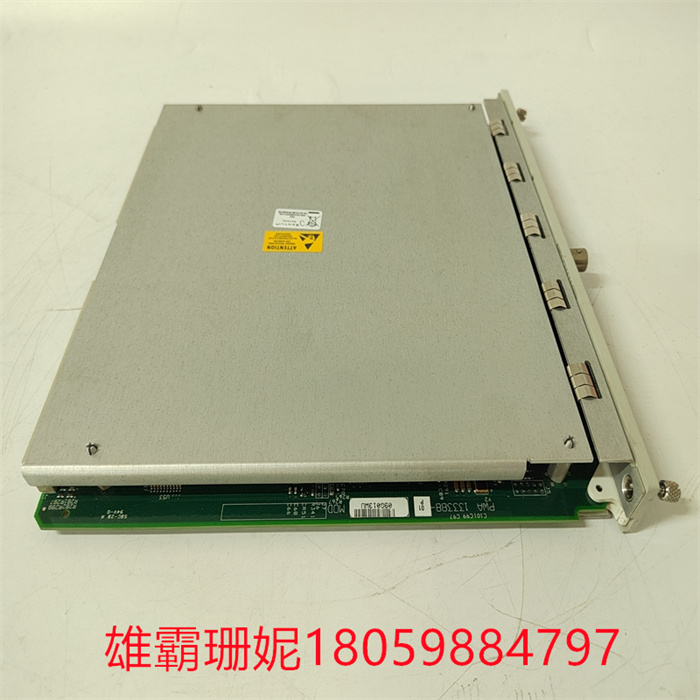

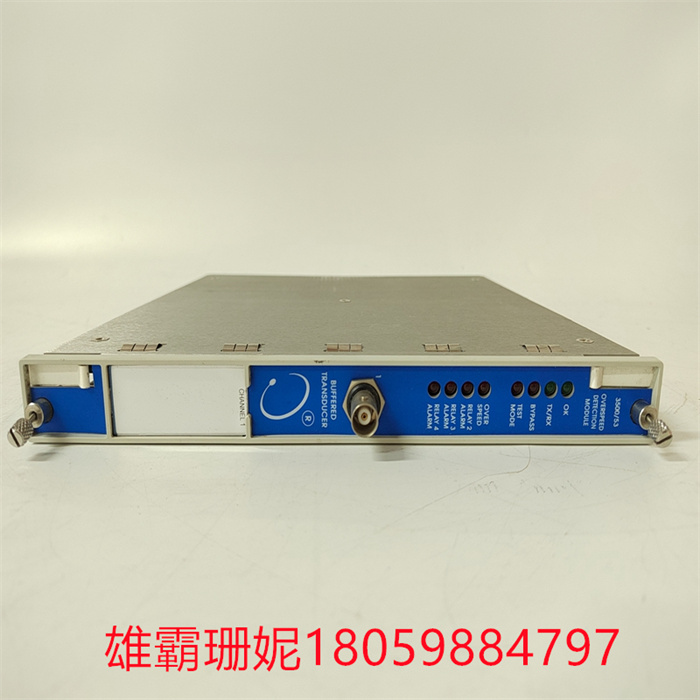

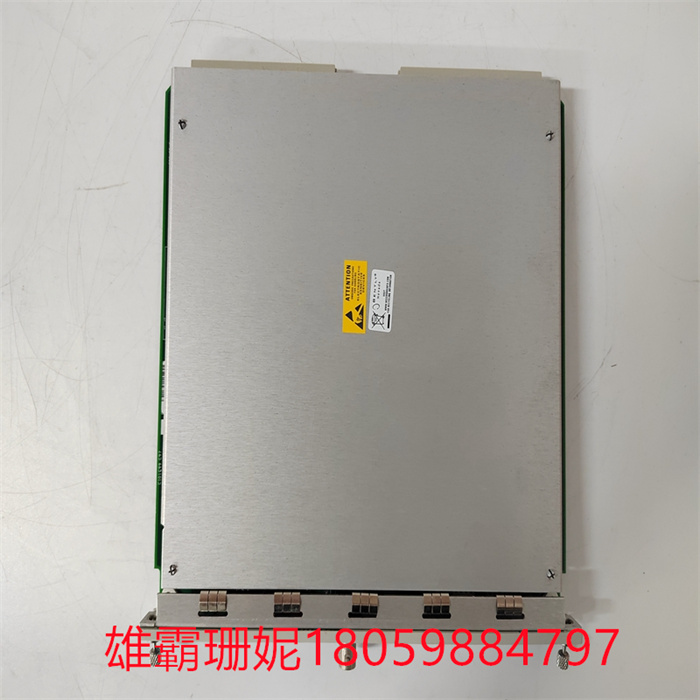

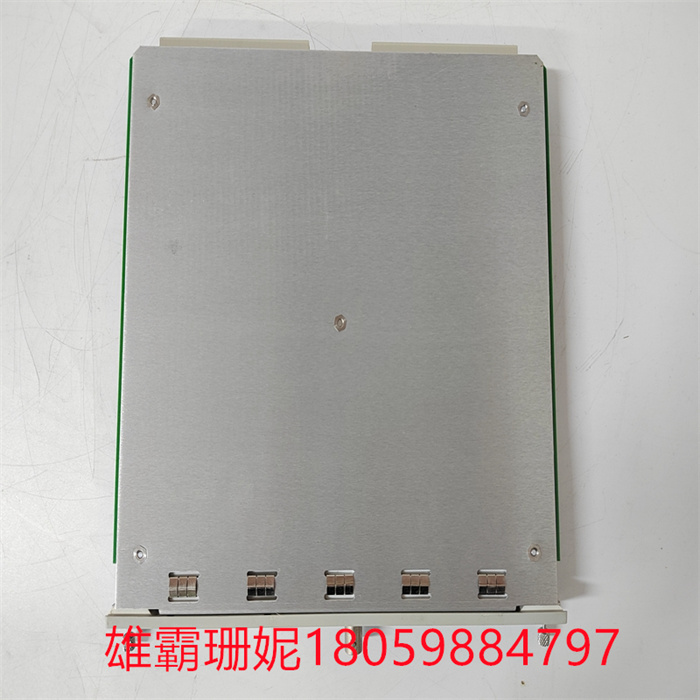

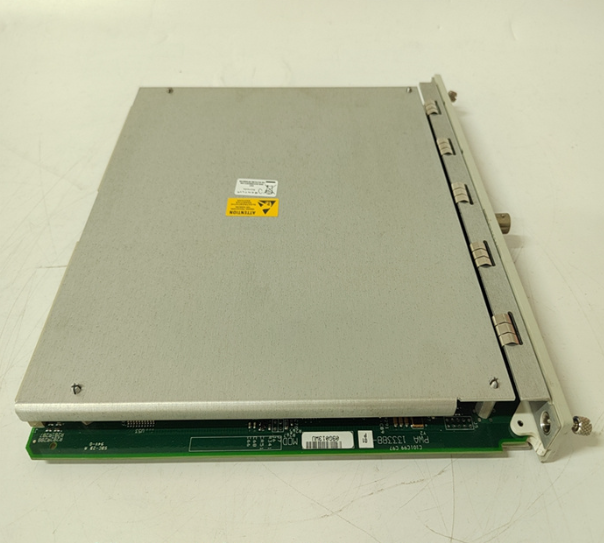

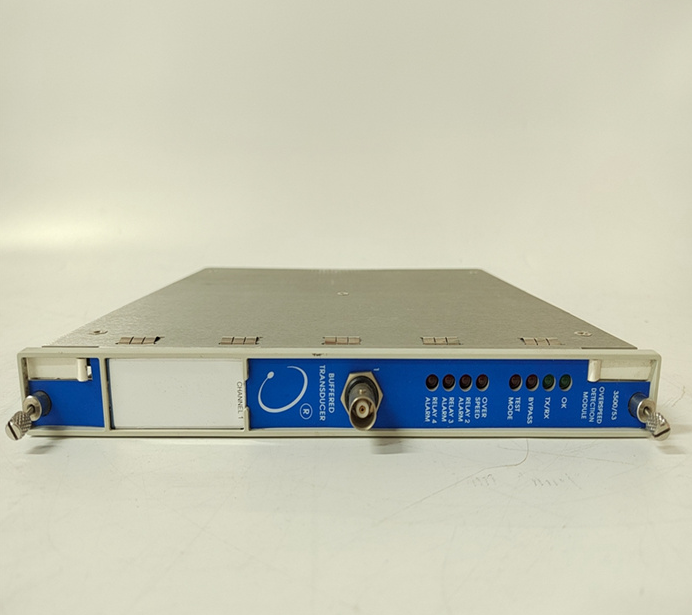

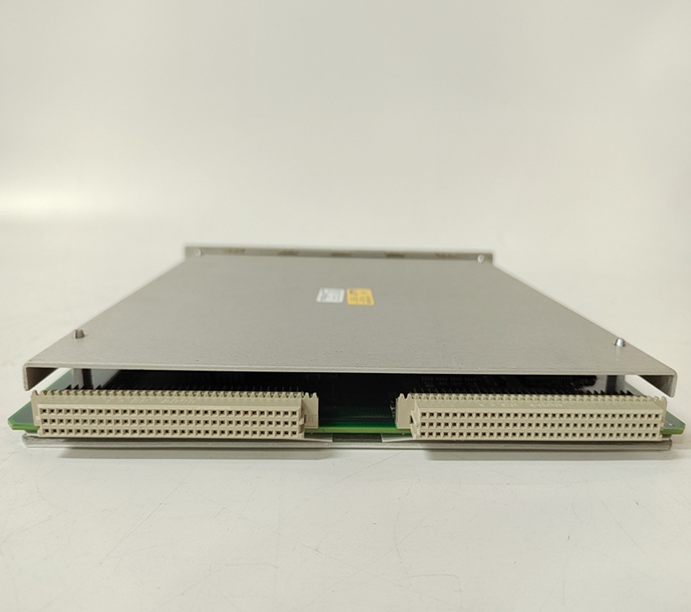

BENTLY 3500/53 133388-01 检测模块

BENTLY  3500/53 133388-01 检测模块

BENTLY  3500/53 133388-01 检测模块

美国本特利（bently nevada）公司的bently3500系统提供连续、在线监测功能，适用于机械保护应用。bently3500系统组成：3500/05 仪表框架；一或两个 3500/15 电源；3500/20 框架接口模块；一或两个3500/25 键相器模块；3500 框架组态软件；一个或多个 3500/32 继电器模块或3500/33 16通道继电器模块；一个或多个 3500/92 通讯网关模块；一个或多个 3500/XX 监测器模块，3500/42M 位移/速度加速度监测器；3500/40M位移监测器；3500/45 差胀/轴向位置监测器；3500/50 转速模块；3500/53 超速检测模块等。3500/XX 监测器模块可接来自bently3300系统的信号，bently3300系统即传感器系统，包括传感器探头，前置器，延伸电缆等。电涡流传感器探头330101，330102，330103，330104，330105，330106，330851，速度传感器和加速度传感器9200，330500等；前置器330180，330780等；延伸电缆330130，330780等。传感器通常安装于机器内部或表面，用于测量轴振动、瓦振、位移、转速、偏心、键相、转速、差胀等。另外还有1900系列，如1900/65，测试、模拟和校准仪器：如TK3-2 电涡流探头校准仪，RK 4 转子试验台等。

3500系统现已满足可靠性要求，可以使用过程失效分析的结果更好地决定所需的3500的配置，各种选项包括:

1.标准系统

2.带冗余电源的标准系统

3.带单一传感器输入(TMRI/O: 母线制)和单一末级元件的TMR3500框架。

4.带单一传感器输入(TMRI/O: 母线制)和TMR末级元件的TMR3500框架。

5.带三重传感器输入(TMRI/O: 分立)和单一末级元件的TMR3500框架。

6.带三重传感器输入(TMR1/O: 分立)和TMR末级元件的TMR3500框架。

为作为TMR系统运行，3500 监测系统必须安装以下模块:

①一个TMR型式的框架接口模块

②两个电源(如果其中一个发现有故障，另一个电源可无间断自动供应全部电力)。

③同一槽内两个键相器模块(如果键相器信号需要)。

④同一槽内两个TMR继电器模块(如果需要)

⑤相邻槽内的三个同类型监测器模块。

⑥相邻槽内2~3个通讯通路模块(如果与外设通讯时需要)。

BENTLY  3500/53 133388-01 检测模块

bently nevada's bently3500 system provides continuous, in-line monitoring for mechanical protection applications. bently3500 system composition: 3500/05 instrument frame; One or two 3500/15 power supplies; 3500/20 frame interface module; One or two 3500/25 key phaser modules; 3500 framework configuration software; One or more 3500/32 relay modules or 3500/33 16-channel relay modules; One or more 3500/92 communication gateway modules; One or more 3500/XX monitor modules, 3500/42M displacement/velocity acceleration monitors; 3500/40M displacement monitor; 3500/45 differential expansion/axial position monitor; 3500/50 speed module; 3500/53 overspeed detection module, etc. The 3500/XX monitor module can be connected to signals from the bently3300 system, the bently3300 system is a sensor system, including sensor probes, precursors, extension cables, etc. Eddy current sensor probe 330101,330102,330103,330104,330105,330106,330851, speed sensor and acceleration sensor 9200,330500, etc. Preprocessor 330180,330780, etc.; Extension cable 330130,330780, etc. Sensors are usually installed inside or on the surface of the machine to measure shaft vibration, tile vibration, displacement, speed, eccentricity, key phase, speed, differential expansion, etc. In addition, there are 1900 series, such as 1900/65, test, simulation and calibration instruments: such as TK3-2 eddy current probe calibrator, RK 4 rotor test stand, etc.

The 3500 system now meets the reliability requirements, and the results of process failure analysis can be used to better determine the desired configuration of the 3500, with various options including:

1. Standard system

2. Standard system with redundant power supply

3. TMR3500 frame with single sensor input (TMRI/O: bus system) and single end-stage element.

4. TMR3500 frame with single sensor input (TMRI/O: bus system) and TMR final-stage element.

5. TMR3500 frame with triple sensor input (TMRI/O: discrete) and single end-stage element.

6. TMR3500 frame with triple sensor input (TMR1/O: discrete) and TMR final element.

In order to operate as a TMR system, the 3500 monitoring system must have the following modules installed:

① A frame interface module of TMR type

(2) Two power supplies (if one of them is found to be faulty, the other power supply can automatically supply all power without interruption).

③ Two key phase modules in the same slot (if the key phase signal is required).

④ Two TMR relay modules in the same slot (if required)

⑤ Three monitor modules of the same type in adjacent slots.

⑥ 2 to 3 communication path modules in adjacent slots (if necessary for communication with peripherals).
